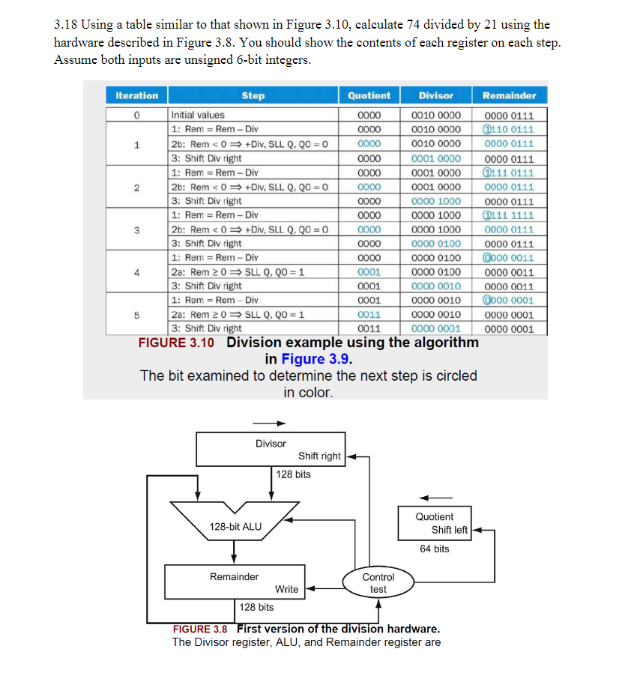

$3\mathrm{.}18$ Using a table similar to that shown in Figure $3\mathrm{.}10,$ calculate $74$ divided by $21$ using the

hardware described in Figure $3\mathrm{.}8.$ You should show the contents of each register on each step.

Assume both inputs are unsigned $6-$bit integers.

FIGURE $3\mathrm{.}10$ Division example using the algorithm

in Figure $3\mathrm{.}9.$ Make sure $74$ and $21$ and displayed correct

The bit examined to determine the next step is circled

in color.
