Question: 3 - 1 9 . Determine the force in members GF , FC , and C D of the cantilever truss. State if the members

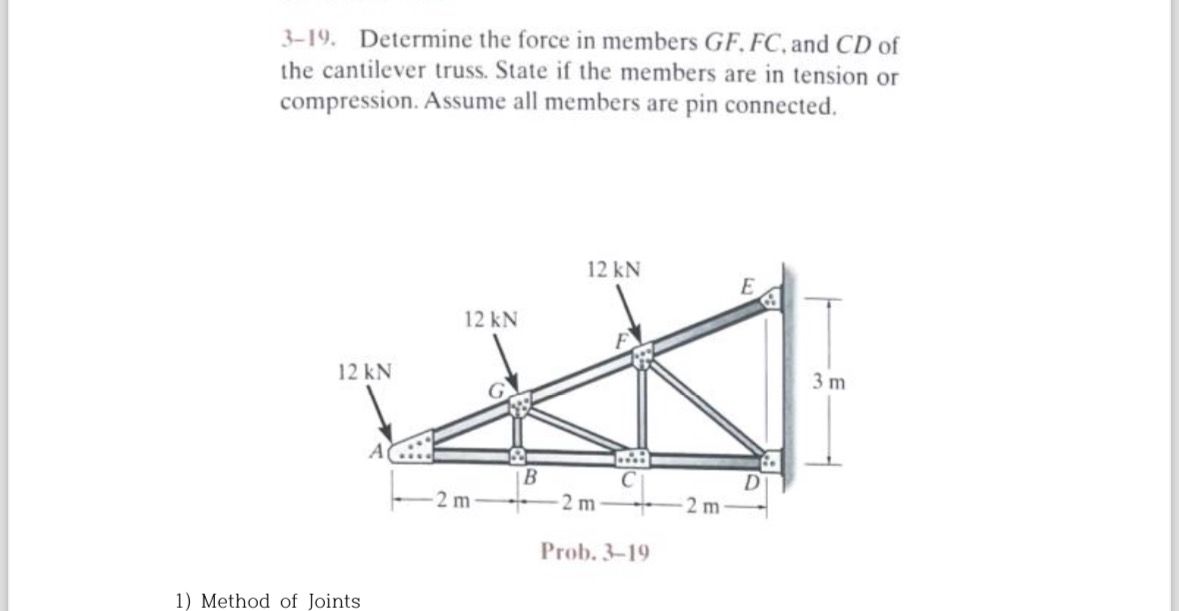

3-19. Determine the force in members GF,FC, and CD of the cantilever truss. State if the members are in tension or compression. Assume all members are pin connected.
Method of Joints
"Not method of sections"
3 - 1 9 . Determine the force in members GF , FC

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
