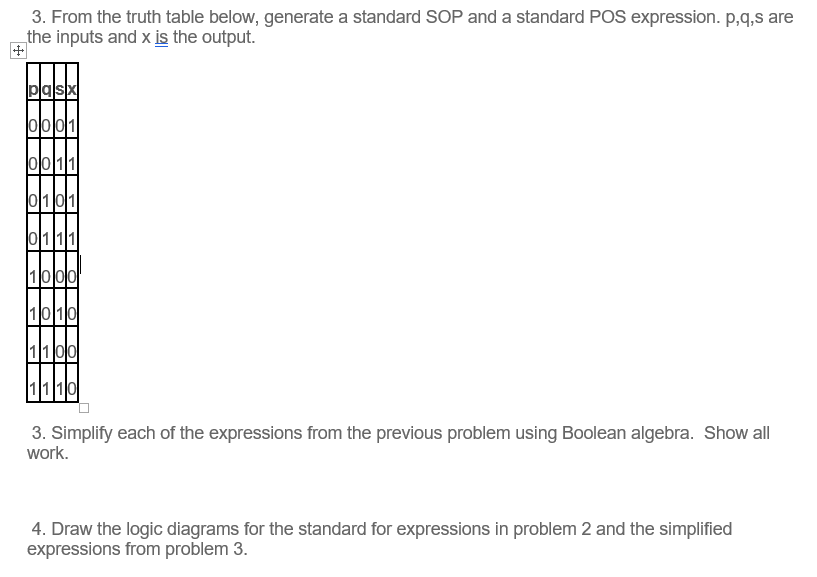

3. From the truth table below, generate a standard SOP and a standard POS expression. p,q,s are the inputs and x is the output. 3.

image text in transcribed

3. From the truth table below, generate a standard SOP and a standard POS expression. p,q,s are the inputs and x is the output. 3. Simplify each of the expressions from the previous problem using Boolean algebra. Show all work. 4. Draw the logic diagrams for the standard for expressions in problem 2 and the simplified expressions from problem 3
