$4\mathrm{.}5$Your Name, Week $4$ Database PA

All Addresses in the Database

Address $1$:

$123$ Apple Tree Ln

Fremont, NC $23145$

Address $2$:

$321$ Labrador Dr

Apt $5$

Greenville, VA $54321$

Address $3$:

$916$ Spring Grove St

Unit $3$

Spring, TX $73915$

Address $4$:

$739$ Green Way

Flynt$,$ MI $28537$

Get an Address Using an Invalid ID

Address $-1$:

$,-1$

Updated Address

Address $2$:

$321$ Labrador St

Apt $12$

Greendale, TN $20194$

All Addresses in the Database

Address $1$:

$123$ Apple Tree Ln

Fremont, NC $23145$

Address $3$:

$916$ Spring Grove St

Unit $3$

Spring, TX $73915$

Address $4$:

$739$ Green Way

Flynt$,$ MI $28537$ create the C# code based on the requirements provided below.

Your application will demonstrate storing and retrieving data in a SQLite database by creating software classes that create a database with one table and perform CRUD $($Create$,$ Read, Update, Delete$)$ operations on data in that table. The data table will represent addresses and will store information typically associated with mailing addresses. Incorporate the following requirements into your application:

For all classes provide the following

Documentation at the top of the class file that includes

Your name

Date of development

Assignment $($e$.$g$.,$ CIS$317$ Performance Assessment $-$ Database$)$

Description of the class

Address information to store must include the following:

ID $($primary key$)$

Street Address $1($e$.$g$.,123$ Main Street$)$

Street Address $2($e$.$g$.,$ Suite $102)$

City

State

Zip Code $(5-$digit, e$.$g$.,12345)$

Create classes to perform the following:

Create or connect to a SQLite database

Interact with the Addresses database table

Create the table if it does not exist

Add a record to the table

Read a single record from the table

Read all records from the table

Update a record in the database

Delete a record from the database

Model or represent the data stored in the Addresses table

The main application must do the following

Print a line that states "Your Name $-$ Week $4$ Database PA$"$

Connect to the database or create it with the name "YourName.db$"($replacing "YourName" with your actual name$)$ if it doesn't exist

Create the Addresses table if it doesn't exist

Add $4$ records to the addresses table, some with address line $2$ information and some without $($i$.$e$.$ just an empty string$)$

Print the addresses in the database as follows, preceded by a line indicating you're printing all addresses in the database $($see sample output for an example$)$:

Header stating "Address :$"$ where ID is the ID of the address record

Street address part $1$

Street address part $2,$ if it is not blank

City, State, Zip Code

Print the result of trying to retrieve an address from the database using an invalid ID$,$ preceded by a line indicating you're printing an address retrieved using an invalid ID

Update an address and print the updated address, preceded by a line indicating you're printing an updated record

Delete an address followed by printing all the records in the database, preceded by an appropriate header

Data stored and specific implementation of the classes is up to your discretion $-$ your verbiage DOES NOT have to match the wording in the example output. Feel free to be creative with it$.$

Reminder:

You will need to add support to the C# project for using SQLite as follows:

Open a command prompt at the project folder $($using the same techniques used to open a

command prompt for running an application$)$

Enter the following command and press Enter:

dotnet add package System.Data.SQLite $--$version $1\mathrm{.}0\mathrm{.}116$

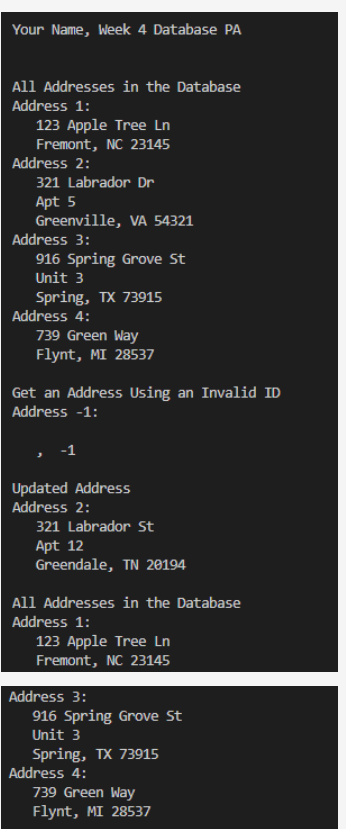

Sample Output:
