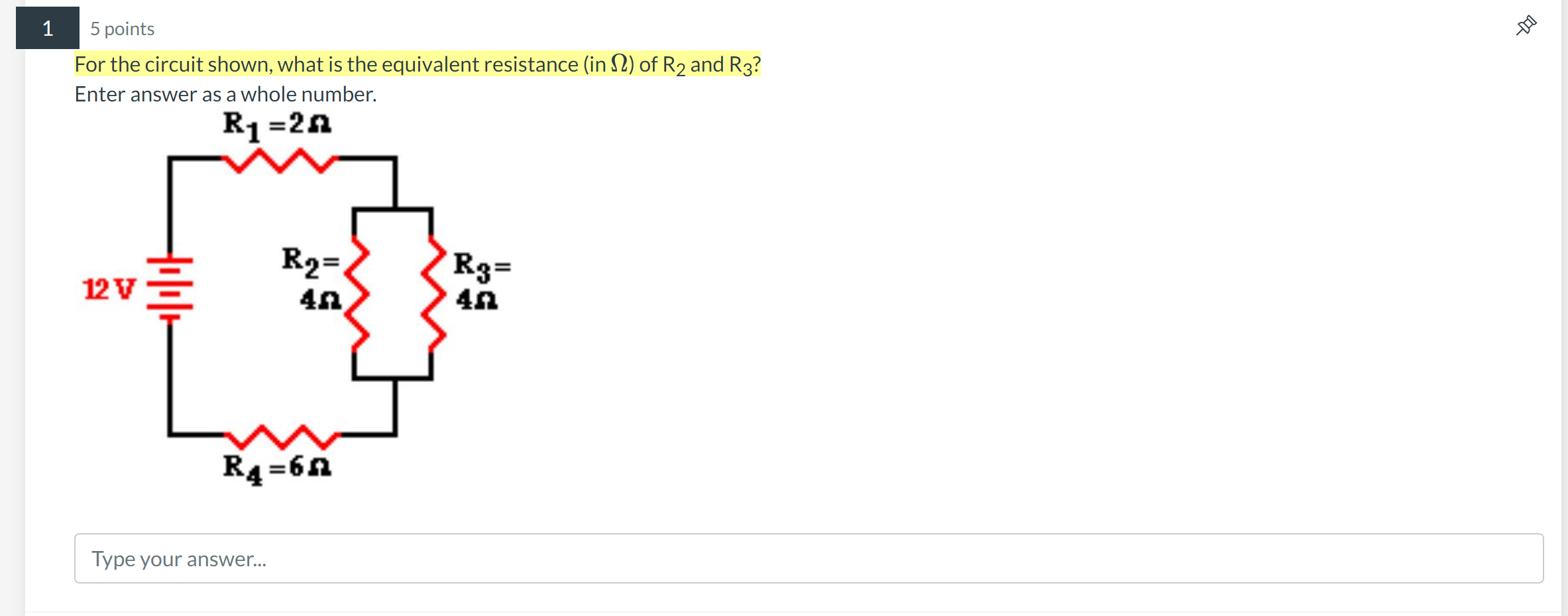

5 points For the circuit shown, what is the equivalent resistance (in Q) of R2 and R3? Enter answer as a whole number. R1=2n R2:

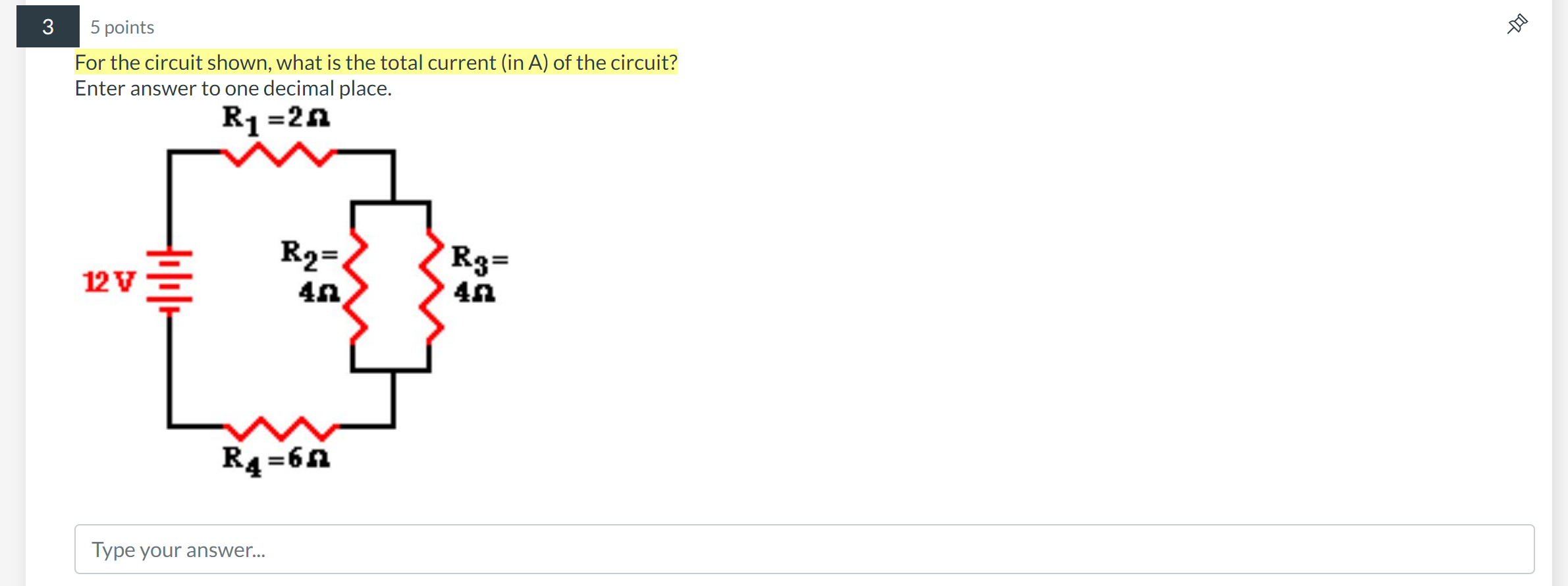

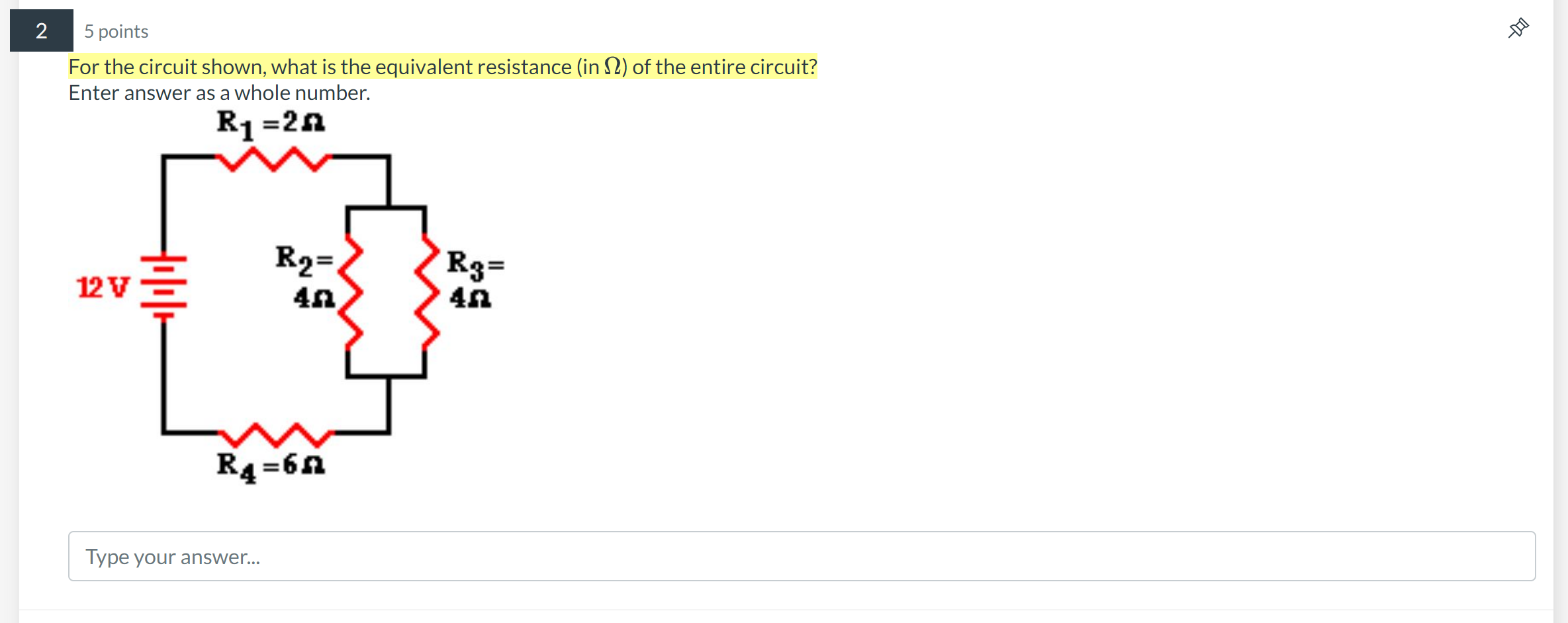

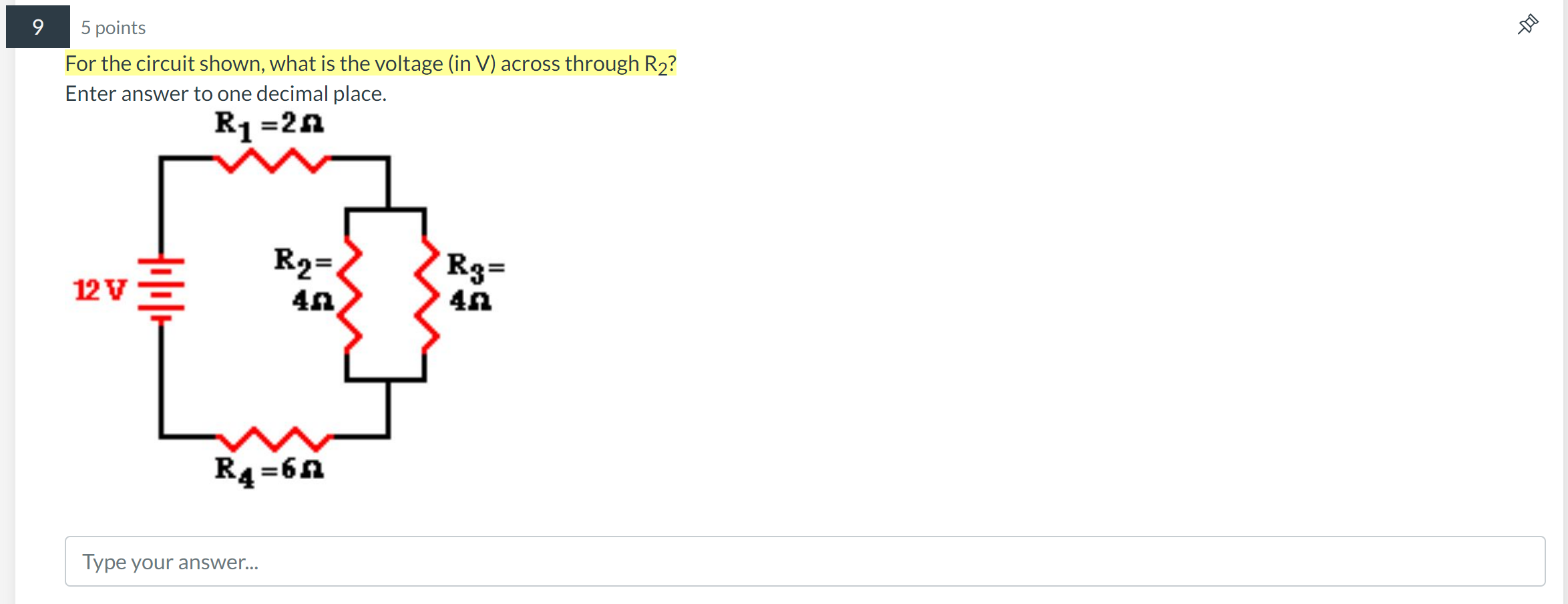

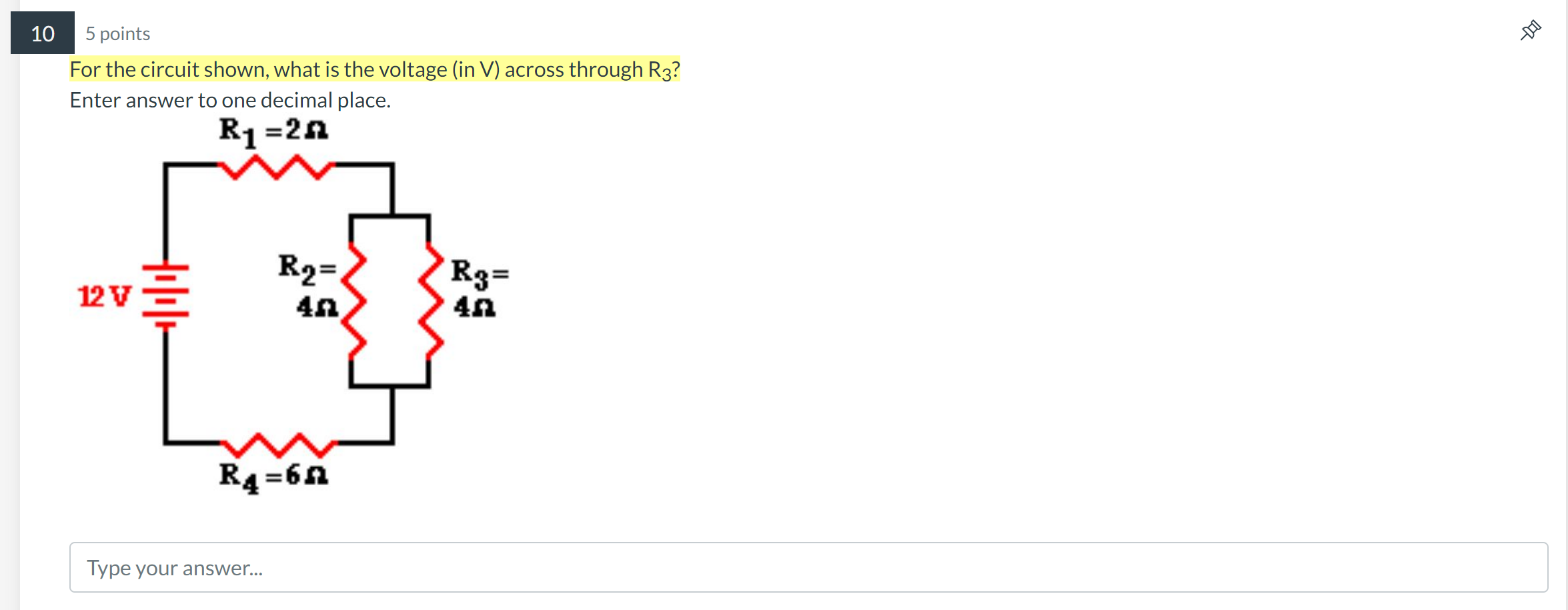

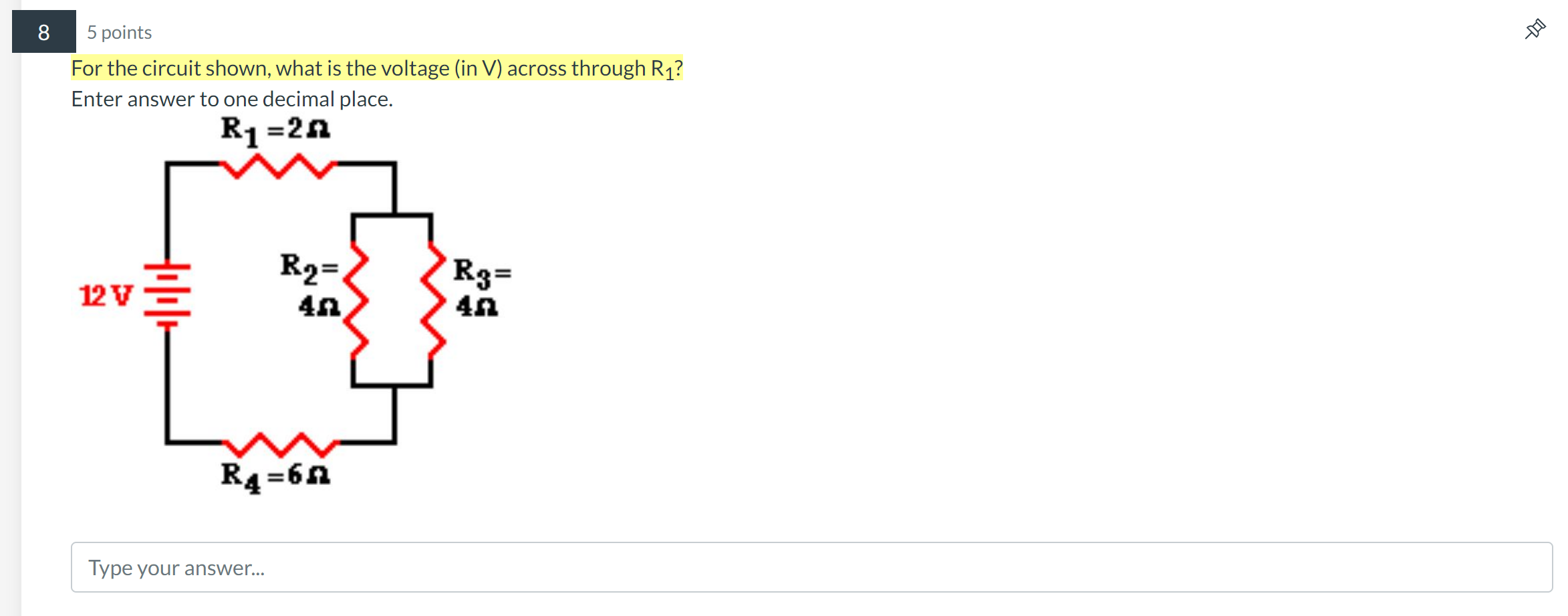

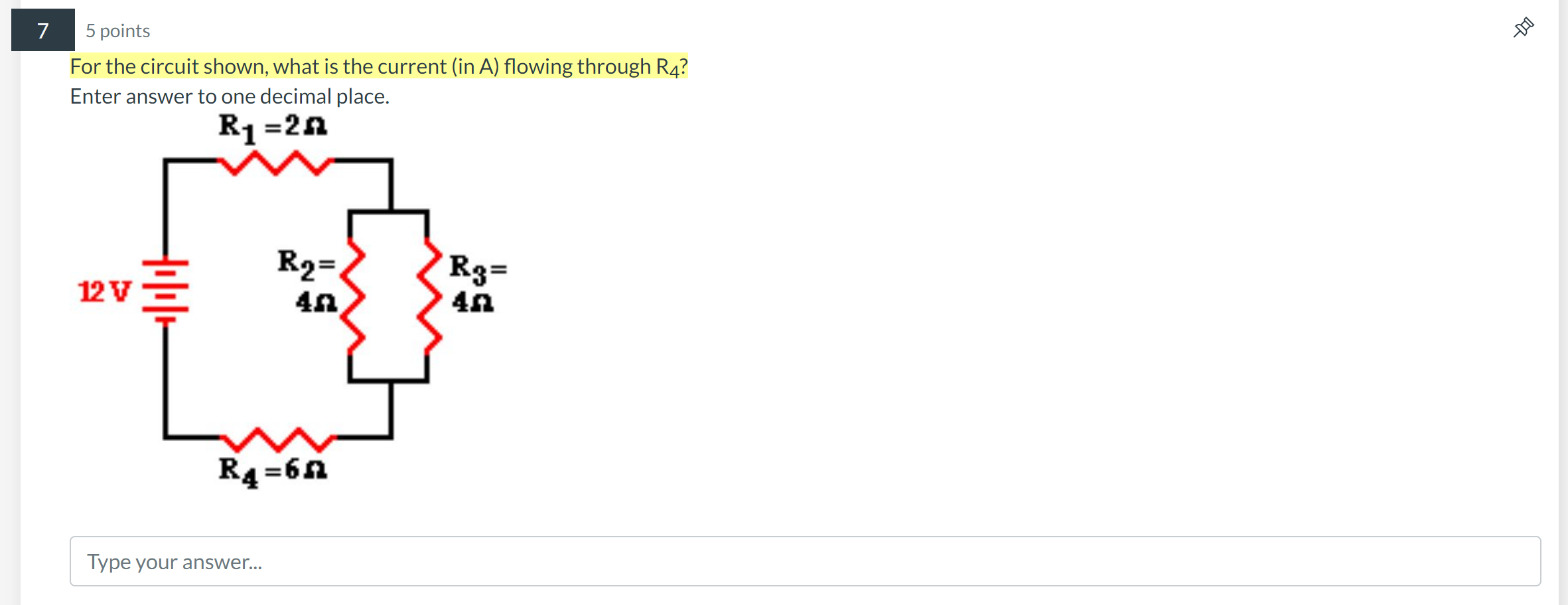

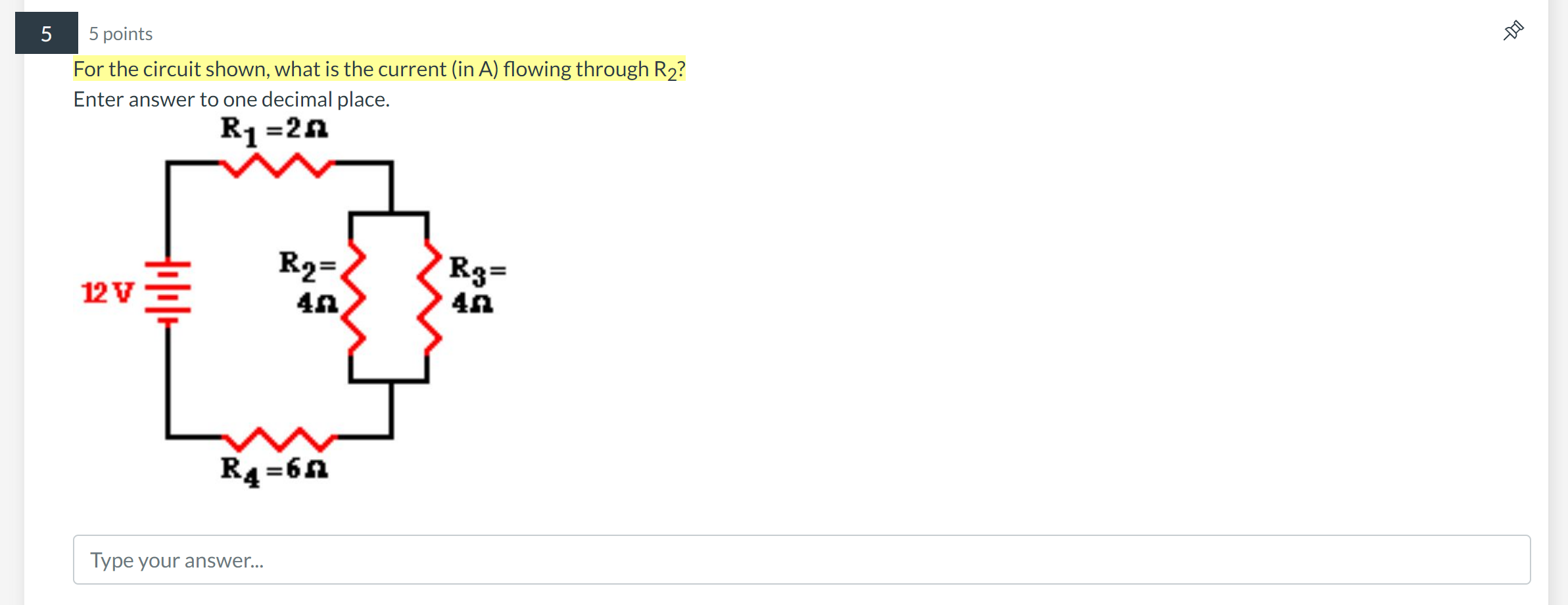

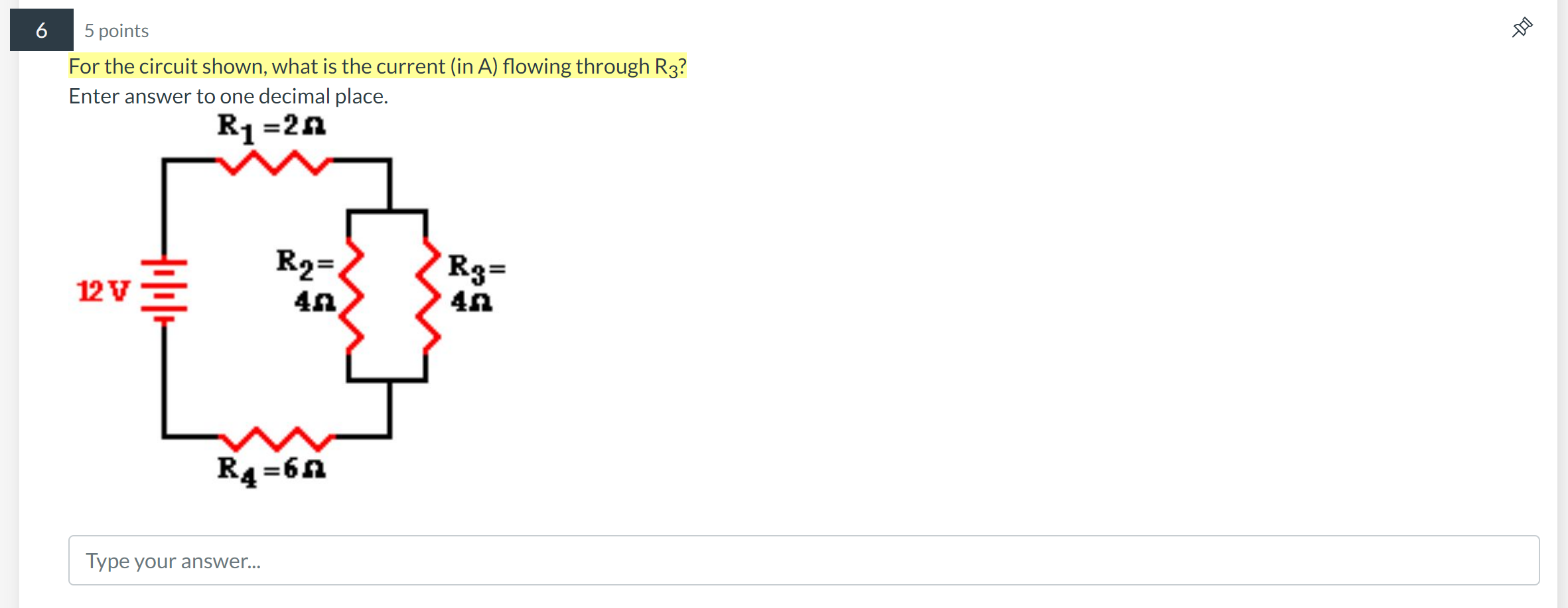

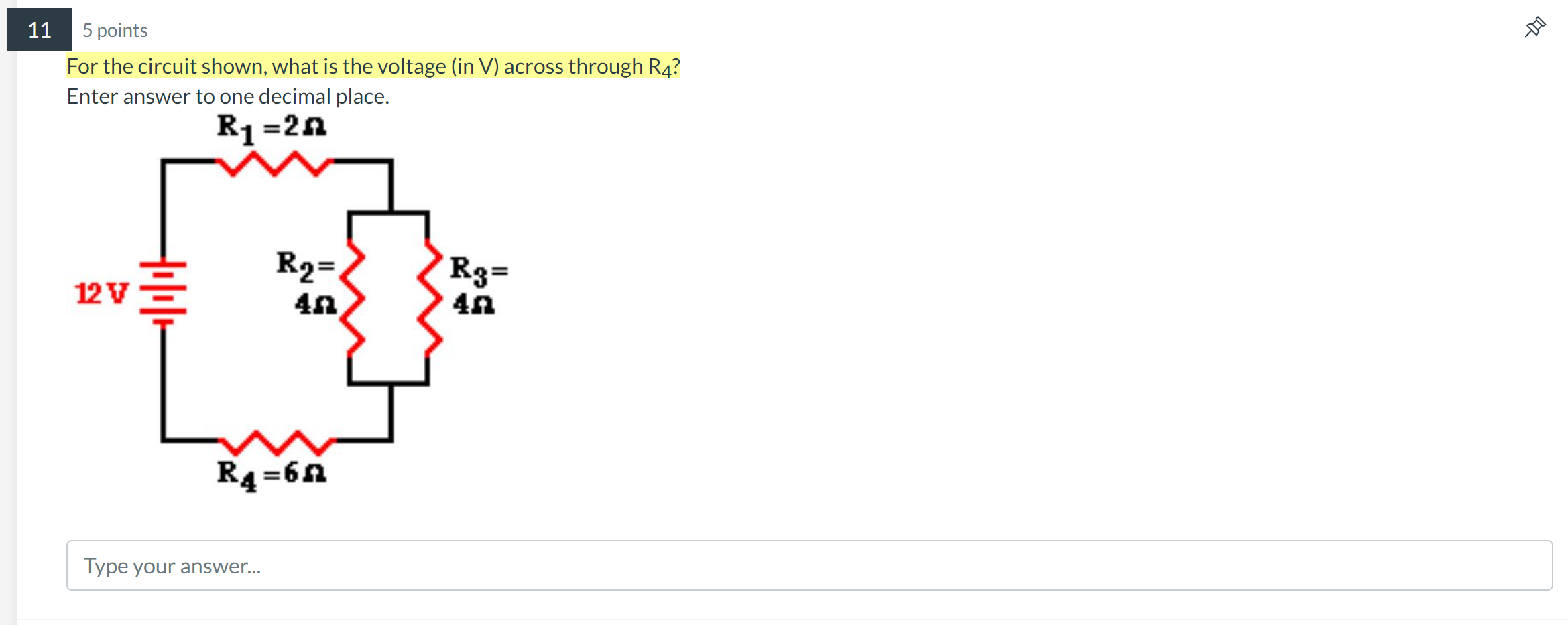

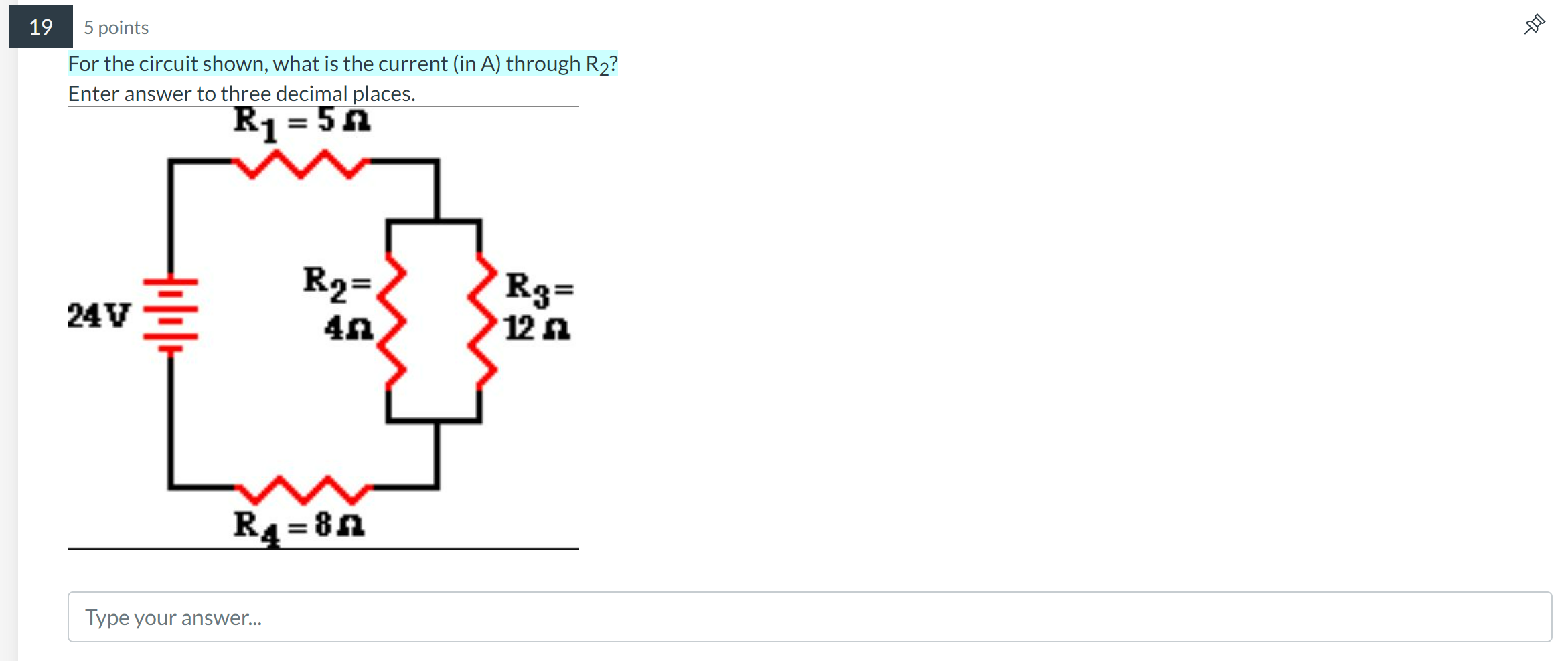

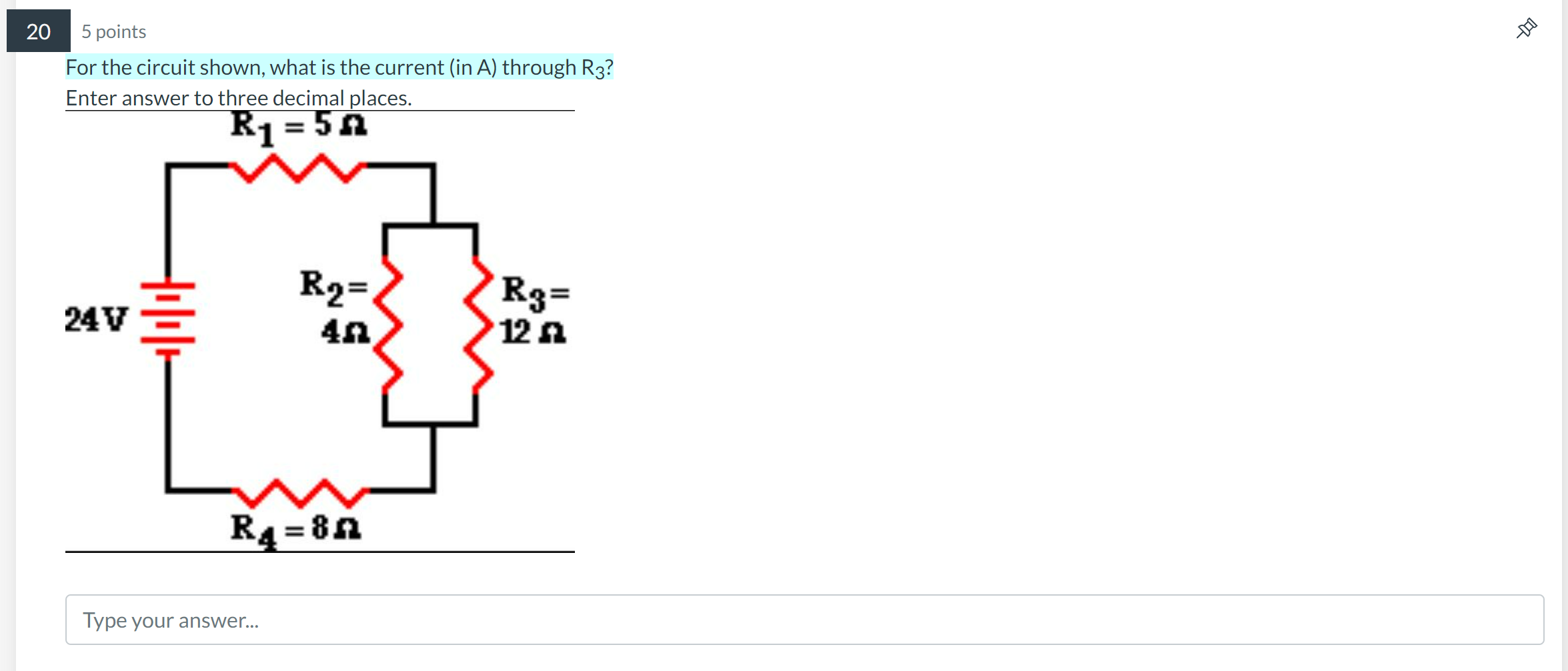

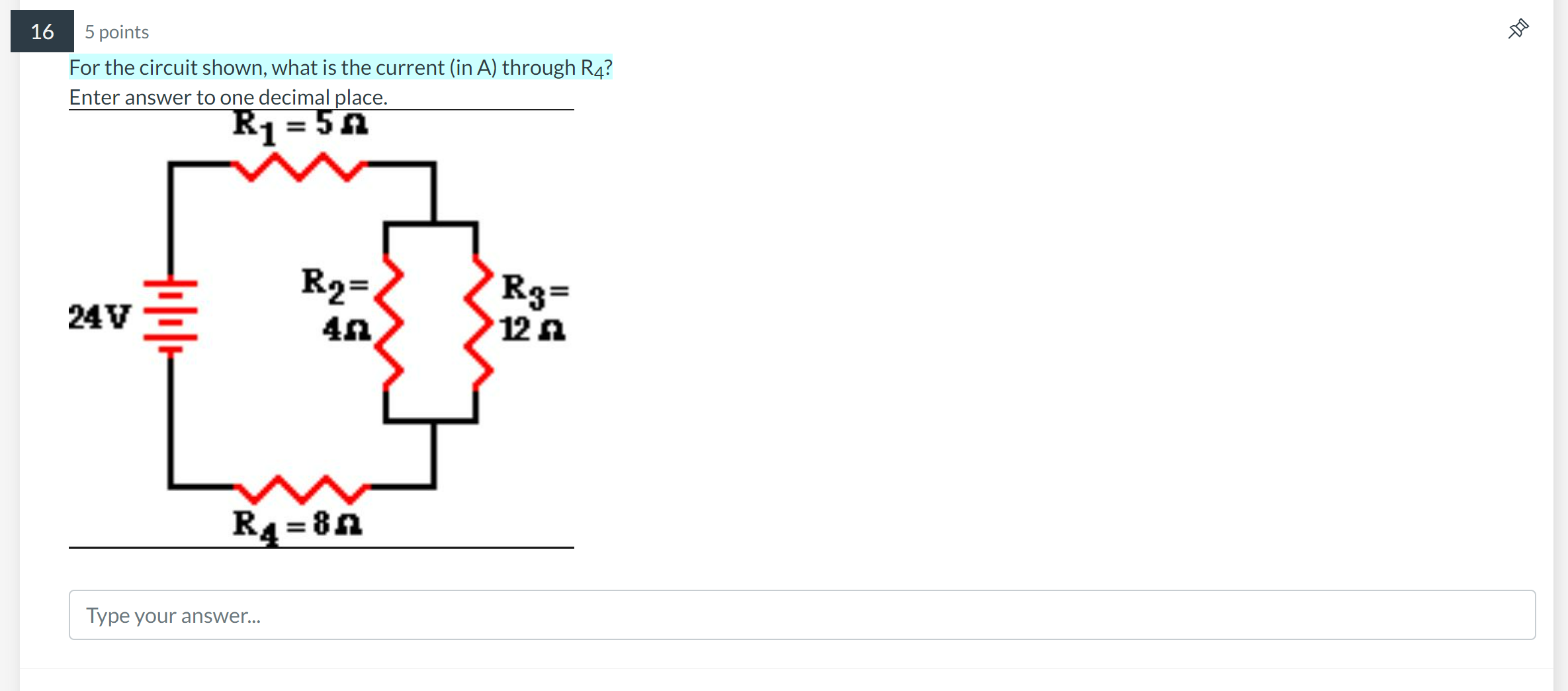

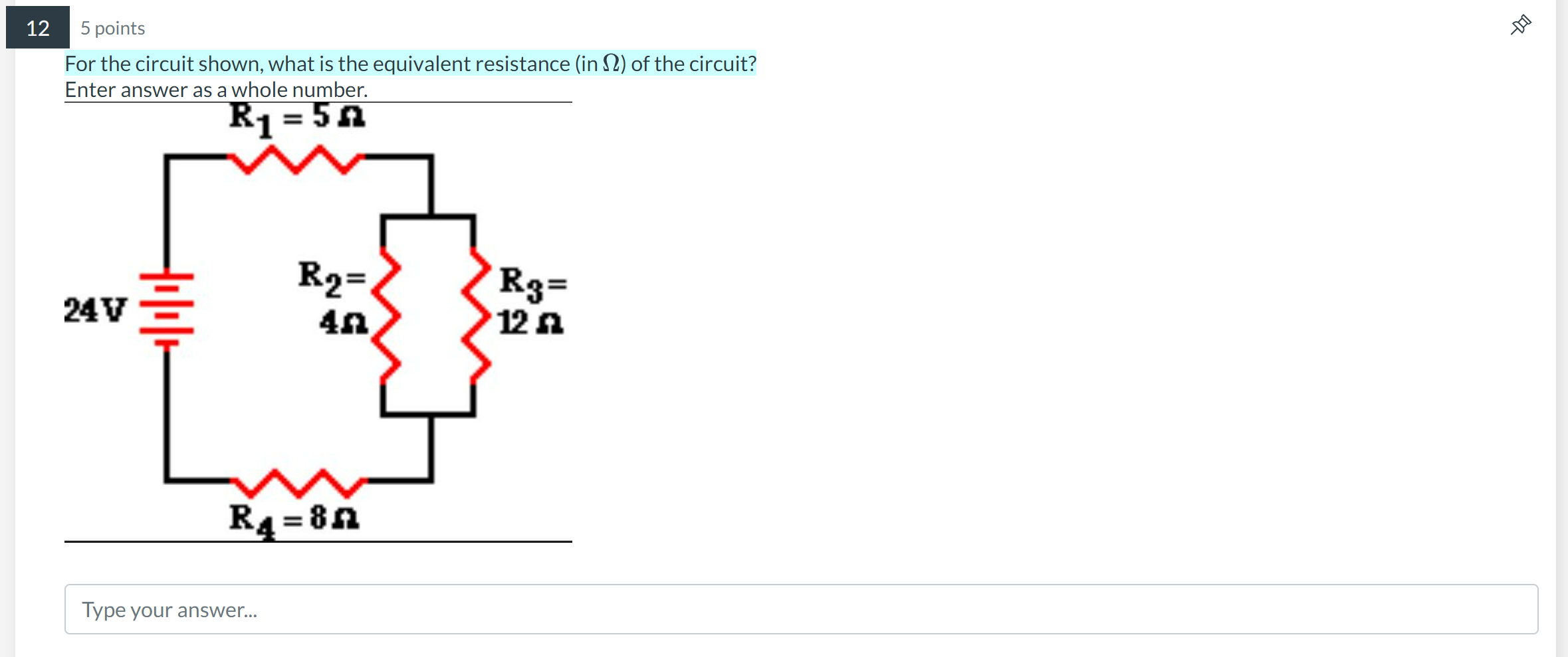

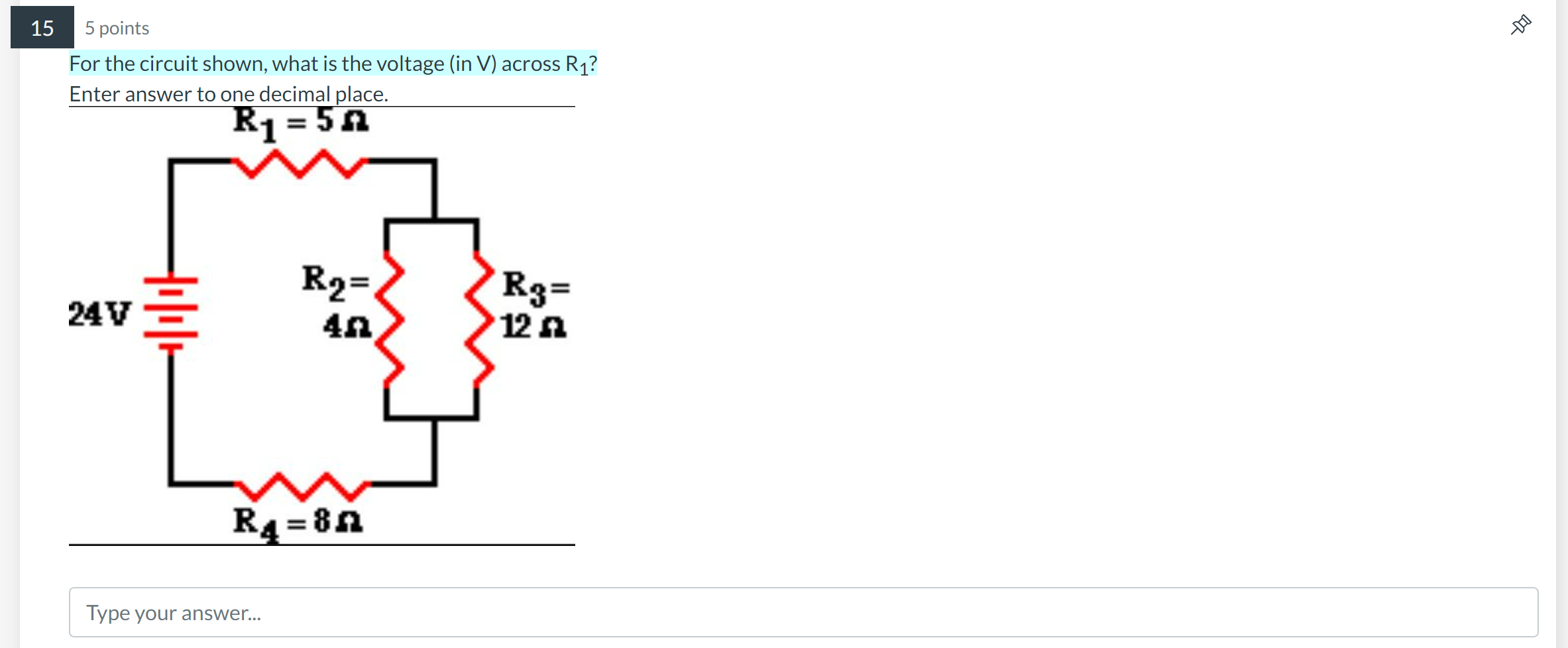

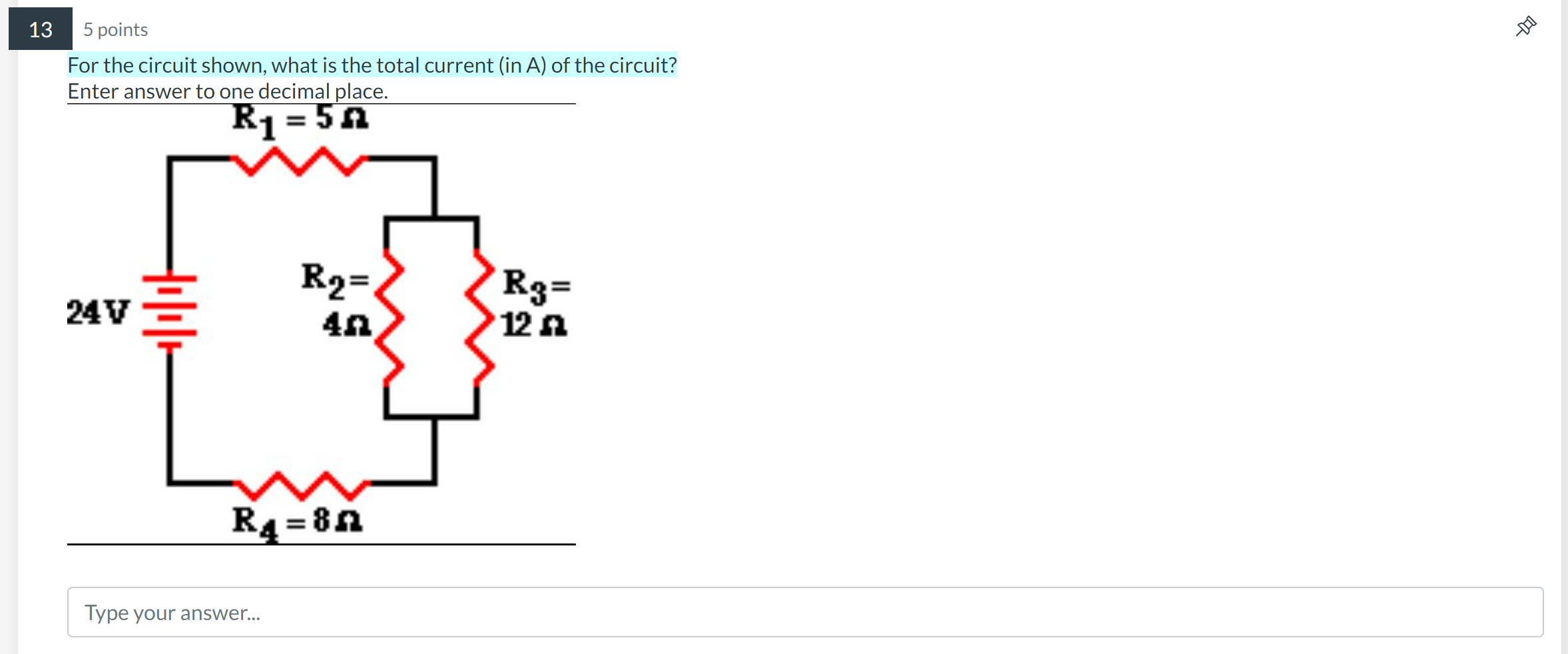

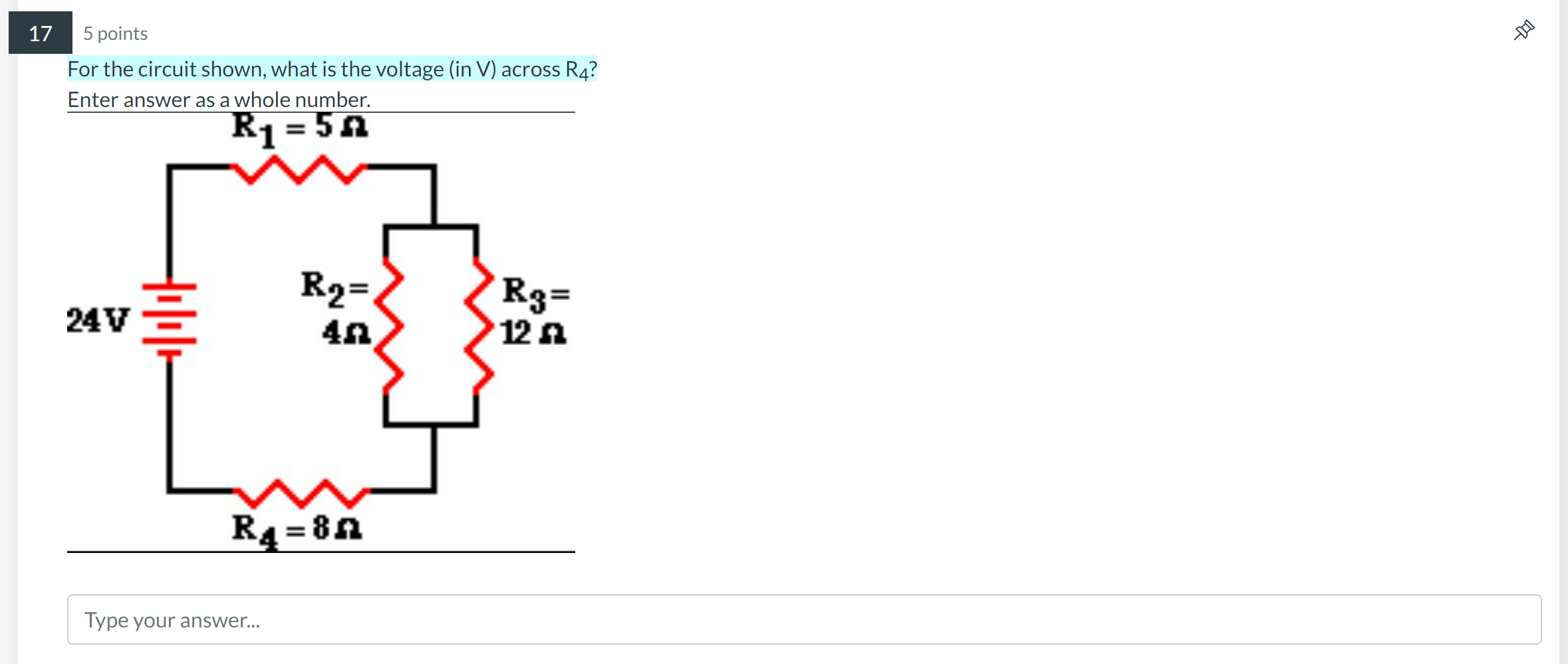

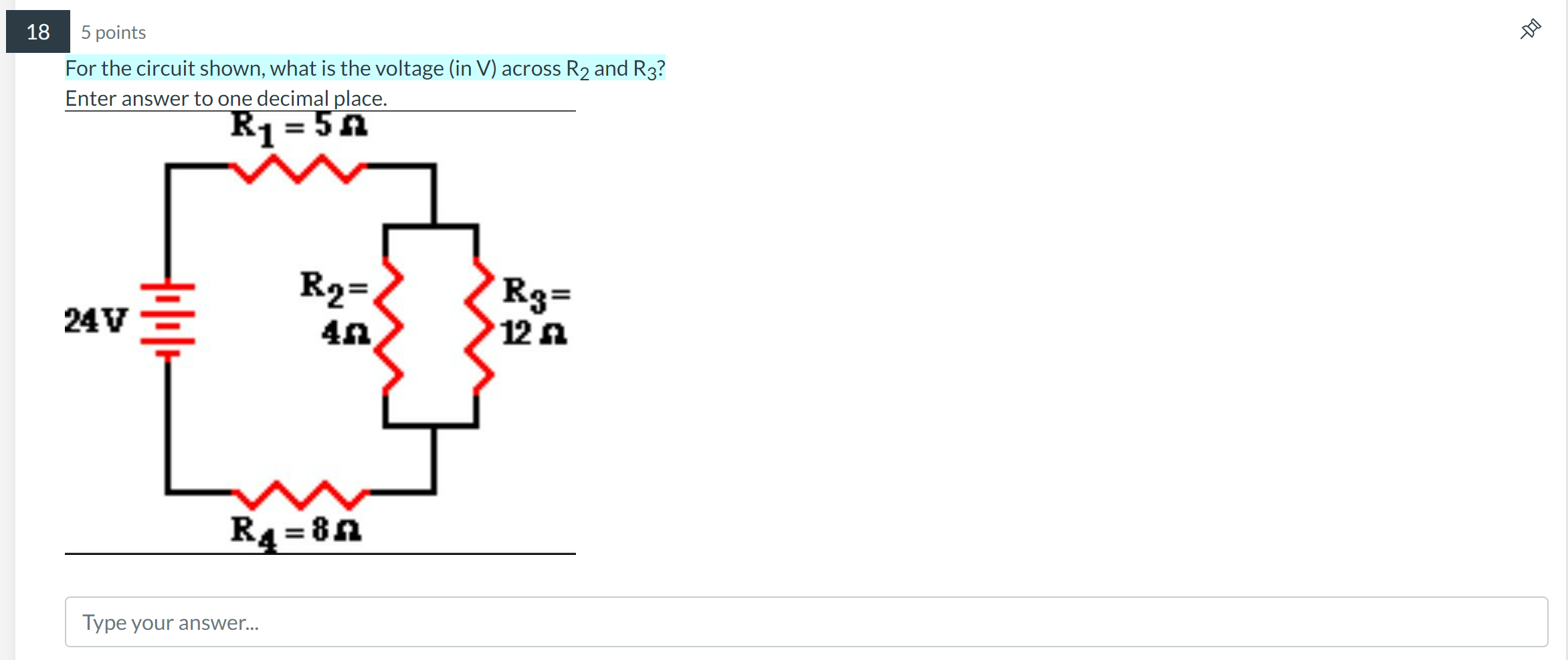

5 points For the circuit shown, what is the equivalent resistance (in Q) of R2 and R3? Enter answer as a whole number. R1=2n R2: R = ; 3 12V ; 4:: 4n R4=sn Type your answer... 5 points For the circuit shown, what is the equivalent resistance (in Q) of the entire circuit? Enter answer as a whole number. R1 :21: R2: R3: 12" 3 4n 4:: R4 :6\" Type your answer... 5 points For the circuit shown, what is the total current (in A) of the circuit? Enter answer to one decimal place. R1 =2\" _ R2: R3: 12" E 4:: 4:: R4 :6\" Type your answer... 5 points For the circuit shown, what is the current (in A) owing through R1? Enter answer to one decimal place. R1 :21: R2: R = L 3 12" L. 4:: 4n R4=6n Type your answer". 5 points For the circuit shown, what is the current (in A) owing through R2? Enter answer to one decimal place. R1 :21: _ R2: R3: 12" 3 4:: 4n R4=6n Type your answer... n 5 points For the circuit shown, what is the current (in A) owing through R3? Enter answer to one decimal place. R1 =29. R2: R = _-._ 3 12V .; 4:1 4:1 R4=6n Type your answer... 5 points For the circuit shown, what is the current (in A) owing through R4? Enter answer to one decimal place. R1 =2\" R2: R = L 3 12" L 4:: 4n R4=6n Type your answer... 8 5 points For the circuit shown, what is the voltage (in V) across through R1? Enter answer to one decimal place. R1 =20 R2= 12 V 40 R4=60 Type your answer... 5 points For the circuit shown, what is the voltage (in V) across through R2? Enter answer to one decimal place. R1 =28 _ R2: R3: 12" 3 4:: an R4=sn Type your answer... 5 points For the circuit shown, what is the voltage (in V) across through R3? Enter answer to one decimal place. R1 :21: R2: R = ; 3 12V ; 4n 4:: R4=6n Type your answer... 5 points For the circuit shown, what is the voltage (in V) across through R4? Enter answer to one decimal place. R1 :21: _ R2= R3: 12" E 4:: 4n R4=6n Type your answer.\" 5 points For the circuit shown, what is the equivalent resistance (in Q) of the circuit? Enter answer as a whole number. R1=5n Type your answer... 5 points For the circuit shown, what is the total current (in A) of the circuit? Enter answer to one decimal place. R1=Sn Type your answer\". 5 points For the circuit shown, what is the current (in A) through R1? Enter answer to one decimal place. R1=58 Type your answer... 5 points For the circuit shown, what is the voltage (in V) across R1? Enter answer to one decimal place. R1=5n Type your answer\". 5 points For the circuit shown, what is the current (in A) through R4? Enter answer to one decimal place. R1=Sn Type your answer... 5 points For the circuit shown, what is the voltage (in V) across R4? Enter answer as a whole number. R1=5n Type your answer... 5 points For the circuit shown, what is the voltage (in V) across R2 and R3? Enter answer to one decimal place. R1=5n Type your answer\". 5 points For the circuit shown, what is the current (in A) through R2? Enter answer to three decimal places. R1=Sn Type your answer... 5 points For the circuit shown, what is the current (in A) through R3? Enter answer to three decimal places. R1=5n Type your
Step by Step Solution
There are 3 Steps involved in it
Step: 1
