8 . 1 . Determine the analytical expression for a step set point change in the following processes under P - only and PI feedback

8.1. Determine the analytical expression for a step set point change in the following processes under P-only and PI feedback control. You should select values for the tuning constant that give acceptable performance.
(a) Example 3.1 with CA as the controlled variable, CA0 as the manipulated variable, and ????SP=0.1molem3.
(b) Example 3.7 with T as the controlled variable, F as the manipulated variable, and ????SP=3C.(F6 is constant.)
(c) Example 3.3 with CA2 as the controlled variable, CA0 as the manipulated variable, and SP=0.05molem3.

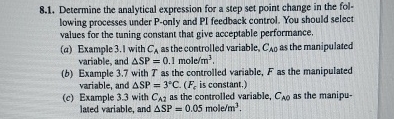

image text in transcribed
