A crane is lifting a system with a constant speed. The weight of each object is shown. Neglect the mass of the cables. Note that

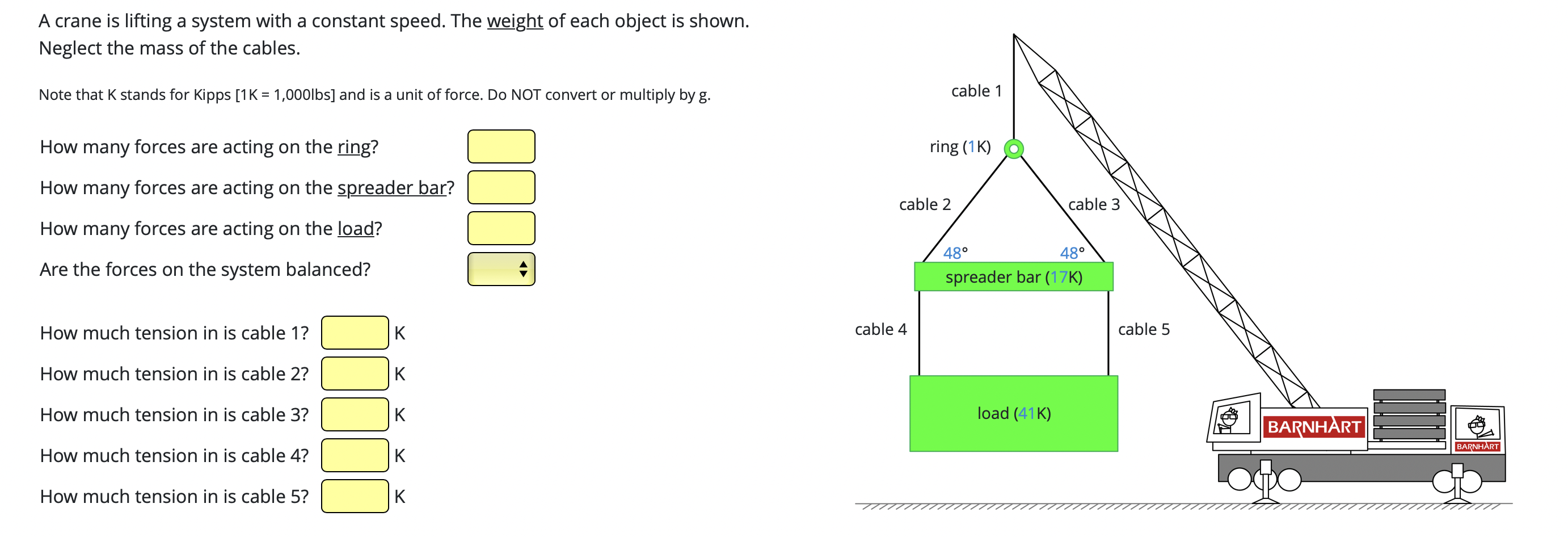

A crane is lifting a system with a constant speed. The weight of each object is shown. Neglect the mass of the cables. Note that K stands for Kipps [1K = 1,000lbs] and is a unit of force. Do NOT convert or multiply by g. cable 1 How many forces are acting on the ring? ring (1K) (O How many forces are acting on the spreader bar? cable 2 cable 3 How many forces are acting on the load? 480 480 Are the forces on the system balanced? spreader bar (17K) How much tension in is cable 1? K cable 4 cable 5 How much tension in is cable 2? K How much tension in is cable 3? K load (41K) BARNHART How much tension in is cable 4? K BARNHART How much tension in is cable 5? K
