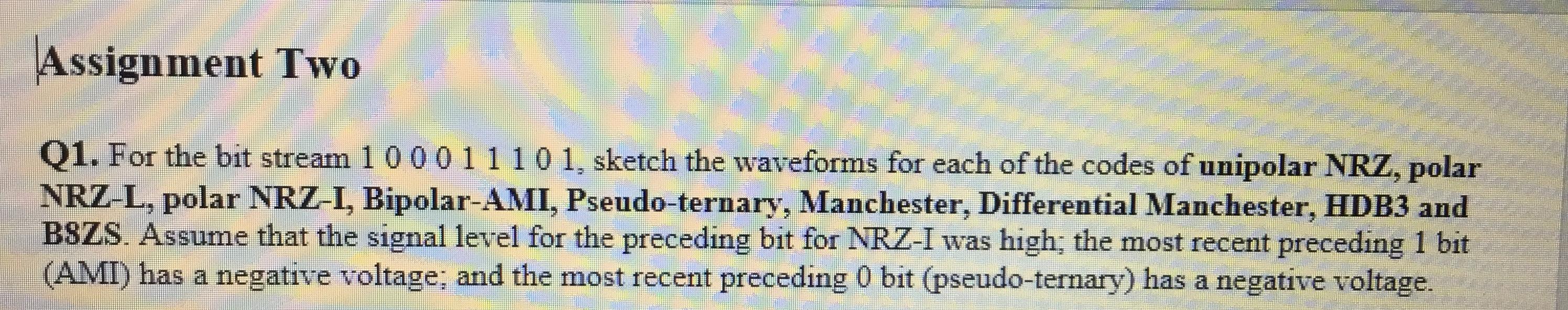

Assignment Two Q 1 . For the bit stream 1 0 0 0 1 1 1 0 1 , sketch the waveforms for each of
Assignment Two
Q For the bit stream sketch the waveforms for each of the codes of unipolar NRZ polar NRZL polar NRZI, BipolarAMI, Pseudoternary, Manchester, Differential Manchester, HDB and BSZS Assume that the signal level for the preceding bit for NRZI was high; the most recent preceding bit AMI has a negative voltage; and the most recent preceding bit pseudoternary has a negative voltage.
