1. C# assignment (as C# code)

   Classes, Objects and Inheritance

   Assignment Objectives

   Be able to derive a class from an existing class

   Be able to define a class hierarchy in which methods are overridden and fields are hidden

   Be able to use derived-class objects

   Requirements: In this assignment, you will be creating new classes that are derived from a class called BankAccount. A checking account is a bank account and a savings account is a bank account as well. This sets up a relationship called inheritance, where BankAccount is the superclass and CheckingAccount and SavingsAccount are subclasses.

   This relationship allows CheckingAccount to inherit attributes from BankAccount (like owner, balance, and accountNumber, but it can have new attributes that are specific to a checking account, like a fee for clearing a check. It also allows CheckingAccount to inherit methods from BankAccount, like deposit, that are global for all bank accounts.

   You will write a withdraw method in CheckingAccount that overrides the withdraw method in BankAccount, in order to do something slightly different than the original withdraw method. You will use an instance variable called accountNumber in SavingsAccount to hide the accountNumber variable inherited from BankAccount.

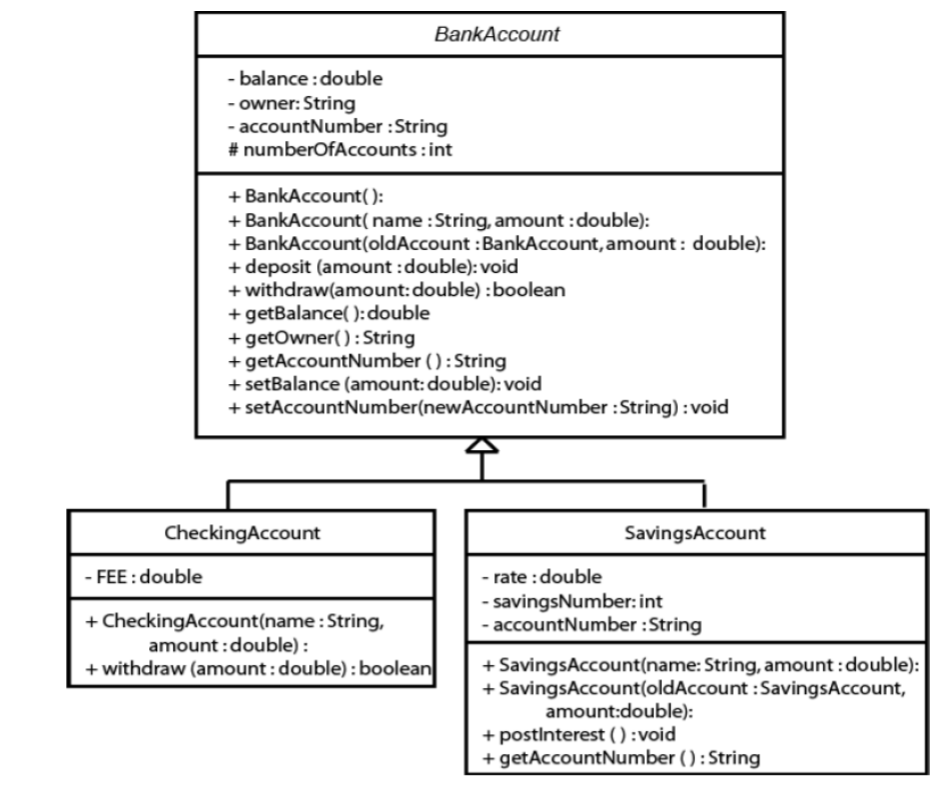

   The UML diagram for the inheritance relationship is as follows:



   Task #1 Extending the BankAccount Class (as C# code)

   1. Create a new class called BankAccount see UML diagram above

   2. Create a new class called CheckingAccount that extends BankAccount.

   3. It should contain a static constant FEE that represents the cost of clearing one check. Set it equal to 15 cents.

   4. Write a constructor that takes a name and an initial amount as parameters. It should call the constructor for the superclass. It should initialize accountNumber to be the current value in accountNumber concatenated with 10 (All checking accounts at this bank are identified by the extension 10). There can be only one checking account for each account number.

   5. Write a new instance method, withdraw, that overrides the withdraw method in the superclass. This method should take the amount to withdraw, add to it the fee for check clearing, and call the withdraw method from the superclass. Remember that to override the method, it must have the same method heading. Notice that the withdraw method from the superclass returns true or false depending if it was able to complete the withdrawal or not. The method that overrides it must also return the same true or false that was returned from the call to the withdraw method from the superclass.

   6. Compile and debug this class.

   Task #2 Creating a Second Subclass (as C# code)

   1. Create a new class called SavingsAccount that extends BankAccount.

   2. It should contain an instance variable called rate that represents the annual interest rate. Set it equal to 2.5%.

   3. It should also have an instance variable called savingsNumber, initialized to 0. In this bank, you have one account number, but can have several savings accounts with that same number. Each individual savings account is identified by the number following a dash. For example, 100001-0 is the first savings account you open, 100001-1 would be another savings account that is still part of your same account. This is so that you can keep some funds separate from the others, like a Fitness club account.

   4. An instance variable called accountNumber, that will hide the accountNumber from the superclass, should also be in this class.

   5. Write a constructor that takes a name and an initial balance as parameters and calls the constructor for the superclass. It should initialize accountNumber to be the current value in the superclass accountNumber (the hidden instance variable) concatenated with a hyphen and then the savingsNumber.

   6.Write a method called postInterest that has no parameters and returns no value. This method will calculate one month's worth of interest on the balance and deposit it into the account.

   7. Write a method that overrides the getAccountNumber method in the superclass.

   8. Write a copy constructor that creates another savings account for the same person. It should take the original savings account and an initial balance as parameters. It should call the copy constructor of the superclass, and assign the savingsNumber to be one more than the savingsNumber of the original savings account. It should assign the accountNumber to be the accountNumber of the superclass concatenated with the hyphen and the savingsNumber of the new account.

   9. Compile and debug this class.

   10. If you named and created your classes and methods correctly, you should not have any difficulties. You must make your classes work with this program.

   11. Running the program should give the following output:

   Account Number 100001-10 belonging to Benjamin Franklin

   Initial balance = $1000.00

   After deposit of $500.00, balance = $1500.00

   After withdrawal of $1000.00, balance = $499.85

   Account Number 100002-0 belonging to William Shakespeare

   Initial balance = $400.00

   After deposit of $500.00, balance = $900.00

   Insufficient funds to withdraw $1000.00, balance = $900.00

   After monthly interest has been posted, balance = $901.88

   Account Number 100002-1 belonging to William Shakespeare

   Initial balance = $5.00

   After deposit of $500.00, balance = $505.00

   Insufficient funds to withdraw $1000.00, balance = $505.00

   Account Number 100003-10 belonging to Isaac Newton

BankAccount - balance:double owner:String accountNumber :String # numberOfAccounts: int +BankAccount): + BankAccount( name String, amount :double): + BankAccount(oldAccount :BankAccount,amount: double): + deposit (amount :double):void +withdraw(amount:double): boolean +getBalance):double +getOwner) String +getAccountNumber ) String +setBalance (amount:double): void + setAccountNumber(newAccountNumber :String):void CheckingAccount SavingsAccount - FEE: double - rate double savingsNumber:int accountNumber :String +CheckingAccount(name:String, amount:double) withdraw (amount:double): booleanSavingsAccount(name: String, amount: double) +SavingsAccount(oldAccount:SavingsAccount, amount:double): postinterest ():void +getAccountNumber ():String
