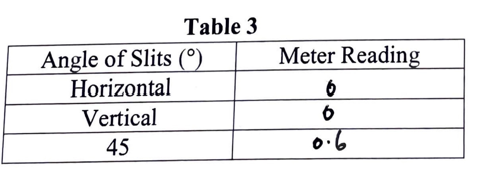

Can you explain the results in Table 3. How can the insertion of an additional polarizer increase the signal level at the detector? (HINT: Construct a diagram like that shown in Figure 2 showing (1) the wave from the Transmitter; (2) the wave after it passes through the Polarizer; and (3) the component detected at the detector diode.)

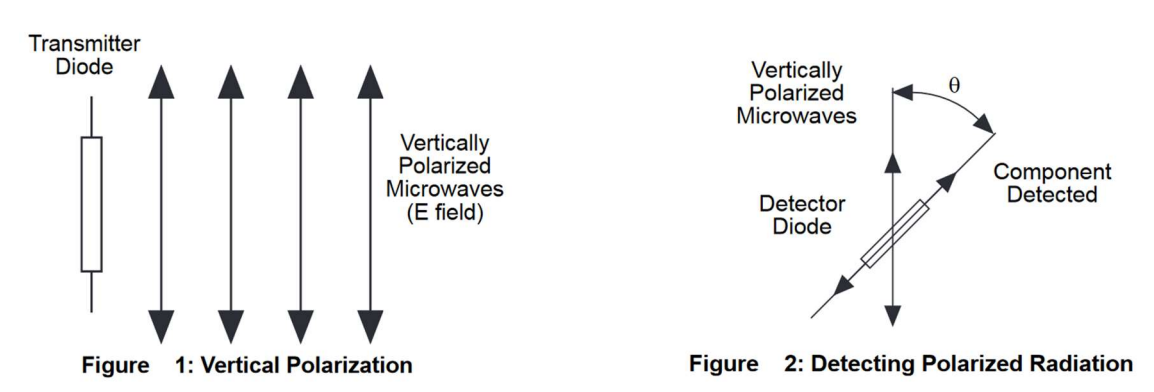

Transmitter Diode Vertically Polarized Microwaves Vertically Polarized Component Microwaves Detected (E field) Detector Diode Figure 1: Vertical Polarization Figure 2: Detecting Polarized Radiation
