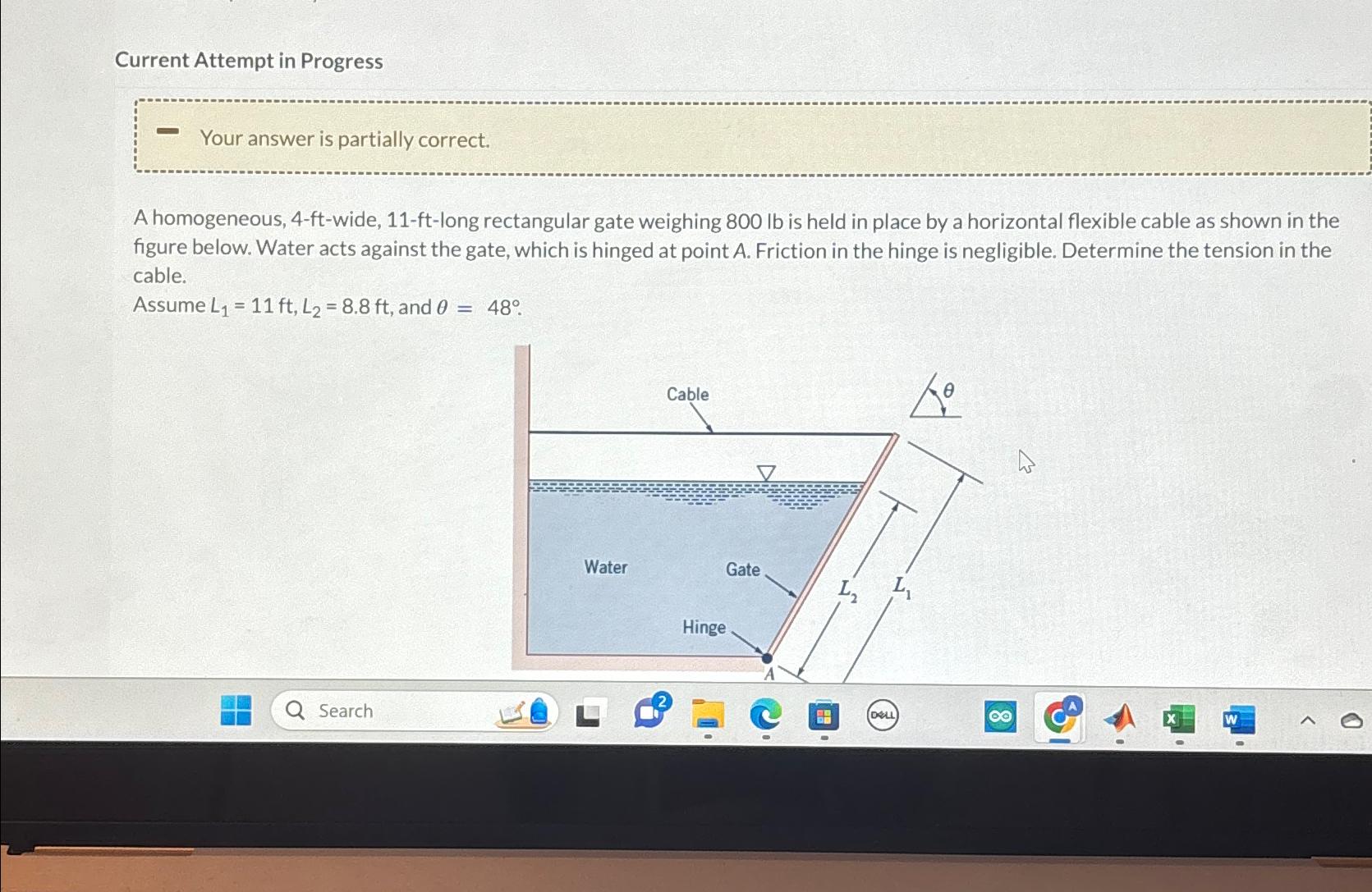

Current Attempt in Progress Your answer is partially correct. A homogeneous, 4-ft-wide, 11-ft-long rectangular gate weighing 800 lb is held in place by a horizontal flexible cable as shown in the figure below. Water acts against the gate, which is hinged at point A. Friction in the hinge is negligible. Determine the tension in the cable. =1 Assume L = 11 ft, L2 = 8.8 ft, and 0 = 48 Search Water Cable Hinge Gate DELL 8 W
