digital logic Design a combinational circuit with three inputs, x, y, and z, and three outputs, A, B, and C. When the binary input is

digital logic image text in transcribed

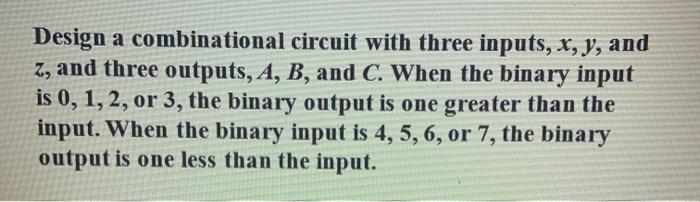

Design a combinational circuit with three inputs, x, y, and z, and three outputs, A, B, and C. When the binary input is 0, 1, 2, or 3, the binary output is one greater than the input. When the binary input is 4, 5, 6, or 7, the binary output is one less than the input
