Question

1 Approved Answer

Exercise: 0 1 Given the Boolean function F ? ? ( A , B , C , D ) = ? ? ( 0 ,

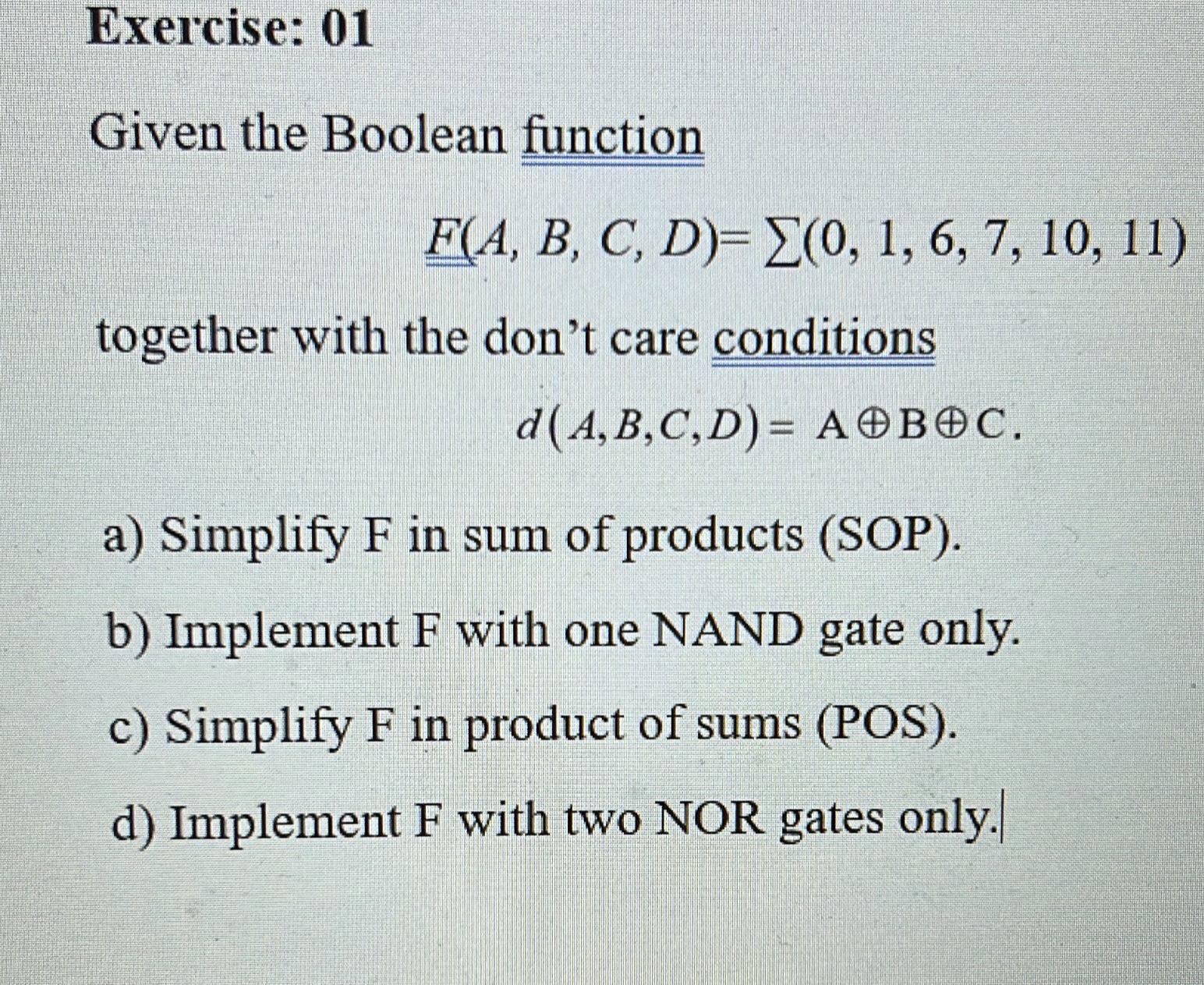

Exercise: 01
Given the Boolean function
F??(A,B,C,D)=??(0,1,6,7,10,11)
together with the don't care conditions
d(A,B,C,D)=Ao+Bo+C.
a) Simplify F in sum of products (SOP).
b) Implement F with one NAND gate only.
c) Simplify F in product of sums (POS).
d) Implement F with two NOR gates only.
image text in transcribed
