For part A, b and c Please include ALL STEPS, IDENTITIES, CALCULATIONS AND SCRATCH WORK USED TO SOLVE! To check your work Here are the

image text in transcribed

For part A, b and c Please include ALL STEPS, IDENTITIES, CALCULATIONS AND SCRATCH WORK USED TO SOLVE! To check your work Here are the answers as follows: a) Vc= 80e^(-.1t) +20 B) t= 43.8 seconds . The formula needed to solve is RC dV/dt +V =Vin

image text in transcribed

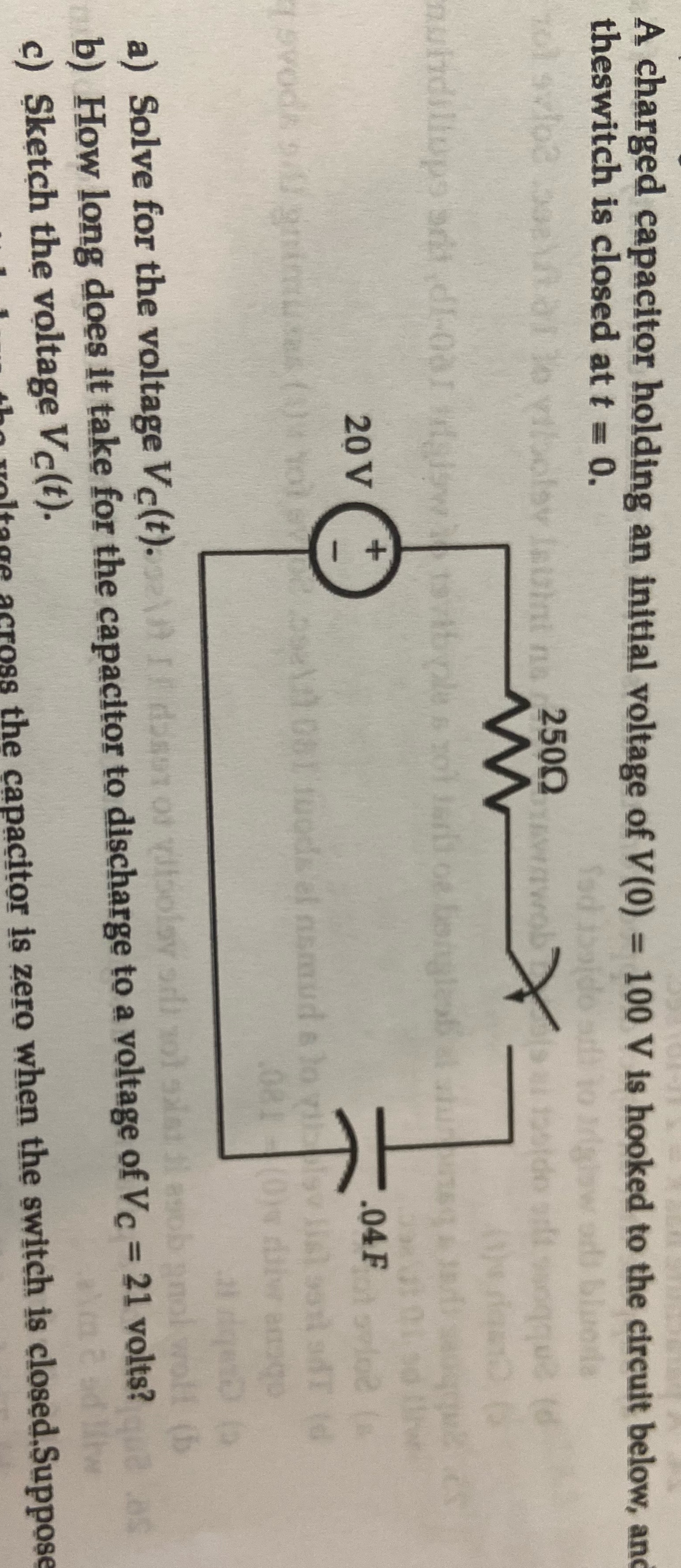

A charged capacitor holding an initial voltage of V(0) = 100 V is hooked to the circuit below, an theswitch is closed at t = 0. 2500 nuhidstops saidLost wedge + 20 V .04 F YOU one Wil DOT foods el nsmud & to vila 6081 a) Solve for the voltage Ve(t). \\ damon on vitsolov ardi not salat il asob pool woll (b b) How long does it take for the capacitor to discharge to a voltage of Vc = 21 volts? c) Sketch the voltage Vc(t). cross the capacitor is zero when the switch is closed.Suppose

Step by Step Solution

There are 3 Steps involved in it

Step: 1
