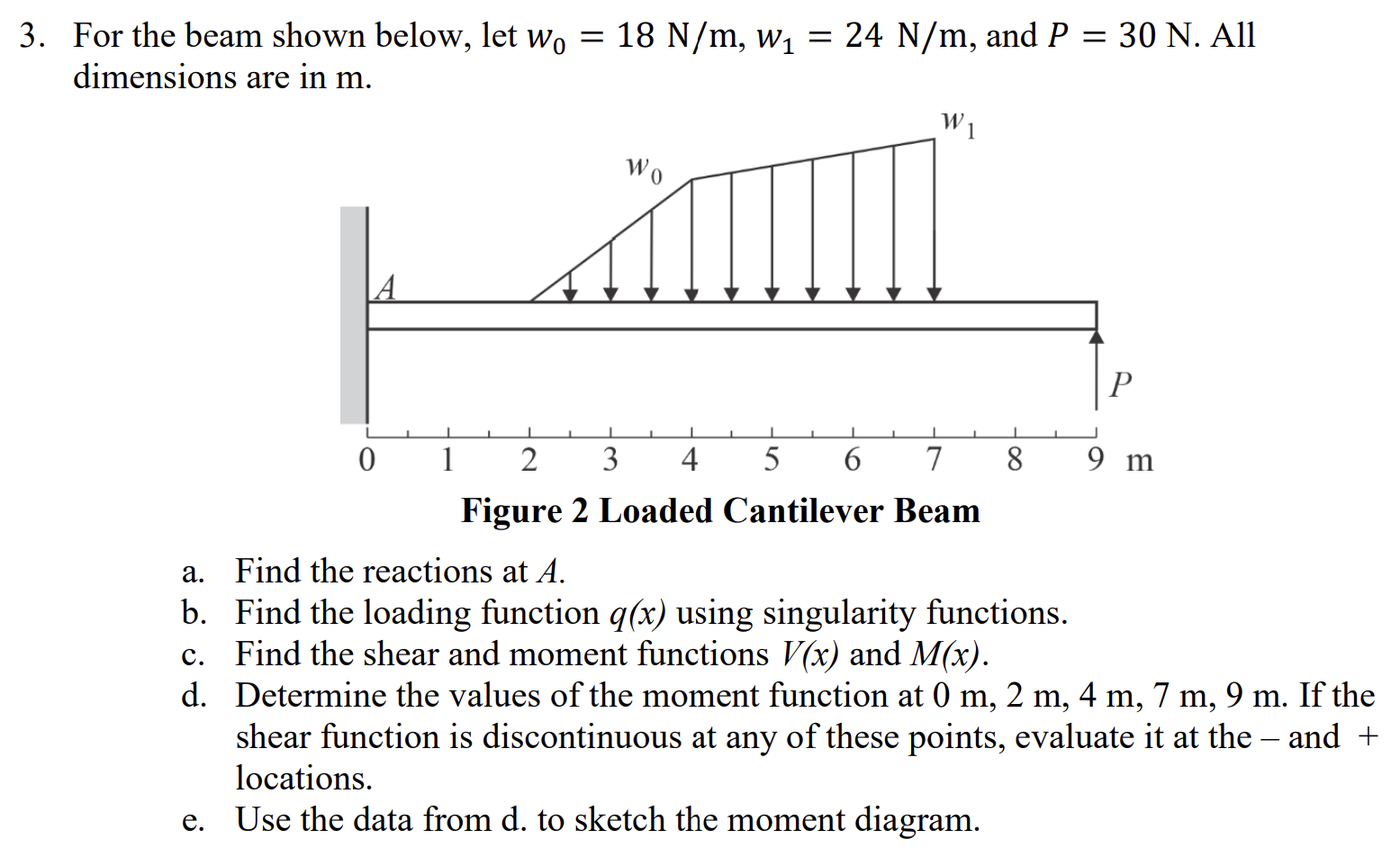

Question: For the beam shown below, let w 0 = 1 8 N m , w 1 = 2 4 N m , and P =

For the beam shown below, let w0=18Nm,w1=24Nm, and P=30N. All
dimensions are in m.
a. Find the reactions at A.
b. Find the loading function q(x) using singularity functions.
c. Find the shear and moment functions V(x) and M(x).
d. Determine the values of the moment function at 0m,2m,4m,7m,9m. If the
shear function is discontinuous at any of these points, evaluate it at the - and +
locations.
e. Use the data from
d. to sketch the moment diagram.
