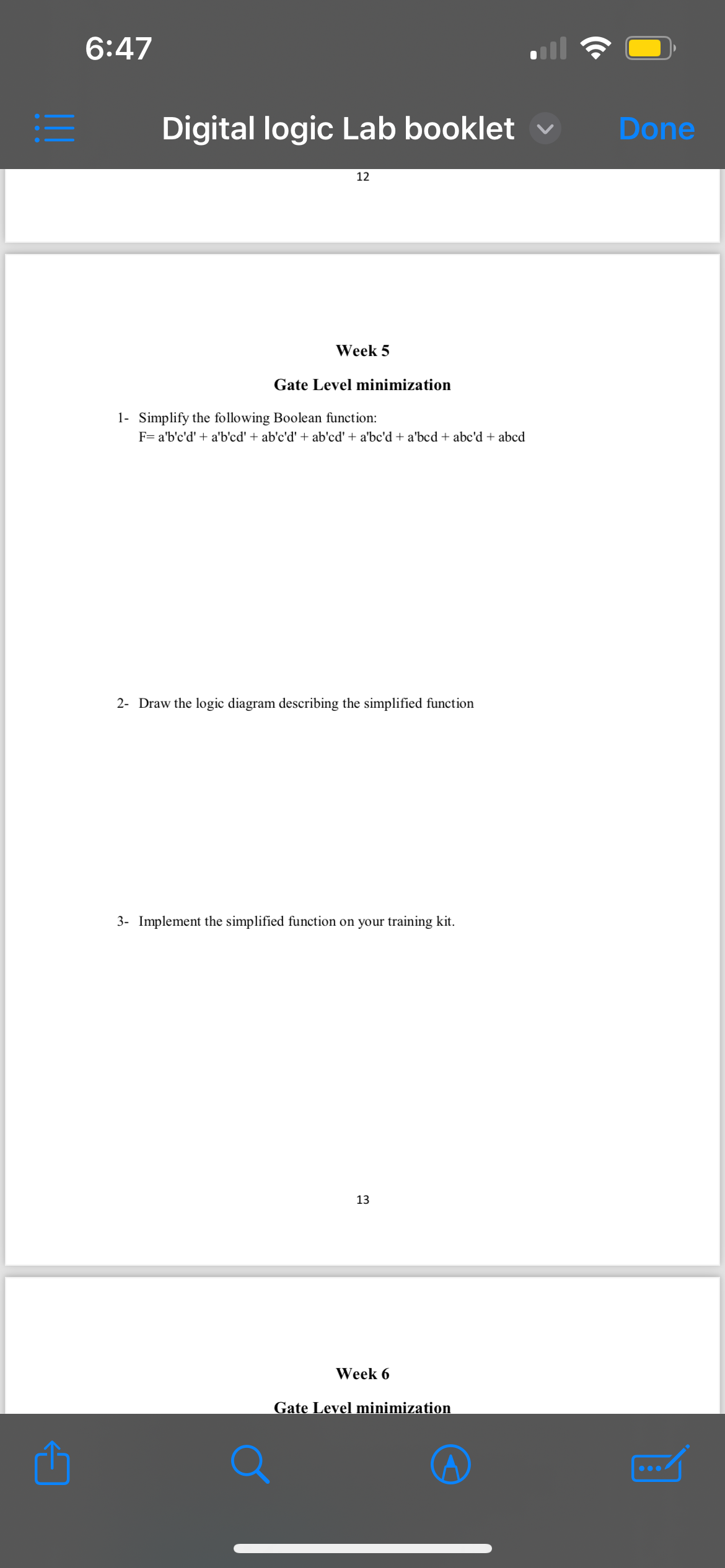

Gate Level minimization 1 - Simplify the following Boolean function: F = a ' b ' c ' d ' + a ' b '

Gate Level minimization
1- Simplify the following Boolean function:
F=a'b'c'd'+a'b'cd'+ab'c'd'+ab'cd'+a'bc'd+a'bcd+abc'd+abcd
2- Draw the logic diagram describing the simplified function
3- Implement the simplified function on your training kit.
image text in transcribed
