Having Issues with Exercise 7.12. May I have assitance for 7.12 only please. Exercise 7.11 Suppose one of the following control signals in the multicycle

image text in transcribed

Having Issues with Exercise 7.12. May I have assitance for 7.12 only please.

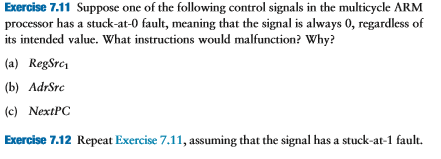

Exercise 7.11 Suppose one of the following control signals in the multicycle ARM processor has a stuck-at-0 fault, meaning that the signal is always 0, regardless of its intended value. What instructions would malfunction? Why? (a) RegSrci (b) AdrSrc (c) NextPO Exercise 7.12 Repeat Exercise 7.11, assuming that the signal has a stuck-at-1 fault
