Hello i need help and show work please thank you A rectangular coil consists of N = 37 closely wrapped turns and has dimensions ab

Hello i need help and show work please thank you

image text in transcribedimage text in transcribed

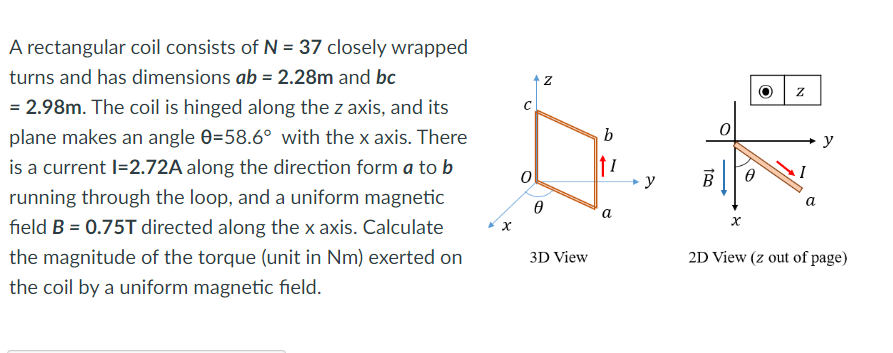

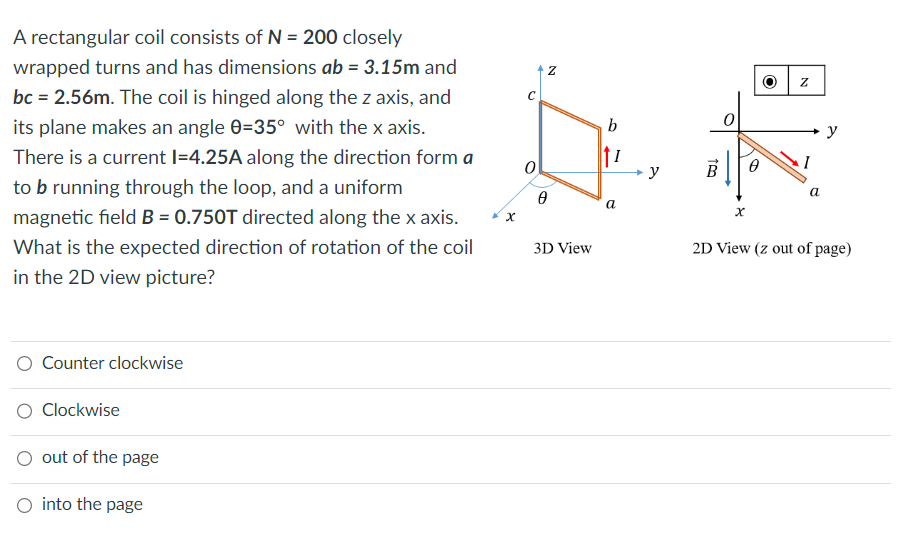

A rectangular coil consists of N = 37 closely wrapped turns and has dimensions ab = 2.28m and bc +Z O Z = 2.98m. The coil is hinged along the z axis, and its C plane makes an angle 0=58.6 with the x axis. There b O V is a current I=2.72A along the direction form a to b TI O B running through the loop, and a uniform magnetic a a field B = 0.75T directed along the x axis. Calculate X the magnitude of the torque (unit in Nm) exerted on 3D View 2D View (z out of page) the coil by a uniform magnetic field.A rectangular coil consists of N = 200 closely wrapped turns and has dimensions ab = 3.15m and + Z O Z bc = 2.56m. The coil is hinged along the z axis, and C its plane makes an angle 0=350 with the x axis. O There is a current 1=4.25A along the direction form a TI O y B to b running through the loop, and a uniform a a magnetic field B = 0.750T directed along the x axis. X What is the expected direction of rotation of the coil 3D View 2D View (z out of page) in the 2D view picture? O Counter clockwise O Clockwise O out of the page O into the page
