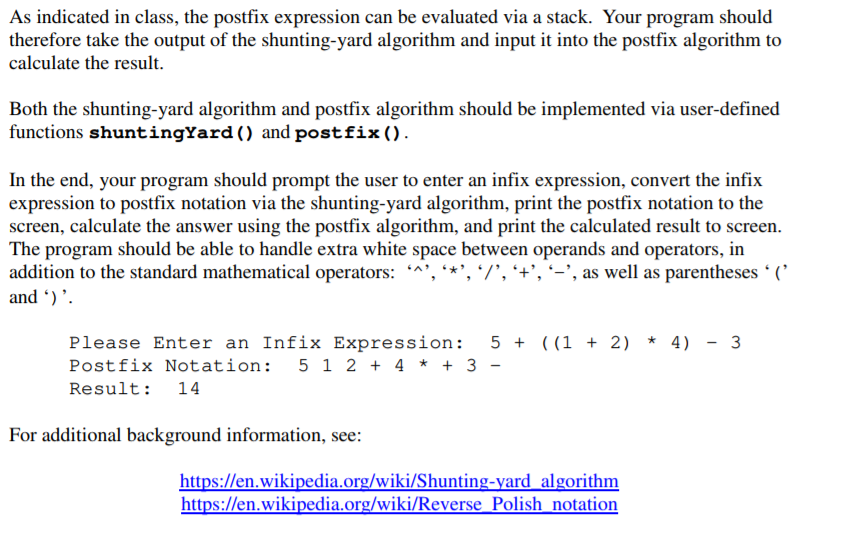

Hello, I would like some help in creating and implementing two functions into my code, the two functions are shuntingYard() and postfix().

This is what I have so far:

queueADT.h

#ifndef QUEUEADT_H #define QUEUEADT_H

template class queueADT{ public: virtual bool isEmptyQueue() const = 0; //function to see if queue is empty virtual bool isFullQueue() const = 0; //function to see if queue is full virtual void initializeQueue() = 0; //function to make queue empty virtual Type front() const = 0; //function to return first element of queue virtual Type back() const = 0; //function to return last element of queue virtual void addQueue(const Type& queueElement) = 0; //function to add queueElement to queue virtual void deleteQueue() = 0; //function to remove the first element of queue };

#endif /* QUEUEADT_H */

-----------------------------------

stackADT.h

#ifndef STACKADT_H #define STACKADT_H

template class stackADT{ public: virtual void initializeStack() = 0; //to initialize stack to an empty stack virtual bool isEmptyStack() const = 0; //function to see if stack is empty virtual bool isFullStack() const = 0; //function to see if stack is full virtual void push(const Type& newItem) = 0; //function to add newItem to stack virtual Type top() const = 0; //function to return the top element of stack virtual void pop() = 0; //function to remove the top element of stack };

#endif /* STACKADT_H */

----------------------------------------

linkedStack.h

#ifndef LINKEDSTACK_H #define LINKEDSTACK_H

#include #include #include "stackADT.h" using namespace std;

template class nodeType{ Type info; nodeType *next; };

template class linkedStackType: public stackADT{ public: const linkedLStackType& operator= (const linkedStackType&); //overload assignment operator bool isEmptyStack() const; //to see if stack is empty bool isFullStack() const; //to see if stack is full void initializeStack(); //function to initialize stack to empty void push(const Type& newItem); //add newItem to stack Type top() const; //return top element of stack void pop(); //remove top element of stack linkedStackType(); //default constructor linkedStackType(const linkedStackType& otherStack); //copy constructor ~linkedStackType(); //destructor private: nodeType *stackTop; //pointer to the stack void copyStack(const linkedStackType& otherStack); //function to make a copy of otherStack };

//default constructor template linkedStackType::linkedStackType(){ stackTop = nullptr; }

template bool linkedStackType::isEmptyStack() const{ return(stackTop == nullptr); }//end isEmptyStack

template bool linkedStackType::isFullStack() const{ return false; }//end isFullStack

template void linkedStackType::initializeStack(){ nodeType *temp; //pointer to delete the node while(stackTop != nullptr){ //while the stack is not empty temp = stackTop; //set temp to point to current node stackTop = stackTop->next; //move stackTop to next node delete temp; }//end while }//end initializeStack

template void linkedStackType::push(const Type& newElement){ nodeType *newNode; //pointer to create new node newNode = new nodeType; //create node newNode->info = newElement; //store newElement in node newNode->next = stackTop;//insert newNode before stackTop stackTop = newNode; //set stackTop to point to top node }//end push

template Type linkedStackType::top() const{ assert(stackTop != nullptr){ //if stack is empty return stackTop->info; } }//end top

template void linkedStackType::pop(){ nodeType *temp; if(stackTop != nullptr){ temp = stackTop; stackTop = stackTop->next; delete temp; } else{ cout

template void linkedStackType::copyStack (const linkedStackType& otherStack){ nodeType *newNode, *current, *last; if(stackTop != nullptr){ //if stack is not empty, make it empty initializeStack(); } if(otherStack.stackTop == nullptr){ stackTop = nullptr; } else{ current = otherStack.stackTop; //set current to point to stack //to be copied //copy the stackTop element of stack stackTop = new nodeType; //create the node stackTop->info = current->info; //copy info stackTop->next = nullptr; //set next to nullptr last = stackTop; //set last to point to the node current = current->next; //set current to point to next node //copy remaining stack while(current != nullptr){ newNode = new nodeType; newNode->info = current->info; newNode->next = nullptr; last->next = newNode; last = newNode; current = current->next; }//end while }//end else }//end copyStack

//copy constructor template linkedStackType::linkedStackType( const linkedStackType& otherStack){ stackTop = nullptr; copySack(otherStack); }//end copy constructor

//destructor template linkedStackType::~linkedStackType(){ initializeStack(); }//end destructor

//overloading assignment operator template const linkedStackType &linkedStackType::operator= (const linkedStackType& otherStack){ if(this != &otherStack){ //avoid self-copy copyStack(otherStack); } return *this; }//end operator =

#endif /* LINKEDSTACK_H */

----------------------------------------

linkedQueue.h

#ifndef LINKEDQUEUE_H #define LINKEDQUEUE_H

#include #include #include "queueADT.h" using namespace std;

//definition of the node template class nodeType{ Type info; nodeType *next; };

template class linkedQueueType: public queueADT{ public: const linkedQueueType& operator= (const linkedQueueType&); //overload the assignment operator bool isEmptyQueue() const; //fucntion to see if queue is empty bool isFullQueue() const; //function to see if queue is full void initializeQueue(); //function to make queue empty Type front() const; //function to return the first element of queue Type back() const; //function to return the last element of queue void addQueue(const Type& queueElement); //function to add queueElement to queue void deleteQueue(); //function to remove the first element of queue linkedQueueType(); //default constructor linkedQueueType(const linkedQueueType& otherQueue); //copy constructor ~linkedQueueType(); //destructor private: nodeType *queueFront; //pointer to front of queue nodeType *queueRear; //pointer to rear of queue };

//default constructor template linkedQueueType::linkedQueueType(){ this->queueFront = nullptr; //set front to nullptr this->queueRear = nullptr; //ser rear to nullptr }//end default constructor

template bool linkedQueueType::isEmptyQueue() const{ return (this->queueFront == nullptr); }//end isEmptyQueue

template bool linkedQueueType::isFullQueue() const{ return false; }//end isFullQueue

template void linkedQueueType::initializeQueue(){ nodeType *temp; while(this->queueFront != nullptr){ //while there are elements in queue temp = this->queueFront; //set temp to point to current node this->queueFront = this->queueFront->next; // advance first node to next one delete temp; } this->queueRear = nullptr; //set rear to nullptr }//end initializeQueue

template void linkedQueueType::addQueue(const Type& newElement){ nodeType *newNode; newNode = new nodeType; newNode->info = newElement; newNode->next = nullptr; if(this->queueFront == nullptr){ //if queue is empty this->queueFront = newNode; this->queueRear = newNode; } else{ //add newNode at the end this->queueRear->next = newNode; this->queueRear = this->queueRear->next; } }//end addQueue

template Type linkedQueueType::front() const{ assert(this->queueFront != nullptr); return this->queueFront->info; }//end front

template Type linkedQueueType::back() const{ assert(this->queueRear != nullptr); return this->queueRear->info; }//end back

template void linkedQueueType::deleteQueue(){ nodeType *temp; if(!isEmptyQueue()){ temp = this->queueFront; //make temp point to first node this->queueFront = this->queueFront->next; //advance queueFront delete temp; //delete first node if(this->queueFront == nullptr){ //if after deleting the queue //the queue becomes empty this->queueRear = nullptr; //set queueRear to nullptr } }//end if else{ cout

//destructor template linkedQueueType::~linkedQueueType(){ initializeQueue(); }//end destructor

template const linkedQueueType& linkedQueueType::operator= (const linkedQueueType& otherQueue){ if(this != &otherQueue){ //avoid self-copy linkedQueueType(otherQueue); } return *this; }//end assignment operator

//copy constructor template linkedQueueType::linkedQueueType (const linkedQueueType& otherQueue){ nodeType *newNode, *current, *last; if(this->queueFront != nullptr){ //if queue is not empty, make it empty initializeQueue(); } if(otherQueue.this->queueFront == nullptr){ this->queueFront = nullptr; } else{ current = otherQueue.this->queueFront; //set current to point to queue //to be copied //copy the first element of queue this->queueFront = new nodeType; //create the node this->queueFront->info = current->info; //copy info this->queueFront->next = nullptr; //set next to nullptr last = this->queueRear; //set last to point to the node current = current->next; //set current to point to next node //copy remaining stack while(current != nullptr){ newNode = new nodeType; newNode->info = current->info; newNode->next = nullptr; last->next = newNode; last = newNode; current = current->next; }//end while }//end else }

#endif /* LINKEDQUEUE_H */

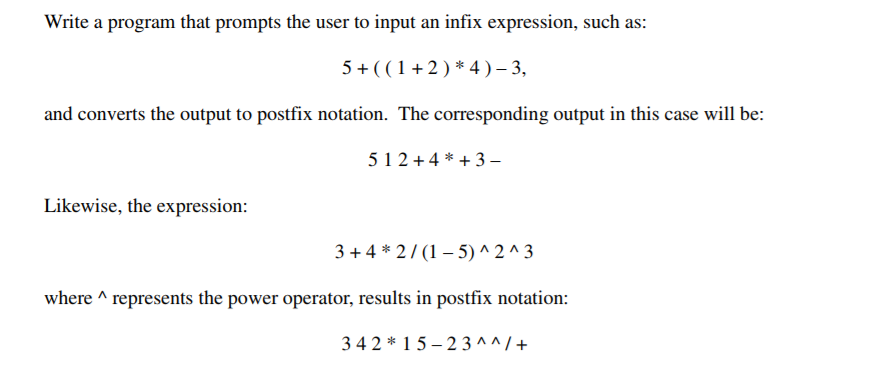

Write a program that prompts the user to input an infix expression, such as and converts the output to postfix notation. The corresponding output in this case will be 512+4*3- Likewise, the expression 3+4 *2/(1-5) A 23 where A represents the power operator, results in postfix notation: 342 15-23AA+
