Homework: Practice with Force Diagrams Instructions: Construct system schemas and force diagrams for the objects described below. 1. When throwing a key vertically upward, my

image text in transcribed
image text in transcribed

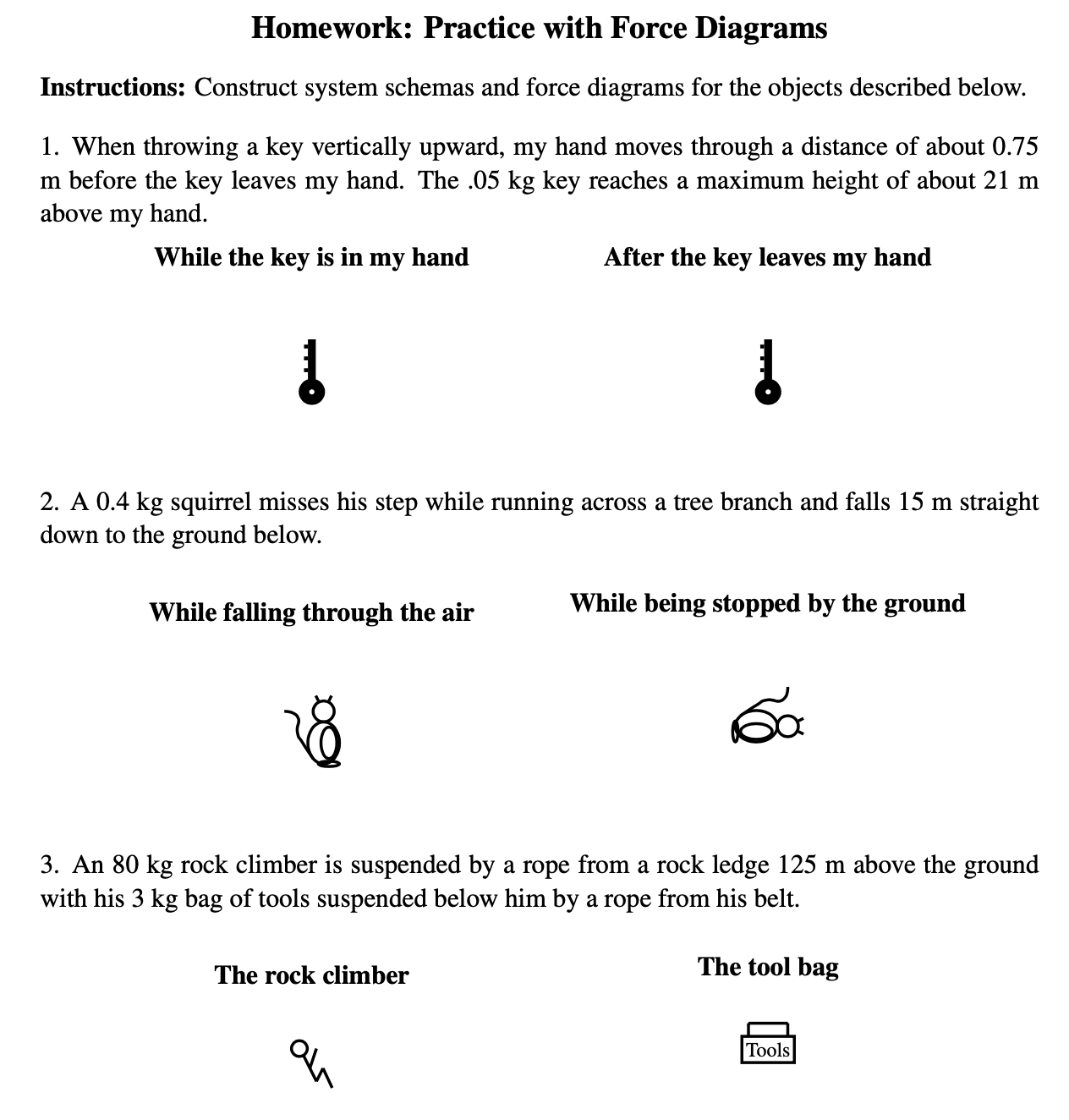

Homework: Practice with Force Diagrams Instructions: Construct system schemas and force diagrams for the objects described below. 1. When throwing a key vertically upward, my hand moves through a distance of about 0.75 m before the key leaves my hand. The .05 kg key reaches a maximum height of about 21 m above my hand. While the key is in my hand After the key leaves my hand 1 1 2. A 0.4 kg squirrel misses his step while running across a tree branch and falls 15 m straight down to the ground below. While falling through the air While being stopped by the ground 1% 63 3. An 80 kg rock climber is suspended by a rope from a rock ledge 125 m above the ground with his 3 kg bag of tools suspended below him by a rope from his belt. The rock climber The \"'01 bag Q\
