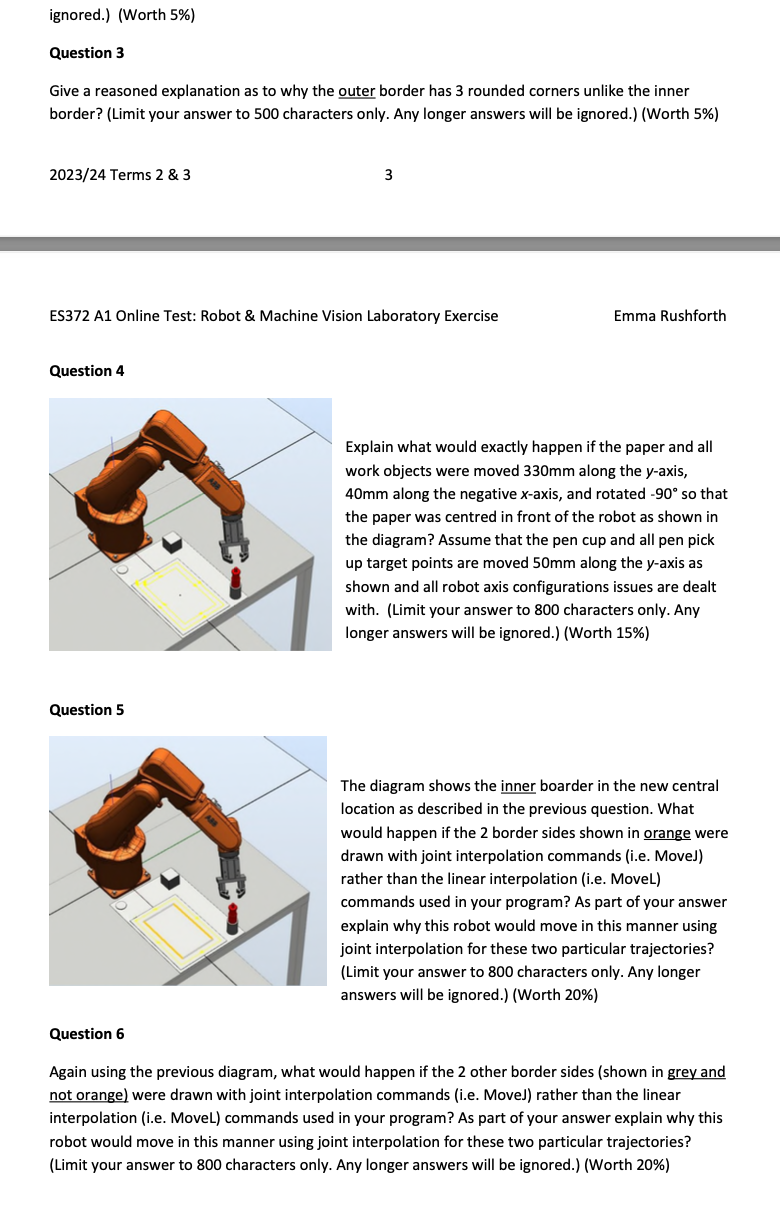

ignored. ) ( Worth 5 % ) Question 3 Give a reasoned explanation as to why the outer border has 3 rounded corners unlike the

ignored.)(Worth 5%)
Question 3
Give a reasoned explanation as to why the outer border has 3 rounded corners unlike the inner
border? (Limit your answer to 500 characters only. Any longer answers will be ignored.)(Worth 5%)
Question 4
Explain what would exactly happen if the paper and all
work objects were moved 330mm along the y-axis,
40mm along the negative x-axis, and rotated -90 so that
the paper was centred in front of the robot as shown in
the diagram? Assume that the pen cup and all pen pick
up target points are moved 50mm along the y-axis as
shown and all robot axis configurations issues are dealt
with. (Limit your answer to 800 characters only. Any
longer answers will be ignored.)(Worth 15%)
Question 5
The diagram shows the inner boarder in the new central
location as described in the previous question. What
would happen if the 2 border sides shown in orange were
drawn with joint interpolation commands (i.e. MoveJ)
rather than the linear interpolation (i.e. MoveL)
commands used in your program? As part of your answer
explain why this robot would move in this manner using
joint interpolation for these two particular trajectories?
(Limit your answer to 800 characters only. Any longer
answers will be ignored.)(Worth 20%)
Question 6
Again using the previous diagram, what would happen if the 2 other border sides (shown in grey and
not orange) were drawn with joint interpolation commands (i.e. MoveJ) rather than the linear
interpolation (i.e. MoveL) commands used in your program? As part of your answer explain why this
robot would move in this manner using joint interpolation for these two particular trajectories?
(Limit your answer to 800 characters only. Any longer answers will be ignored.)(Worth 20%)
