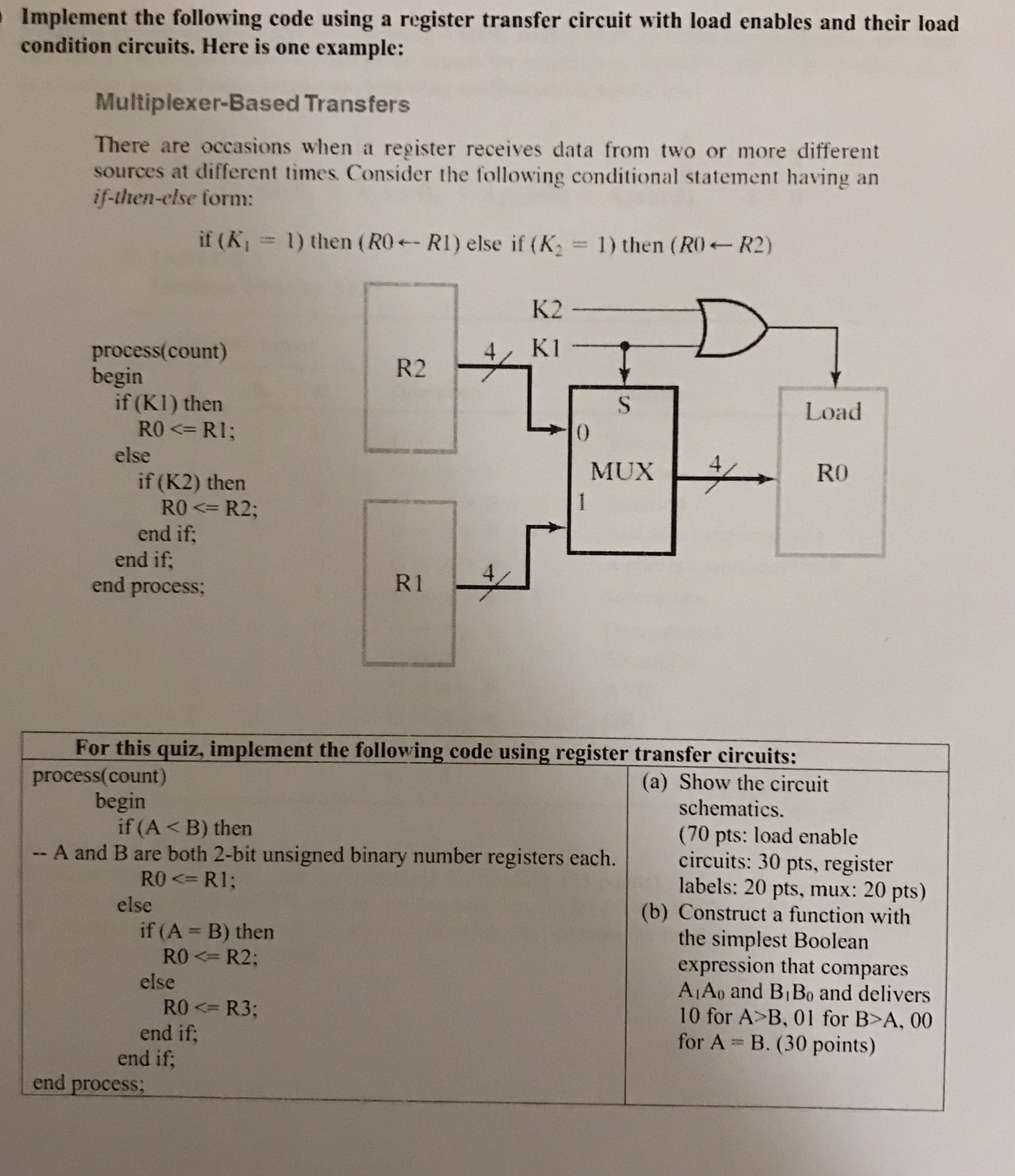

Implement the following code using a register transfer circuit with load enables and their load

condition circuits. Here is one example:

Multiplexer$-$Based Transfers

There are occasions when a register receives data from two or more different

sources at different times. Consider the following conditional statement having an

if$-$then$-$else form:

if $(K_1=1)$ then $(R0$larr$-R1)$ else if $(K_2=1)$ then $(R0$larrR$2)$

process$($count$)$

begin

if $(KI)$ then

$R0R1$;

else

if $(K_2)$ then

$R0R2$;

end if;

end if;

end process;
