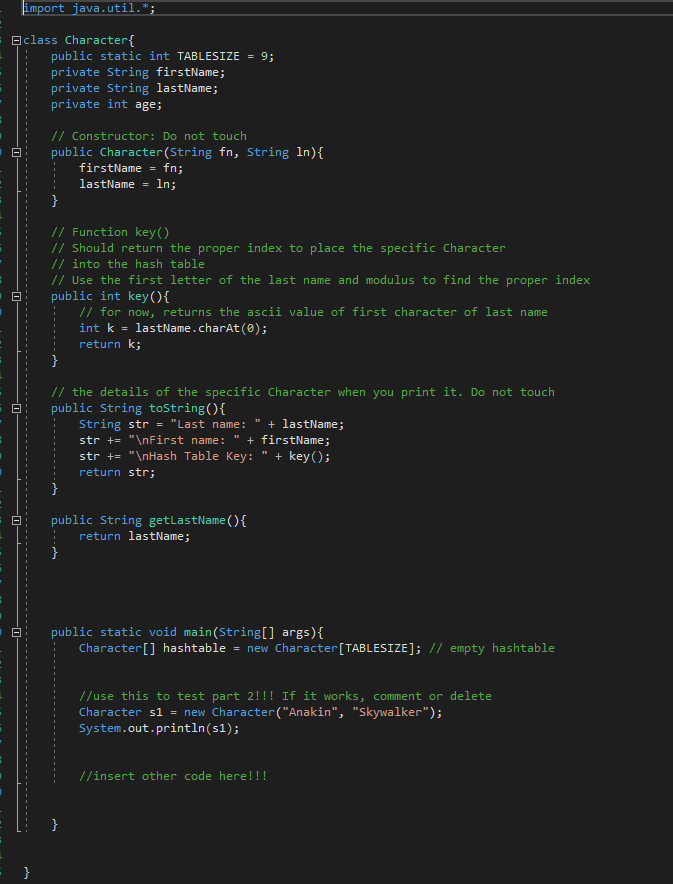

import java.util.*;

class Character{ public static int TABLESIZE = 9; private String firstName; private String lastName; private int age;

// Constructor: Do not touch public Character(String fn, String ln){ firstName = fn; lastName = ln; }

// Function key() // Should return the proper index to place the specific Character // into the hash table // Use the first letter of the last name and modulus to find the proper index public int key(){ // for now, returns the ascii value of first character of last name int k = lastName.charAt(0); return k; }

// the details of the specific Character when you print it. Do not touch public String toString(){ String str = "Last name: " + lastName; str += " First name: " + firstName; str += " Hash Table Key: " + key(); return str; } public String getLastName(){ return lastName; }

public static void main(String[] args){ Character[] hashtable = new Character[TABLESIZE]; // empty hashtable

//use this to test part 2!!! If it works, comment or delete Character s1 = new Character("Anakin", "Skywalker"); System.out.println(s1);

//insert other code here!!! }

}

///

Please do this with Java

Background: In computer science and software engineering, the more efficiently a program runs, the better in quality it is (or at least that's how it can be classified). Searching for a certain value in a large database or list can take a long time especially if that value is stored in a space that is the last place that you look. See the example below. This is where a hash function comes into play. If you tried to find 32532 in the array below, it would take a long time because 32532 is at the end of the array. You would have to check around 20483960 memory addresses before finding it. Index 012 - 20483958 20483959 20483960 20483961 Value # # # # # # # - 49842 4 28 32532 35246 A hash function is a function that generates a key for a value. This key allows us to (1) strategically place our data and (2) easily find our data when we need to refer to it. There are many types of hashing, but we're going to use modular hashing. Let's look at a simplified example: 293587 Let's use the array on the left as our example. There are 8 numbers in our 85023840 array and we want to arrange them in a way that allows us to find them as 54234914 quickly as possible. Because there are 8 spots in the array, we are going to 39482905 use mod 8 to define these locations for us. For example: 9850293 293587: 293587 mod 8 = 3. Thus we'll put this number in index 3 209524 | 85023840: 85023840 mod 8 = 0. Thus we'll put this number in index 0 98520398 Continue this pattern.... 1623407 Finally we'll have an array that looks like below. This is called a hash table: Let's say I want to find or have access to a certain number such as 085023840 98520398. 139482905 If I wanted to use a brute force algorithm to find it in the array above, it 2 54234914 would take me 7 tries if I started from the beginning of the array and 2 3 293587 tries if I started at the end of the array. 14209524 However, if I want to find it in my hash table, I would plug it into the 59850293 hash function that I used to create the hash table x mod 8 and I 698520398 would get a remainder of 7. In 1 try, I can find the value I was looking an find the value I was looking 7623407 for ****Note: This is a very simplified example. In real life situations, you have to account for much more such as collisions. Collisions are outside the scope of this lab and we will not be worrying about it. Lab Introduction: You may choose Java or Python to complete the lab. Be sure to check BeachBoard for the resources that you need such as the skeleton code and a video. Instructions: In the skeleton note the following: The TABLESIZE is initialized for you already (=9). Do not change it or else your output may not match the expected output There is an object called Character that has the following o Variables: (String) firstName . (String) lastName o Methods: . (int) key () . For now, it returns the ascii value of the first letter of lastName . A "toString" method so that it prints out the details of the character . String getLastName() returns the last name (getter) A hash table of size 9 is already initialized (but empty) Your task: 1. Change the body of key () so that it does the following Generates the proper key between 0-8 (because there are 9 spots in the hash table) through a hashing function in terms of the ascii value of the first letter of lastName 2. Before moving on to the main function implementation, look at the following characters. Next to them, write the hash values for the current implementation (bold faced names are the last names). You may want to refer to the Ascii table: A-65 B-66 C-67 D-68 E-69 F-70 G-71 H-721-73 J-74 K-75 L-76 M-77 N-780-79 P-800-81 R-82 S-83 T-84 U-85 V-86 W-87X-88 Y-89 Z-90a-97b-98 c-99d-100 e-101 f-1023-103 h-104 i-105 j-106 k-1071-108 m-109 n-110 0-111 P-112 q-113 r-114 S-115t-116 -117 V-118 W-119 X-120 y-121 Z-122 Anakin Skywalker: Obi Wan Kenobi: General Grievous: Sheev Palpatine: r2 d2: Leia Organa: Ahsoka Tano: Sheev palpatine: Boba Fett: Mace Windu: Asajj Ventress: General Hux: ****Test your code with some of the names above to see if you get the correct key before moving on to step 3 3. Using the Characters above and in that order), simulate what would happen if you tried to insert them into hash table using their respective keys. In the case there is a collision (when you try to insert a Character into a space that already has a character), then prioritize the first character and ignore the second character. Index 0 2 3 5 6 7 8 Character 4. On a loop, ask the user for a first name and a last name. Create a Character object with each set of inputs. Find the key of the Character input to see if it can fit in our hash table. If it does, insert it into the hash table. If it does not, output an error message saying that there's no room for that character. Continue to ask them until they fill out all spots in the hash table. Look at the example below: Last name: Skywalker First name: Anakin Inserted into the hash table, it is Last name: Palpatine First name: Sheev Inserted into the hash table, it is - - -- - - -- - - -- - - -- - - - -- - - -- - - -- - - -- - - - - - - - - Last name: Grievous First name: General Error: Filled that spot you already have Last name: 5. Once the whole hash table has been filled, prompt the user to ask for a last name. Search through the last name using two methods: brute force and hashing. Time the two methods and print out the index they were found in and the amount of time it took to find them Finished Filling Hash Table! Last name: Organa Using brute force Index: 7 Time: 222ms Using hashing Index: 7 Time: 4ms 6. Demo and submit. NOTE: The sequence that I gave to you in the lab was so that you can test. This may or may not be the actual sequence that I test during the demo! import java.util.*; class Character{ public static int TABLESIZE = 9; private String firstName; private String lastName; private int age; // Constructor: Do not touch public Character(String fn, String In) { firstName = fn; lastName = ln; // Function key) // Should return the proper index to place the specific character // into the hash table // Use the first letter of the last name and modulus to find the proper index public int key({ // for now, returns the ascii value of first character of last name int k = lastName.charAt(0); return k; // the details of the specific character when you print it. Do not touch public String toString({ String str = "Last name: " + lastName; str += " First name: " + firstName; str += " Hash Table Key: " + key(); return str; public String getLastName(){ return lastName; public static void main(String[] args) { Character[] hashtable = new Character[TABLESIZE]; // empty hashtable //use this to test part 2!!! If it works, comment or delete Character si = new Character("Anakin", "Skywalker"); System.out.println(51); //insert other code here!!! Background: In computer science and software engineering, the more efficiently a program runs, the better in quality it is (or at least that's how it can be classified). Searching for a certain value in a large database or list can take a long time especially if that value is stored in a space that is the last place that you look. See the example below. This is where a hash function comes into play. If you tried to find 32532 in the array below, it would take a long time because 32532 is at the end of the array. You would have to check around 20483960 memory addresses before finding it. Index 012 - 20483958 20483959 20483960 20483961 Value # # # # # # # - 49842 4 28 32532 35246 A hash function is a function that generates a key for a value. This key allows us to (1) strategically place our data and (2) easily find our data when we need to refer to it. There are many types of hashing, but we're going to use modular hashing. Let's look at a simplified example: 293587 Let's use the array on the left as our example. There are 8 numbers in our 85023840 array and we want to arrange them in a way that allows us to find them as 54234914 quickly as possible. Because there are 8 spots in the array, we are going to 39482905 use mod 8 to define these locations for us. For example: 9850293 293587: 293587 mod 8 = 3. Thus we'll put this number in index 3 209524 | 85023840: 85023840 mod 8 = 0. Thus we'll put this number in index 0 98520398 Continue this pattern.... 1623407 Finally we'll have an array that looks like below. This is called a hash table: Let's say I want to find or have access to a certain number such as 085023840 98520398. 139482905 If I wanted to use a brute force algorithm to find it in the array above, it 2 54234914 would take me 7 tries if I started from the beginning of the array and 2 3 293587 tries if I started at the end of the array. 14209524 However, if I want to find it in my hash table, I would plug it into the 59850293 hash function that I used to create the hash table x mod 8 and I 698520398 would get a remainder of 7. In 1 try, I can find the value I was looking an find the value I was looking 7623407 for ****Note: This is a very simplified example. In real life situations, you have to account for much more such as collisions. Collisions are outside the scope of this lab and we will not be worrying about it. Lab Introduction: You may choose Java or Python to complete the lab. Be sure to check BeachBoard for the resources that you need such as the skeleton code and a video. Instructions: In the skeleton note the following: The TABLESIZE is initialized for you already (=9). Do not change it or else your output may not match the expected output There is an object called Character that has the following o Variables: (String) firstName . (String) lastName o Methods: . (int) key () . For now, it returns the ascii value of the first letter of lastName . A "toString" method so that it prints out the details of the character . String getLastName() returns the last name (getter) A hash table of size 9 is already initialized (but empty) Your task: 1. Change the body of key () so that it does the following Generates the proper key between 0-8 (because there are 9 spots in the hash table) through a hashing function in terms of the ascii value of the first letter of lastName 2. Before moving on to the main function implementation, look at the following characters. Next to them, write the hash values for the current implementation (bold faced names are the last names). You may want to refer to the Ascii table: A-65 B-66 C-67 D-68 E-69 F-70 G-71 H-721-73 J-74 K-75 L-76 M-77 N-780-79 P-800-81 R-82 S-83 T-84 U-85 V-86 W-87X-88 Y-89 Z-90a-97b-98 c-99d-100 e-101 f-1023-103 h-104 i-105 j-106 k-1071-108 m-109 n-110 0-111 P-112 q-113 r-114 S-115t-116 -117 V-118 W-119 X-120 y-121 Z-122 Anakin Skywalker: Obi Wan Kenobi: General Grievous: Sheev Palpatine: r2 d2: Leia Organa: Ahsoka Tano: Sheev palpatine: Boba Fett: Mace Windu: Asajj Ventress: General Hux: ****Test your code with some of the names above to see if you get the correct key before moving on to step 3 3. Using the Characters above and in that order), simulate what would happen if you tried to insert them into hash table using their respective keys. In the case there is a collision (when you try to insert a Character into a space that already has a character), then prioritize the first character and ignore the second character. Index 0 2 3 5 6 7 8 Character 4. On a loop, ask the user for a first name and a last name. Create a Character object with each set of inputs. Find the key of the Character input to see if it can fit in our hash table. If it does, insert it into the hash table. If it does not, output an error message saying that there's no room for that character. Continue to ask them until they fill out all spots in the hash table. Look at the example below: Last name: Skywalker First name: Anakin Inserted into the hash table, it is Last name: Palpatine First name: Sheev Inserted into the hash table, it is - - -- - - -- - - -- - - -- - - - -- - - -- - - -- - - -- - - - - - - - - Last name: Grievous First name: General Error: Filled that spot you already have Last name: 5. Once the whole hash table has been filled, prompt the user to ask for a last name. Search through the last name using two methods: brute force and hashing. Time the two methods and print out the index they were found in and the amount of time it took to find them Finished Filling Hash Table! Last name: Organa Using brute force Index: 7 Time: 222ms Using hashing Index: 7 Time: 4ms 6. Demo and submit. NOTE: The sequence that I gave to you in the lab was so that you can test. This may or may not be the actual sequence that I test during the demo! import java.util.*; class Character{ public static int TABLESIZE = 9; private String firstName; private String lastName; private int age; // Constructor: Do not touch public Character(String fn, String In) { firstName = fn; lastName = ln; // Function key) // Should return the proper index to place the specific character // into the hash table // Use the first letter of the last name and modulus to find the proper index public int key({ // for now, returns the ascii value of first character of last name int k = lastName.charAt(0); return k; // the details of the specific character when you print it. Do not touch public String toString({ String str = "Last name: " + lastName; str += " First name: " + firstName; str += " Hash Table Key: " + key(); return str; public String getLastName(){ return lastName; public static void main(String[] args) { Character[] hashtable = new Character[TABLESIZE]; // empty hashtable //use this to test part 2!!! If it works, comment or delete Character si = new Character("Anakin", "Skywalker"); System.out.println(51); //insert other code here
