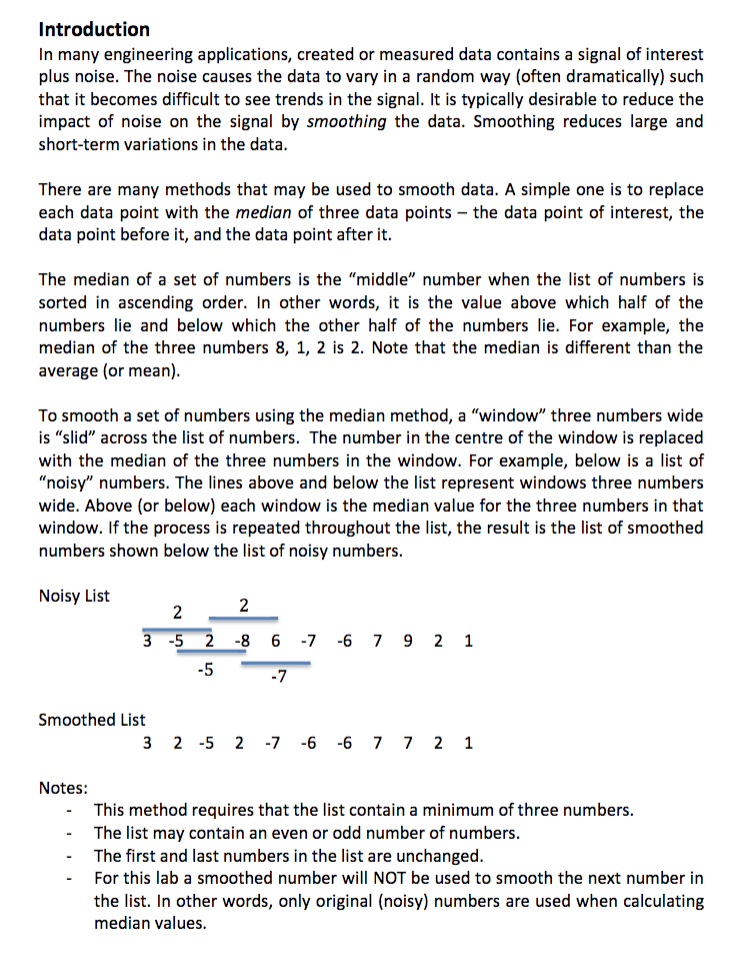

Introduction In many engineering applications, created or measured data contains a signal of interest plus noise. The noise causes the data to vary in a random way (often dramatically) such that it becomes difficult to see trends in the signal. It is typically desirable to reduce the impact of noise on the signal by smoothing the data. Smoothing reduces large and short-term variations in the data There are many methods that may be used to smooth data. A simple one is to replace each data point with the median of three data points the data point of interest, the data point before it, and the data point after it. The median of a set of numbers is the "middle" number when the list of numbers is sorted in ascending order. In other words, it is the value above which half of the numbers lie and below which the other half of the numbers lie. For example, the median of the three numbers 8, 1, 2 is 2. Note that the median is different than the average (or mean) To smooth a set of numbers using the median method, a "window" three numbers wide is "slid" across the list of numbers. The number in the centre of the window is replaced with the median of the three numbers in the window. For example, below is a list of "noisy" numbers. The lines above and below the list represent windows three numbers wide. Above (or below) each window is the median value for the three numbers in that window. If the process is repeated throughout the list, the result is the list of smoothed numbers shown below the list of noisy numbers Noisy List 3 -5 26 7-6 7 9 2 1 -5 -7 Smoothed List 3 2 -5 2 7 -6 6 7 7 2 1 Notes: This method requires that the list contain a minimum of three numbers The list may contain an even or odd number of numbers The first and last numbers in the list are unchanged - For this lab a smoothed number will NOT be used to smooth the next number in the list. In other words, only original (noisy) numbers are used when calculating median values
