is this code can be use in ESP8266? If not, can someone code for carbon monoxide sensor circuit using ESP8266? Please thank you /* MQ-7

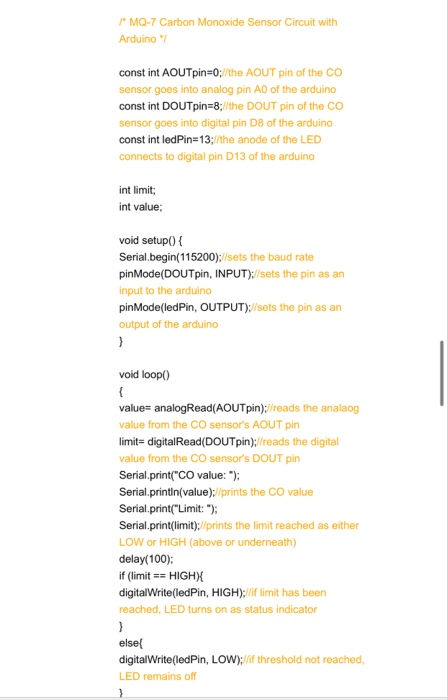

is this code can be use in ESP8266? If not, can someone code for carbon monoxide sensor circuit using ESP8266? Please thank you image text in transcribed
/* MQ-7 Carbon Monoxide Sensor Circuit with Arduino const int AOUTpin=0;//the AOUT pin of the CO sensor goes into analog pin AO of the arduino const int DOUTpin=8;//the DOUT pin of the CO sensor goes into digital pin D8 of the arduino const int ledPin=13;//the anode of the LED connects to digital pin D13 of the arduino int limit: int value; void setup() { Serial.begin(115200);//sets the baud rate pinMode(DOUTpin, INPUT); //sets the pin as an input to the arduino pinMode(ledPin, OUTPUT);//sets the pin as an output of the arduino void loop() value= analogRead(AOUT pin);//reads the analaog value from the CO sensor's AOUT pin limit= digitalRead(DOUTpin);//reads the digital value from the CO sensor's DOUT pin Serial.print("CO value: "); Serial.println(value);//prints the CO value Serial.print("Limit: "); Serial.print(limit);//prints the limit reached as either LOW or HIGH (above or underneath) delay(100); if (limit == HIGHX digitalWrite(ledPin, HIGH);/if limit has been reached, LED turns on as status indicator else{ digitalWrite(ledPin, LOW);//if threshold not reached, LED remains off
