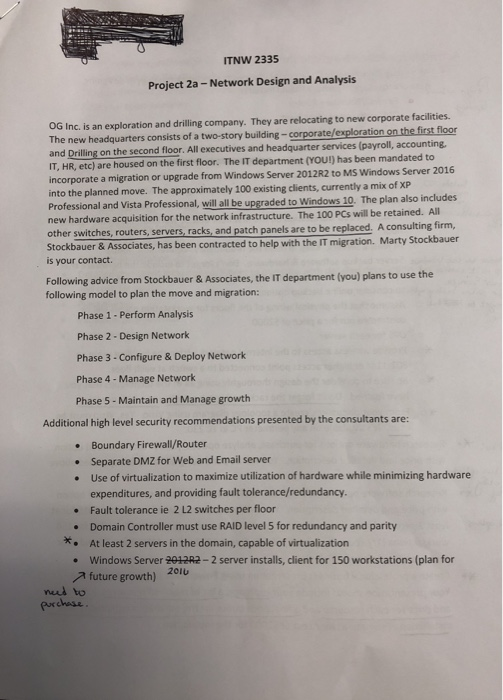

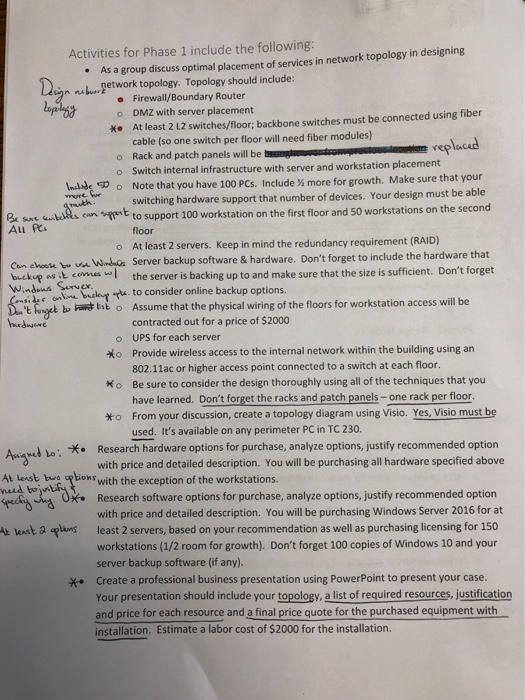

ITNW 2335 Project 2a - Network Design and Analysis OG Inc. is an exploration and drilling company. They are relocating to new corporate facilities. The new headquarters consists of a two-story building-corporate/exploration on the first floor and Drilling on the second floor. All executives and headquarter services (payroll, accounting. IT, HR, etc) are housed on the first floor. The IT department (YOUI) has been mandated to incorporate a migration or upgrade from Windows Server 2012 R2 to MS Windows Server 2016 into the planned move. The approximately 100 existing clients, currently a mix of XP Professional and Vista Professional, will all be upgraded to Windows 10. The plan also includes new hardware acquisition for the network infrastructure. The 100 PCs will be retained. All other switches, routers, servers, racks, and patch panels are to be replaced. A consulting firm, Stockbauer & Associates, has been contracted to help with the IT migration. Marty Stockbauer is your contact Following advice from Stockbauer & Associates, the IT department (you) plans to use the following model to plan the move and migration: Phase 1 - Perform Analysis Phase 2 - Design Network Phase 3 - Configure & Deploy Network Phase 4 - Manage Network Phase 5 - Maintain and Manage growth Additional high level security recommendations presented by the consultants are: Boundary Firewall/Router . Separate DMZ for Web and Email server Use of virtualization to maximize utilization of hardware while minimizing hardware expenditures, and providing fault tolerance/redundancy. Fault tolerance ie 2 L2 switches per floor Domain Controller must use RAID level 5 for redundancy and parity *. At least 2 servers in the domain, capable of virtualization Windows Server 2012R2-2 server installs, client for 150 workstations (plan for future growth) 2010 need to purchase. topology Activities for Phase 1 include the following: As a group discuss optimal placement of services in network topology in designing Design n e twork topology. Topology should include: Firewall/Boundary Router DMZ with server placement Mo At least 2 L2 switches/floor; backbone switches must be connected using fiber cable (so one switch per floor will need fiber modules) o Rack and patch panels will be logo o replaced o Switch internal infrastructure with server and workstation placement de 9o Note that you have 100 PCs. Include more for growth. Make sure that your switching hardware support that number of devices. Your design must be able Best wis can put to support 100 workstation on the first floor and 50 workstations on the second All Pes floor At least 2 servers. Keep in mind the redundancy requirement (RAID) Con choose to u Windos Server backup software & hardware. Don't forget to include the hardware that buckup as it comes withe server is backing up to and make sure that the size is sufficient. Don't forget W indows Server lieleweke. to consider online backup options. D. Funtek bo o b o Assume that the physical wiring of the floors for workstation access will be hardware contracted out for a price of $2000 o UPS for each server *o Provide wireless access to the internal network within the building using an 802.11ac or higher access point connected to a switch at each floor. Ko Be sure to consider the design thoroughly using all of the techniques that you have learned. Don't forget the racks and patch panels-one rack per floor. * From your discussion, create a topology diagram using Visio. Yes, Visio must be used. It's available on any perimeter PC in TC 230. *. Research hardware options for purchase, analyze options, justify recommended option with price and detailed description. You will be purchasing all hardware specified above At least two options with the exception of the workstations. Specky why 0* Research software options for purchase, analyze options, justify recommended option with price and detailed description. You will be purchasing Windows Server 2016 for at At least a opliens least 2 servers, based on your recommendation as well as purchasing licensing for 150 workstations (1/2 room for growth). Don't forget 100 copies of Windows 10 and your server backup software (if any). * Create a professional business presentation using PowerPoint to present your case. Your presentation should include your topology, a list of required resources, justification and price for each resource and a final price quote for the purchased equipment with installation. Estimate a labor cost of $2000 for the installation. At least by Researcice and de specify winky prions with t ITNW 2335 Project 2a - Network Design and Analysis OG Inc. is an exploration and drilling company. They are relocating to new corporate facilities. The new headquarters consists of a two-story building-corporate/exploration on the first floor and Drilling on the second floor. All executives and headquarter services (payroll, accounting. IT, HR, etc) are housed on the first floor. The IT department (YOUI) has been mandated to incorporate a migration or upgrade from Windows Server 2012 R2 to MS Windows Server 2016 into the planned move. The approximately 100 existing clients, currently a mix of XP Professional and Vista Professional, will all be upgraded to Windows 10. The plan also includes new hardware acquisition for the network infrastructure. The 100 PCs will be retained. All other switches, routers, servers, racks, and patch panels are to be replaced. A consulting firm, Stockbauer & Associates, has been contracted to help with the IT migration. Marty Stockbauer is your contact Following advice from Stockbauer & Associates, the IT department (you) plans to use the following model to plan the move and migration: Phase 1 - Perform Analysis Phase 2 - Design Network Phase 3 - Configure & Deploy Network Phase 4 - Manage Network Phase 5 - Maintain and Manage growth Additional high level security recommendations presented by the consultants are: Boundary Firewall/Router . Separate DMZ for Web and Email server Use of virtualization to maximize utilization of hardware while minimizing hardware expenditures, and providing fault tolerance/redundancy. Fault tolerance ie 2 L2 switches per floor Domain Controller must use RAID level 5 for redundancy and parity *. At least 2 servers in the domain, capable of virtualization Windows Server 2012R2-2 server installs, client for 150 workstations (plan for future growth) 2010 need to purchase. topology Activities for Phase 1 include the following: As a group discuss optimal placement of services in network topology in designing Design n e twork topology. Topology should include: Firewall/Boundary Router DMZ with server placement Mo At least 2 L2 switches/floor; backbone switches must be connected using fiber cable (so one switch per floor will need fiber modules) o Rack and patch panels will be logo o replaced o Switch internal infrastructure with server and workstation placement de 9o Note that you have 100 PCs. Include more for growth. Make sure that your switching hardware support that number of devices. Your design must be able Best wis can put to support 100 workstation on the first floor and 50 workstations on the second All Pes floor At least 2 servers. Keep in mind the redundancy requirement (RAID) Con choose to u Windos Server backup software & hardware. Don't forget to include the hardware that buckup as it comes withe server is backing up to and make sure that the size is sufficient. Don't forget W indows Server lieleweke. to consider online backup options. D. Funtek bo o b o Assume that the physical wiring of the floors for workstation access will be hardware contracted out for a price of $2000 o UPS for each server *o Provide wireless access to the internal network within the building using an 802.11ac or higher access point connected to a switch at each floor. Ko Be sure to consider the design thoroughly using all of the techniques that you have learned. Don't forget the racks and patch panels-one rack per floor. * From your discussion, create a topology diagram using Visio. Yes, Visio must be used. It's available on any perimeter PC in TC 230. *. Research hardware options for purchase, analyze options, justify recommended option with price and detailed description. You will be purchasing all hardware specified above At least two options with the exception of the workstations. Specky why 0* Research software options for purchase, analyze options, justify recommended option with price and detailed description. You will be purchasing Windows Server 2016 for at At least a opliens least 2 servers, based on your recommendation as well as purchasing licensing for 150 workstations (1/2 room for growth). Don't forget 100 copies of Windows 10 and your server backup software (if any). * Create a professional business presentation using PowerPoint to present your case. Your presentation should include your topology, a list of required resources, justification and price for each resource and a final price quote for the purchased equipment with installation. Estimate a labor cost of $2000 for the installation. At least by Researcice and de specify winky prions with t
