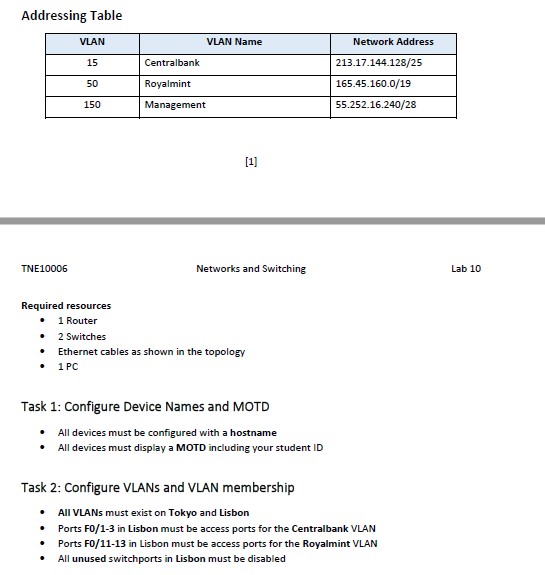

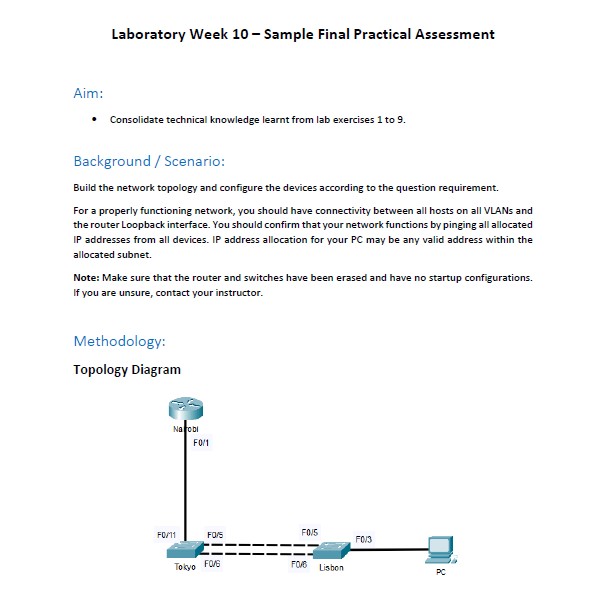

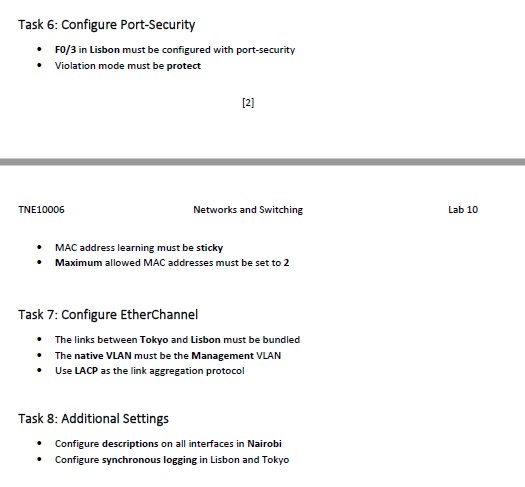

Laboratory Week 10 - Sample Final Practical Assessment Aim: . Consolidate technical knowledge learnt from lab exercises 1 to 9. Background/Scenario: Build the network topology and configure the devices according to the question requirement. For a properly functioning network, you should have connectivity between all hosts on all VLANs and the router Loopback interface. You should confirm that your network functions by pinging all allocated IP addresses from all devices. IP address allocation for your PC may be any valid address within the allocated subnet. Note: Make sure that the router and switches have been erased and have no startup configurations. If you are unsure, contact your instructor. Methodology: Topology Diagram Narobl F0/1 F0/11 FO/5 F0/5 F0/3 Tokyo FONS FOB Lisbon PC Addressing Table TNE10006 VLAN VLAN Name Network Address 15 Centralbank 50 Royalmint 150 Management 213.17.144.128/25 165.45.160.0/19 55.252.16.240/28 [1] Networks and Switching Lab 10 Required resources 1 Router 2 Switches Ethernet cables as shown in the topology 1 PC Task 1: Configure Device Names and MOTD All devices must be configured with a hostname All devices must display a MOTD including your student ID Task 2: Configure VLANS and VLAN membership All VLANs must exist on Tokyo and Lisbon Ports F0/1-3 in Lisbon must be access ports for the Centralbank VLAN Ports F0/11-13 in Lisbon must be access ports for the Royalmint VLAN All unused switchports in Lisbon must be disabled Task 3: Configure Router-on-a-Stick Nairobi must be the default gateway router for all VLANs The default gateway IP for all VLANs must be the last usable IP You must follow best practices for sub-interface ID configuration Configure Loopback0 on Nairobi with IP address 53.15.30.33/29 Task 4: Configure Switch Management The management IP on Tokyo must be the second-last usable IP The management IP on Lisbon must be the third-last usable IP Configure SSH access on Lisbon . Domain name: ccna.lab . User account details: Username: cisco, Password: cisco Task 5: Fine-tune STP Tokyo must be the root bridge for the Royalmint VLAN Lisbon must be the root bridge for the Centralbank VLAN Access ports in Lisbon must be portfast ports by default Task 6: Configure Port-Security FO/3 in Lisbon must be configured with port-security Violation mode must be protect [2] Task 6: Configure Port-Security . . FO/3 in Lisbon must be configured with port-security Violation mode must be protect TNE10006 [2] Networks and Switching Lab 10 . MAC address learning must be sticky Maximum allowed MAC addresses must be set to 2 Task 7: Configure EtherChannel The links between Tokyo and Lisbon must be bundled The native VLAN must be the Management VLAN Use LACP as the link aggregation protocol Task 8: Additional Settings Configure descriptions on all interfaces in Nairobi Configure synchronous logging in Lisbon and Tokyo
