Question

1 Approved Answer

Modify the single - cycle datapath ( page 3 / 3 ) by implementing the conditional move instruction 'MOVNZ' ( move - if - not

Modify the single-cycle datapath (page 3/3)by implementing the conditional move instruction
'MOVNZ' (move-if-not-zero). Below is the syntax. The instruction below will move St1 into $t0 if $220.
Otherwise, $ to will be set to "0".
MOVNZ $t0, $t1, $t2
This is the encoding of the instruction above:
Draw the changes on the datapath diagram and provide the values of all the control signals.

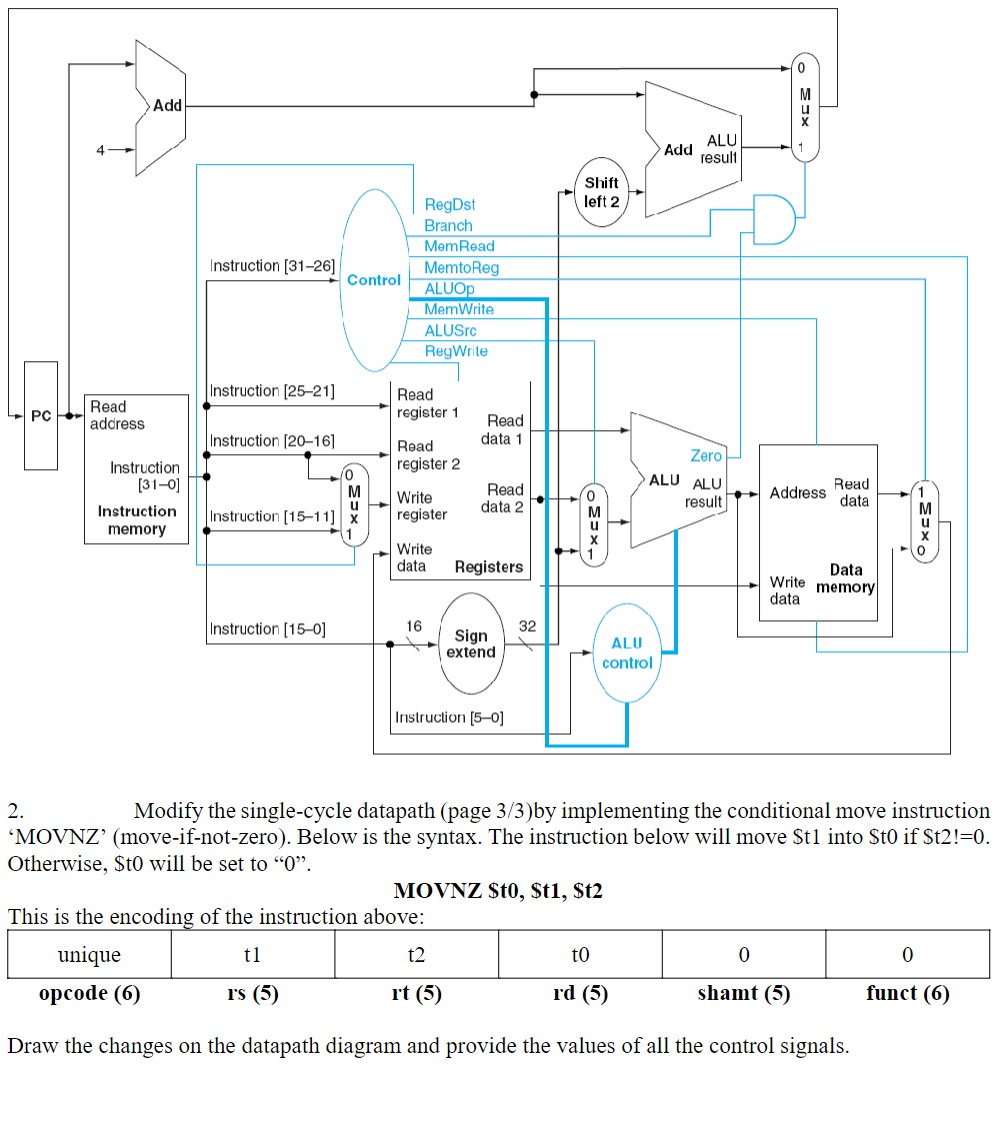

image text in transcribed

Step by Step Solution

There are 3 Steps involved in it

Step: 1
