Question

1 Approved Answer

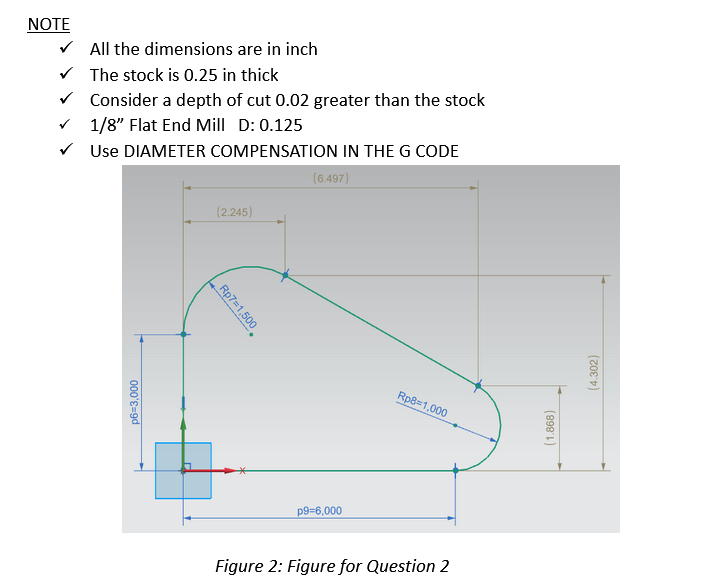

NOTE All the dimensions are in inch The stock is 0.25 in thick Consider a depth of cut 0.02 greater than the stock 1/8

image text in transcribed

NOTE All the dimensions are in inch The stock is 0.25 in thick Consider a depth of cut 0.02 greater than the stock 1/8" Flat End Mill D: 0.125 Use DIAMETER COMPENSATION IN THE G CODE (6.497) p6=3,000 (2.245) Rp7=1,500 p9=6,000 Rp8=1,000 Figure 2: Figure for Question 2 (1.868) (4.302)
