Operations Research Winston Chapter 8.7 problem 8RP

FORMULATE MCNFP DIAGRAM- this is the most important part I need help with

^^^^^^^^^^^^^^^^MOST IMPORTANT DETAIL^^^^^^^^^^^^^^^^^^^^

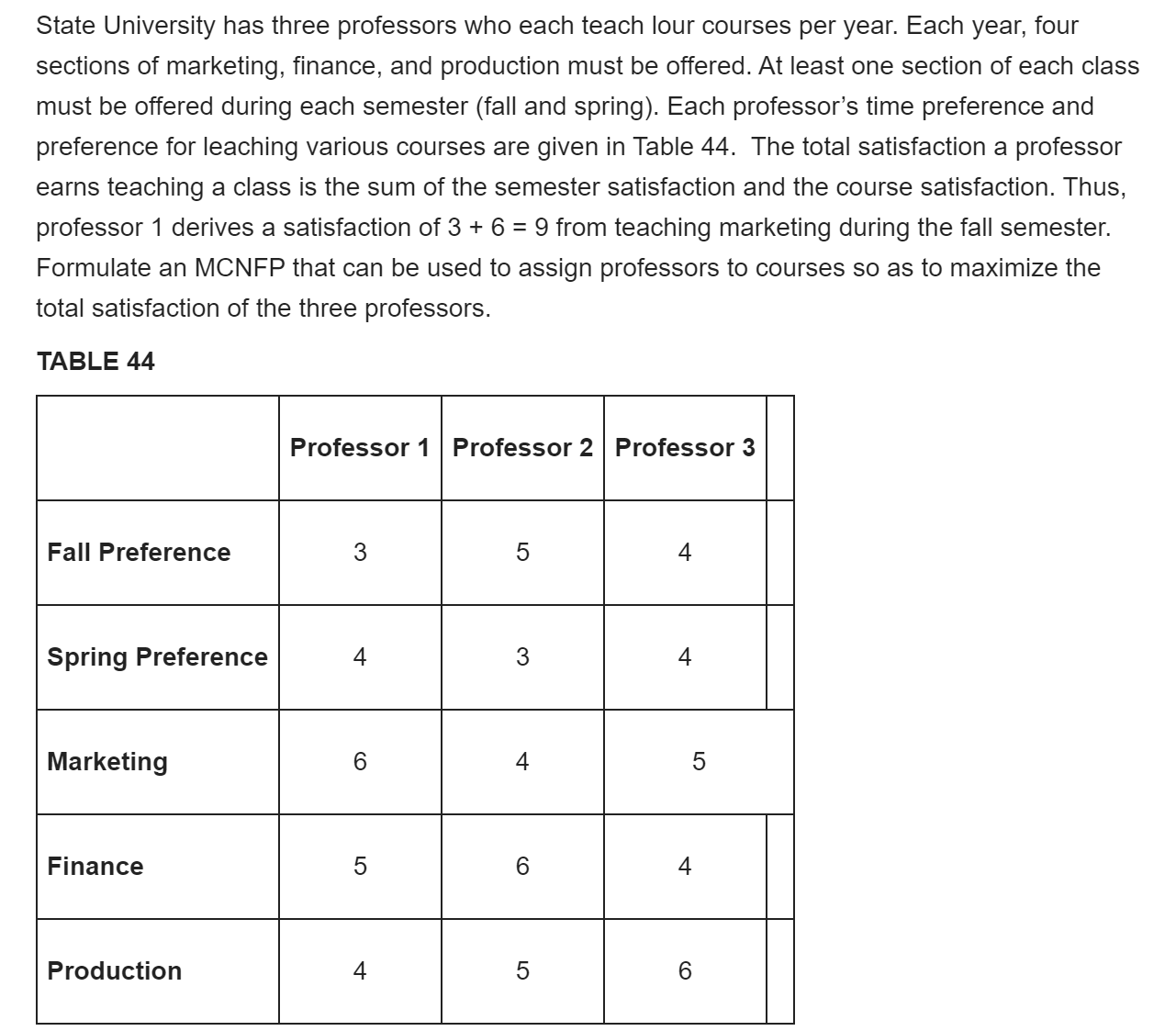

State University has three professors who each teach lour courses per year. Each year, four sections of marketing, finance, and production must be offered. At least one section of each class must be offered during each semester (fall and spring). Each professor's time preference and preference for leaching various courses are given in Table 44. The total satisfaction a professor earns teaching a class is the sum of the semester satisfaction and the course satisfaction. Thus, professor 1 derives a satisfaction of 3 + 6 = 9 from teaching marketing during the fall semester. Formulate an MCNFP that can be used to assign professors to courses so as to maximize the total satisfaction of the three professors. TABLE 44 Professor 1 Professor 2 Professor 3 Fall Preference 3 5 4 Spring Preference 4 3 4 Marketing 6 4 5 Finance 5 6 4 Production 5 6 State University has three professors who each teach lour courses per year. Each year, four sections of marketing, finance, and production must be offered. At least one section of each class must be offered during each semester (fall and spring). Each professor's time preference and preference for leaching various courses are given in Table 44. The total satisfaction a professor earns teaching a class is the sum of the semester satisfaction and the course satisfaction. Thus, professor 1 derives a satisfaction of 3 + 6 = 9 from teaching marketing during the fall semester. Formulate an MCNFP that can be used to assign professors to courses so as to maximize the total satisfaction of the three professors. TABLE 44 Professor 1 Professor 2 Professor 3 Fall Preference 3 5 4 Spring Preference 4 3 4 Marketing 6 4 5 Finance 5 6 4 Production 5 6
