Question: P 5 . The figure shown is a geared countershaft with an overhanging pinion at C . Select an 0 2 series cylindrical roller bearing

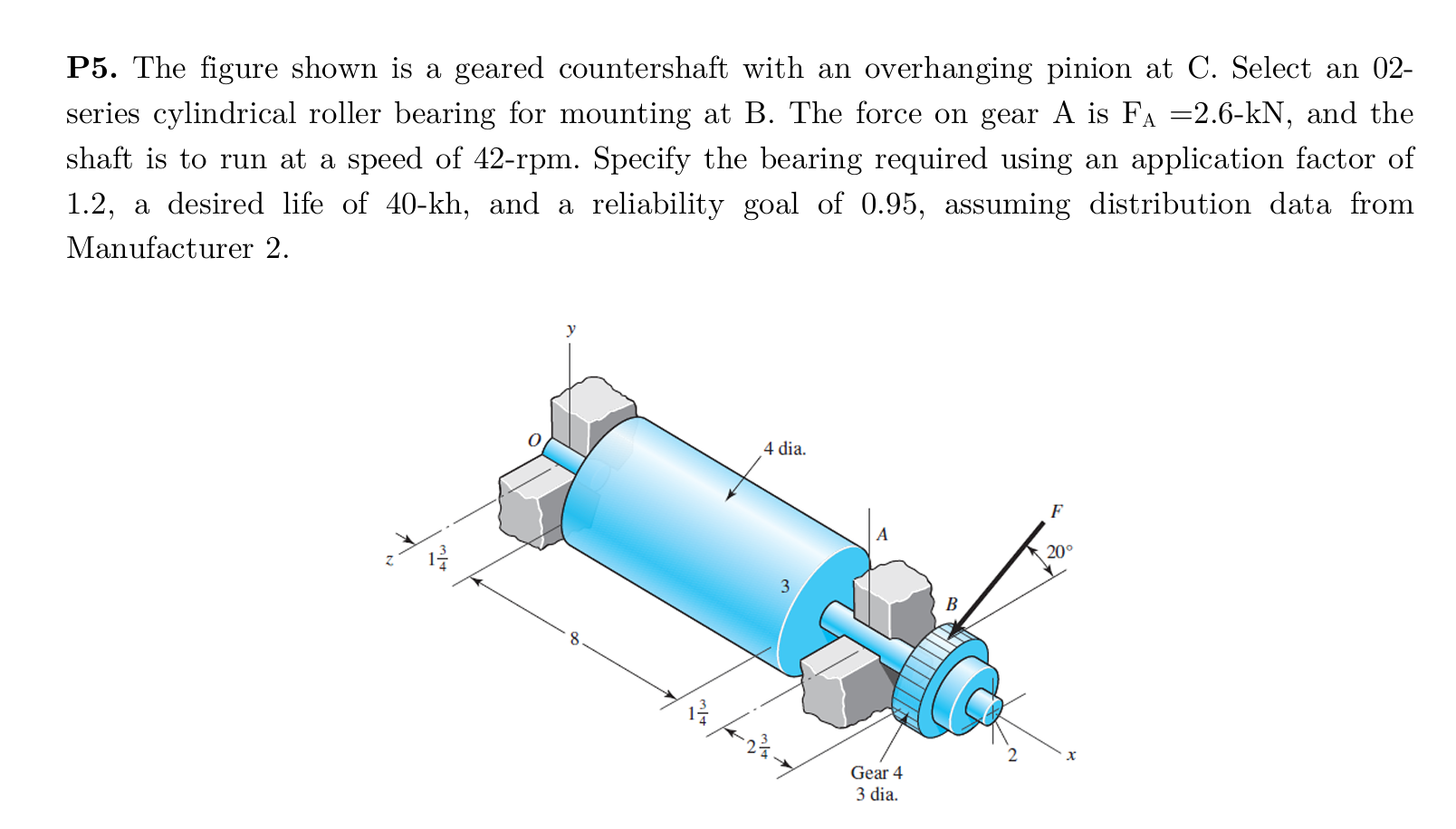

P5. The figure shown is a geared countershaft with an overhanging pinion at C. Select an 02series cylindrical roller bearing for mounting at B . The force on gear A is \(\mathrm{F}_{\mathrm{A}}=2.6-\mathrm{kN}\), and the shaft is to run at a speed of 42-rpm. Specify the bearing required using an application factor of 1.2, a desired life of \(40-\mathrm{kh}\), and a reliability goal of 0.95, assuming distribution data from Manufacturer 2.
P 5 . The figure shown is a geared countershaft

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
