Question

1 Approved Answer

Please answer question 1 and read from A - E and design an ER diagram for this application. Specify key attributes of each entity type

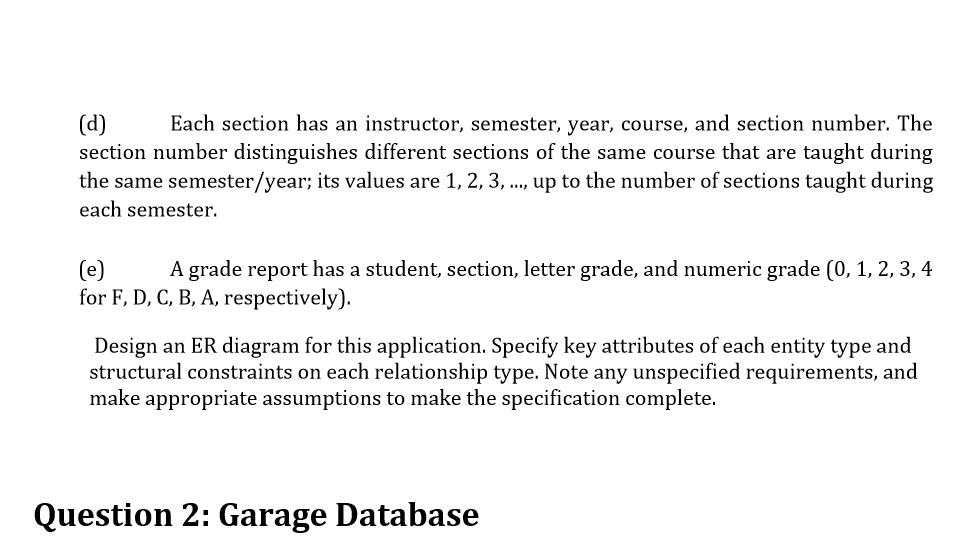

image text in transcribedimage text in transcribedPlease answer question 1 and read from A - E and design an ER diagram for this application. Specify key attributes of each entity type and structural constraints on each relationship type. Note any unspecified requirements, and make appropriate assumptions to make the specification complete.

please do this correct and make it look good and I promise to give you a thumbs up

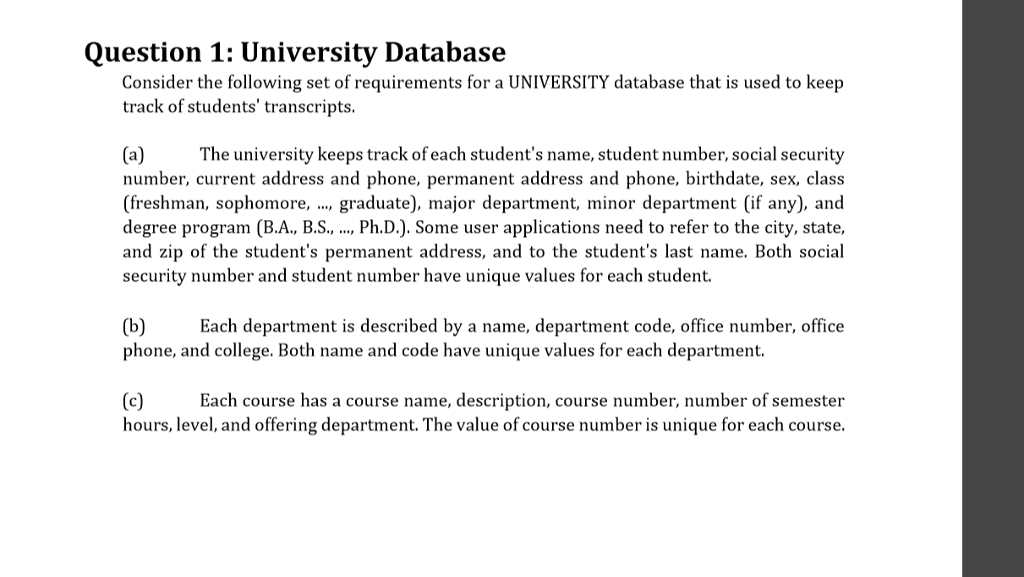

Question 1: University Database Consider the following set of requirements for a UNIVERSITY database that is used to keep track of students' transcripts. (a) The university keeps track of each student's name, student number, social security number, current address and phone, permanent address and phone, birthdate, sex, class (freshman, sophomore, .., graduate), major department, minor department (if any), and degree program (B.A., B.S.,.., Ph.D.). Some user applications need to refer to the city, state, and zip of the student's permanent address, and to the student's last name. Both social security number and student number have unique values for each student. (b) Each department is described by a name, department code, office number, office phone, and college. Both name and code have unique values for each department. (c) Each course has a course name, description, course number, number of semester hours, level, and offering department. The value of course number is unique for each course

Step by Step Solution

There are 3 Steps involved in it

Step: 1
