please complete and write clear 3.5. Explain what the accumulation term is for mole balance on a system. 3.8. Does an overspecified system of equations

please complete and write clear
image text in transcribed

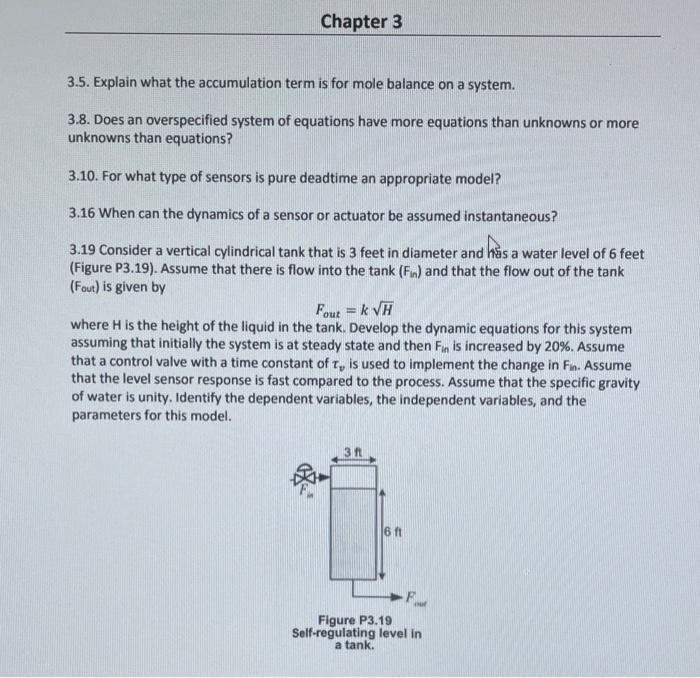

3.5. Explain what the accumulation term is for mole balance on a system. 3.8. Does an overspecified system of equations have more equations than unknowns or more unknowns than equations? 3.10. For what type of sensors is pure deadtime an appropriate model? 3.16 When can the dynamics of a sensor or actuator be assumed instantaneous? 3.19 Consider a vertical cylindrical tank that is 3 feet in diameter and has a water level of 6 feet (Figure P3.19). Assume that there is flow into the tank ( Fin ) and that the flow out of the tank (Fout) is given by Fout=kH where H is the height of the liquid in the tank. Develop the dynamic equations for this system assuming that initially the system is at steady state and then Fin is increased by 20%. Assume that a control valve with a time constant of v is used to implement the change in Fin. Assume that the level sensor response is fast compared to the process. Assume that the specific gravity of water is unity. Identify the dependent variables, the independent variables, and the parameters for this model
