please do fast The 8254 Programmable Interval Timer (PIT) has been interfaced with the 8085 microprocessor as shown in Figure Q3(d): (i) Identify the Counter

image text in transcribed

please do fast

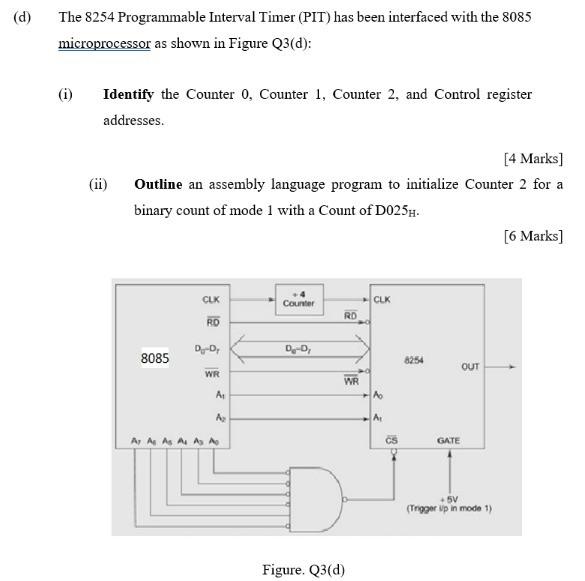

The 8254 Programmable Interval Timer (PIT) has been interfaced with the 8085 microprocessor as shown in Figure Q3(d): (i) Identify the Counter 0 , Counter 1, Counter 2 , and Control register addresses. [4 Marks] (ii) Outline an assembly language program to initialize Counter 2 for a binary count of mode 1 with a Count of D025H. [6 Marks] Figure. Q3(d)
