PLEASE DO NOT USE EXTERNAL LIBRARIES, PLEASE DO NOT USE KNOWLEDGE ENGINE/PYKE

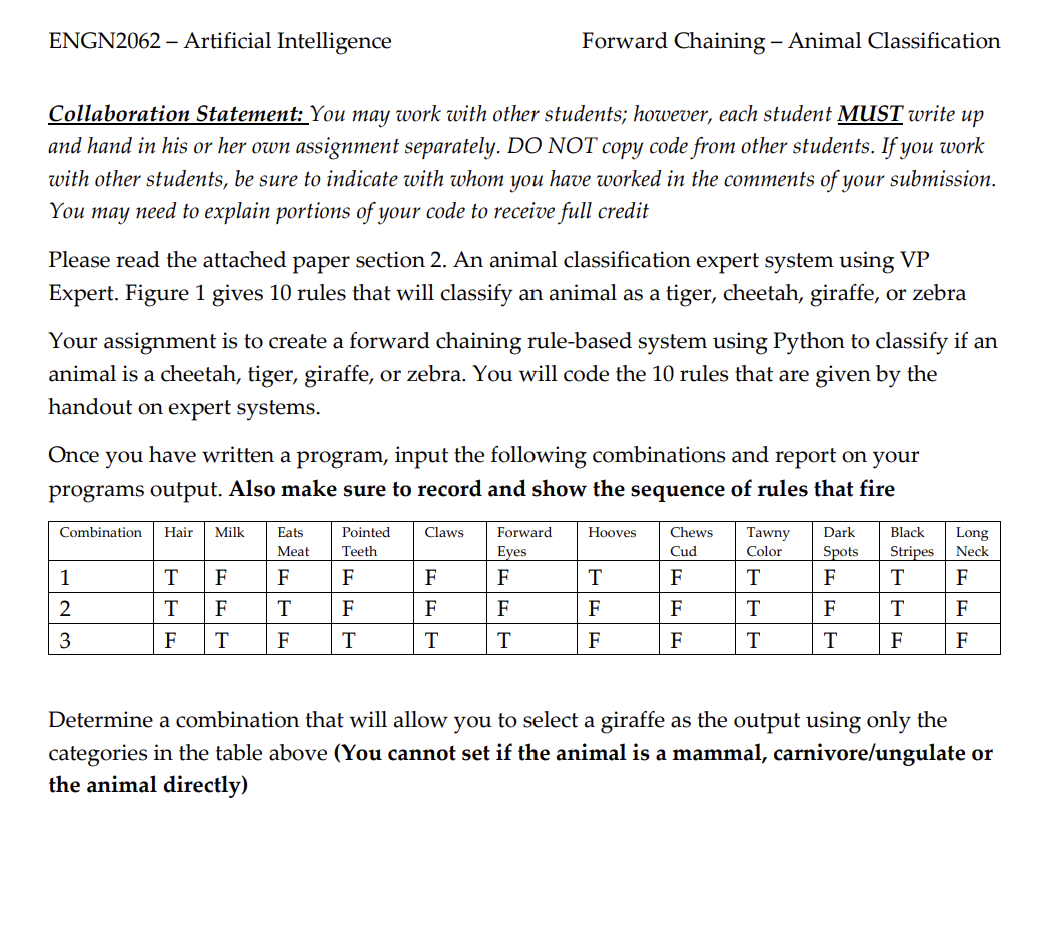

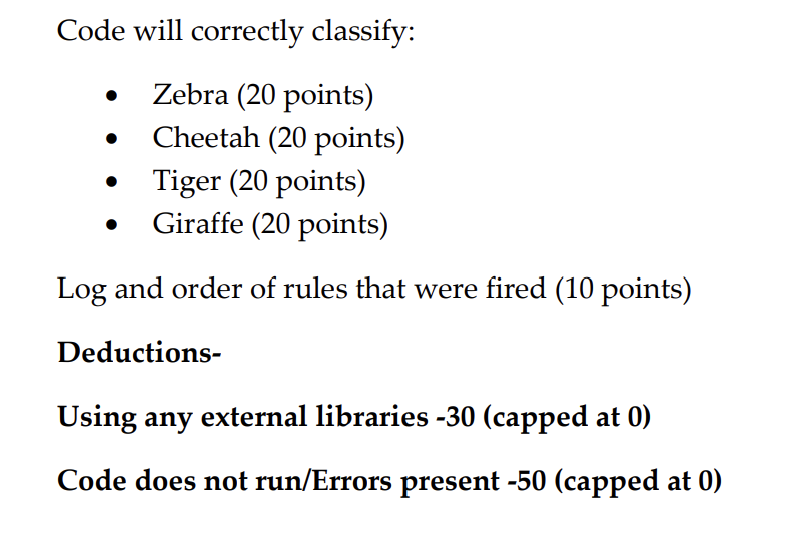

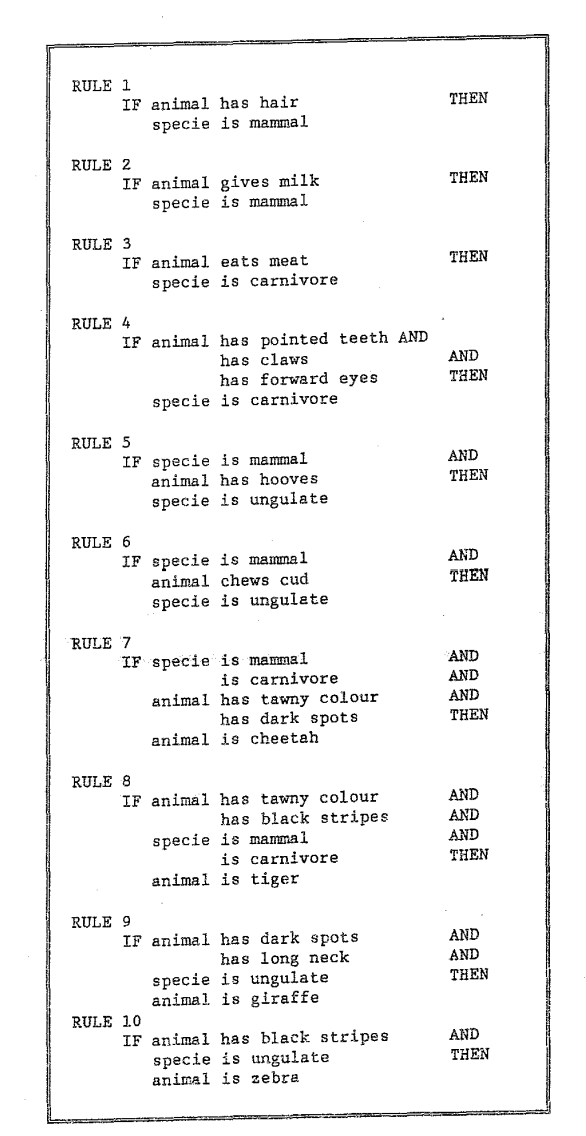

Collaboration Statement: You may work with other students; however, each student MUST write up and hand in his or her own assignment separately. DO NOT copy code from other students. If you work with other students, be sure to indicate with whom you have worked in the comments of your submission. You may need to explain portions of your code to receive full credit Please read the attached paper section 2. An animal classification expert system using VP Expert. Figure 1 gives 10 rules that will classify an animal as a tiger, cheetah, giraffe, or zebra Your assignment is to create a forward chaining rule-based system using Python to classify if an animal is a cheetah, tiger, giraffe, or zebra. You will code the 10 rules that are given by the handout on expert systems. Once you have written a program, input the following combinations and report on your programs output. Also make sure to record and show the sequence of rules that fire Determine a combination that will allow you to select a giraffe as the output using only the categories in the table above (You cannot set if the animal is a mammal, carnivore/ungulate or the animal directly) Code will correctly classify: - Zebra (20 points) - Cheetah (20 points) - Tiger (20 points) - Giraffe (20 points) Log and order of rules that were fired (10 points) Deductions- Using any external libraries -30 (capped at 0 ) Code does not run/Errors present 50 (capped at 0 ) Animal Classification Example Press any key to start the consultation Does the animal have hair? Yes Does the animal have a tawny colour? Hoes the animal have dark spots? Yes Does the animal have a long neck? Yes Does the animal have hooves ? Yes Your animal may be a Giraffe Press any key to continue
