Please explain the steps. (11%) Problem 5: A circuit made up of 6 resistors is shown in the figure, with resistances R1 = 18 2,

Please explain the steps.

image text in transcribed

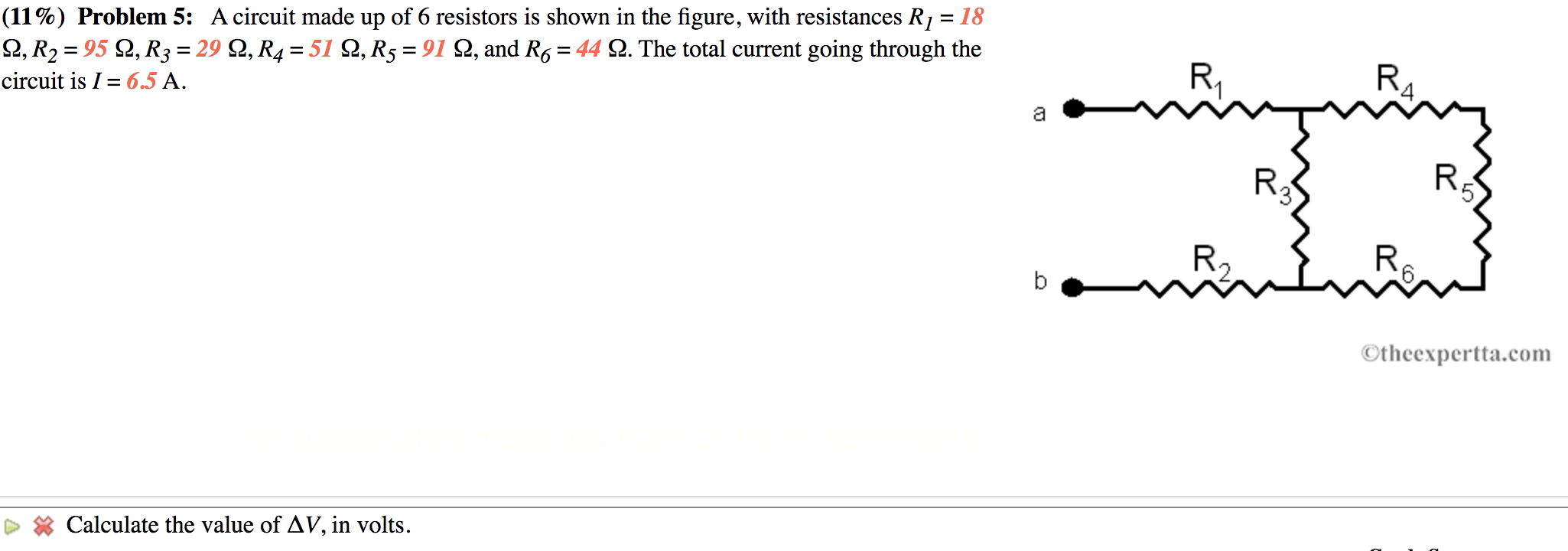

(11%) Problem 5: A circuit made up of 6 resistors is shown in the figure, with resistances R1 = 18 2, R2 = 95 2, R3 = 29 2, R4 = 51 9, R5 = 91 2, and R6 = 44 2. The total current going through the circuit is I = 6.5 A. R RA a R 2 R b Otheexpertta.com Calculate the value of AV, in volts
