Please help me understand how my professor plugged in his values. Whenever I try I do not get the same answer. Problem 9: A simple

Please help me understand how my professor plugged in his values. Whenever I try I do not get the same answer.

image text in transcribed

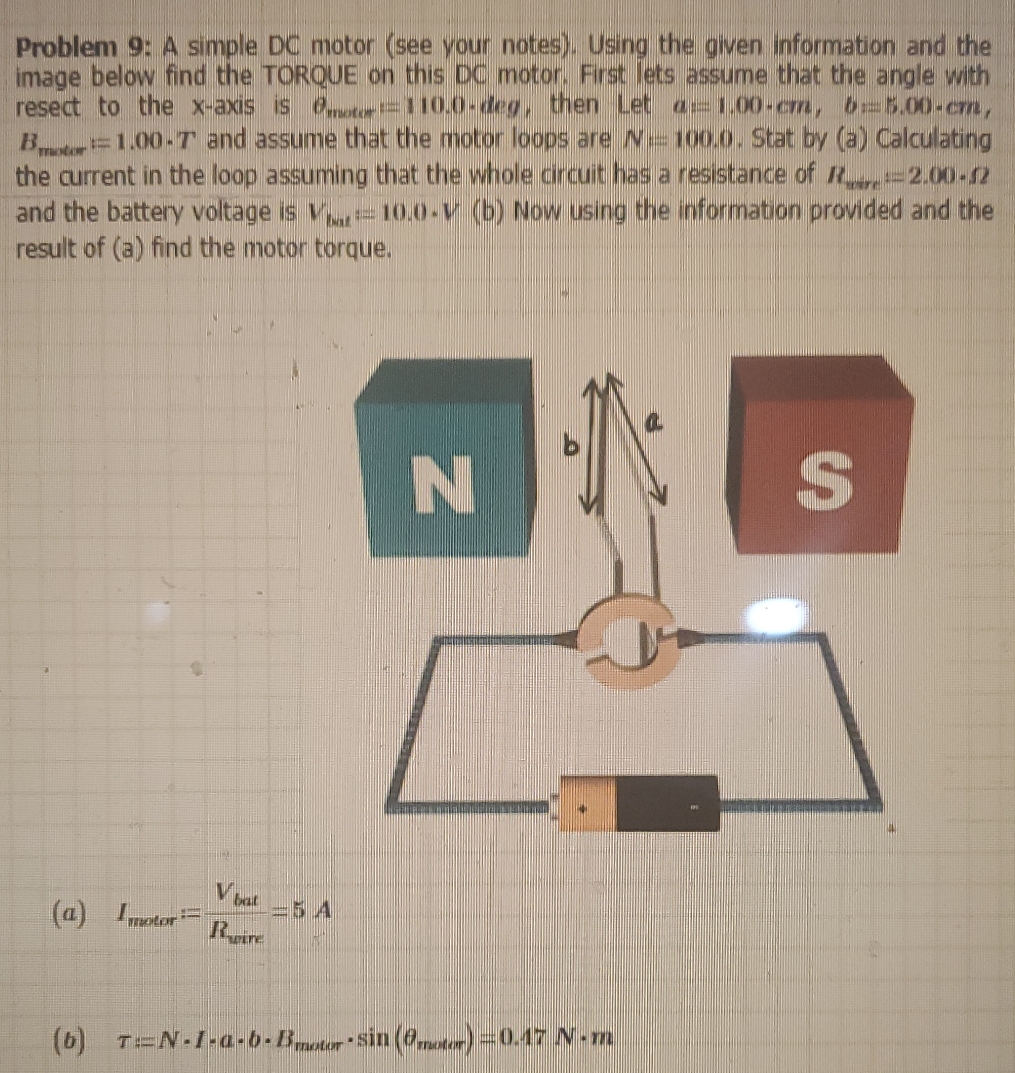

Problem 9: A simple DC motor (see your notes). Using the given information and the image below find the TORQUE on this DC motor, First lets assume that the angle with resect to the x-axis is 6.=1 10.0. dey, then Let Q:=1.00-cr, b=5.00-cm, B.=1.00-T and assume that the motor loops are /V 100.0. Stat by (a) Calculating the current in the loop assuming that the whole circuit has a resistance of R., -2.00-52 and the battery voltage is V..,, :_ 10.0-V (b) Now using the information provided and the result of (a) find the motor torque. N S V bat (a) Imotor Rare (b) TEN- 1 - a -6- Hmotor - Sil (8) - 0.17 N-m
