PLEASE SIMULATE ACTIVITY 2 3.2 Spice Assignment Using the student version of PSPICE simulate all lab activities. The Spice assignment should include the following for
PLEASE SIMULATE ACTIVITY 2

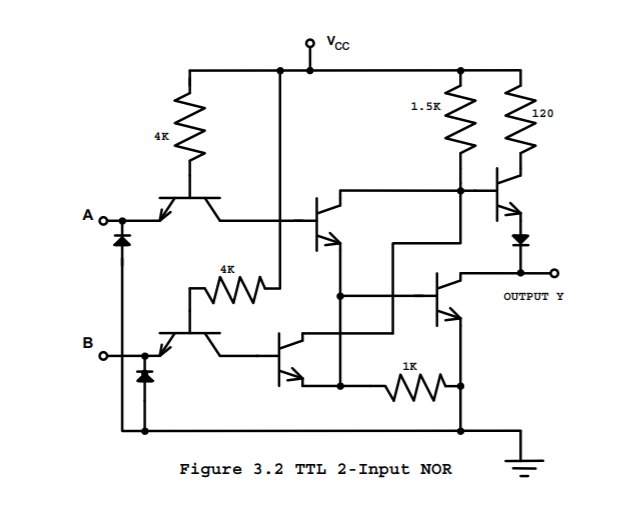

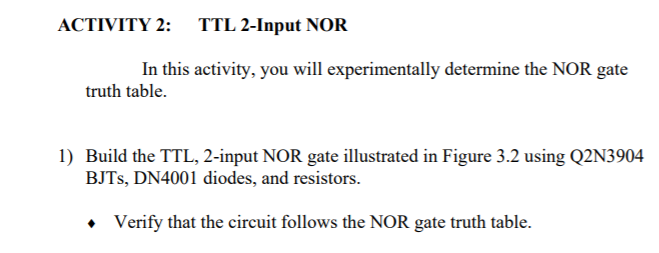

3.2 Spice Assignment Using the student version of PSPICE simulate all lab activities. The Spice assignment should include the following for each activity: Circuit drawings with the nodes labeled Spice circuit files . DC node voltages from the Spice output file Input and output square wave plots for all activities similar to the PSPICE example . VTCs for Activities 1, 3, and 4 ACTIVITY 2: TTL 2-Input NOR In this activity, you will experimentally determine the NOR gate truth table. 1) Build the TTL, 2-input NOR gate illustrated in Figure 3.2 using Q2N3904 BJTs, DN4001 diodes, and resistors. Verify that the circuit follows the NOR gate truth table. * 1.5K120 4K 4K OUTPUT Y 1K Figure 3.2 TTL 2-Input NOR 3.2 Spice Assignment Using the student version of PSPICE simulate all lab activities. The Spice assignment should include the following for each activity: Circuit drawings with the nodes labeled Spice circuit files . DC node voltages from the Spice output file Input and output square wave plots for all activities similar to the PSPICE example . VTCs for Activities 1, 3, and 4 ACTIVITY 2: TTL 2-Input NOR In this activity, you will experimentally determine the NOR gate truth table. 1) Build the TTL, 2-input NOR gate illustrated in Figure 3.2 using Q2N3904 BJTs, DN4001 diodes, and resistors. Verify that the circuit follows the NOR gate truth table. * 1.5K120 4K 4K OUTPUT Y 1K Figure 3.2 TTL 2-Input NORStep by Step Solution
There are 3 Steps involved in it
Step: 1
