Please solve all the problems 1. Fill in the truth table for the following circuit. Note that this circuit is using NOT, XOR, NOR, NAND,

Please solve all the problems

image text in transcribed

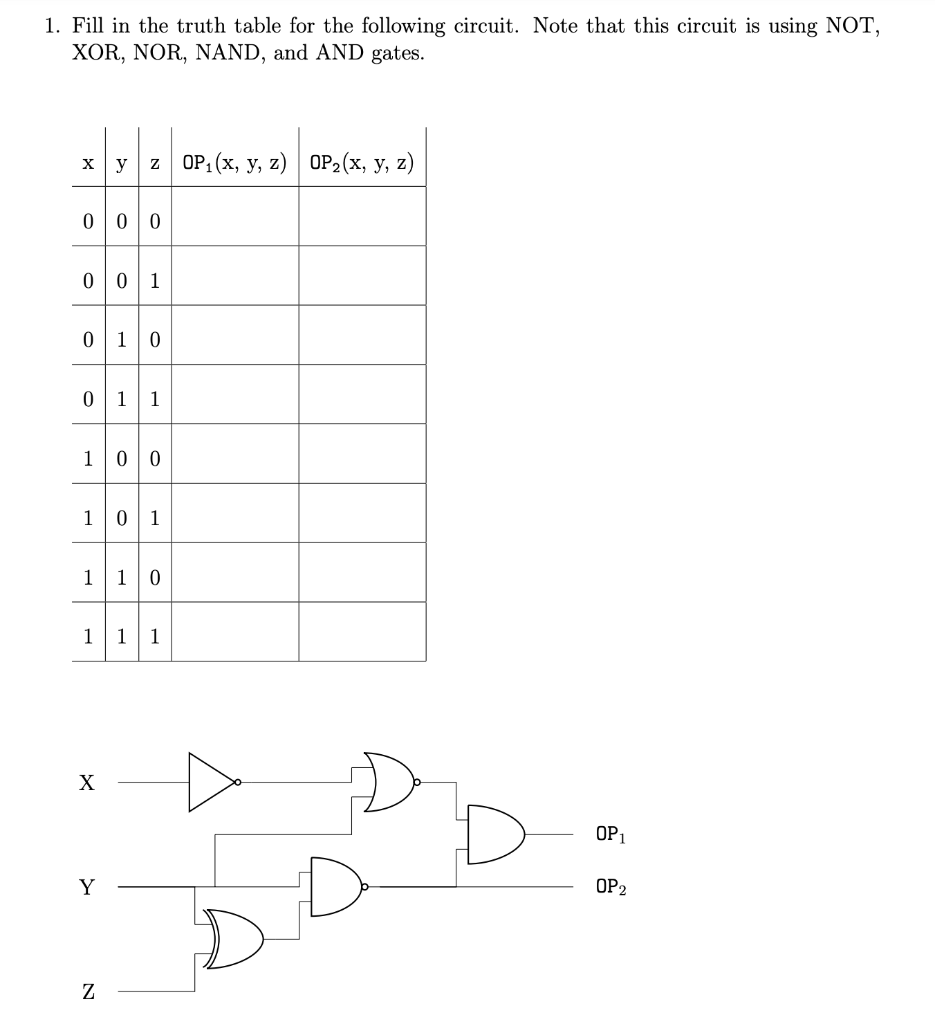

1. Fill in the truth table for the following circuit. Note that this circuit is using NOT, XOR, NOR, NAND, and AND gates

Step by Step Solution

There are 3 Steps involved in it

Step: 1
