Please solve it correctly and make it so clear and summarize it thank you 1. For the adder in Figure 1 below (a) Get the

image text in transcribed

image text in transcribed

Please solve it correctly and make it so clear and summarize it thank you

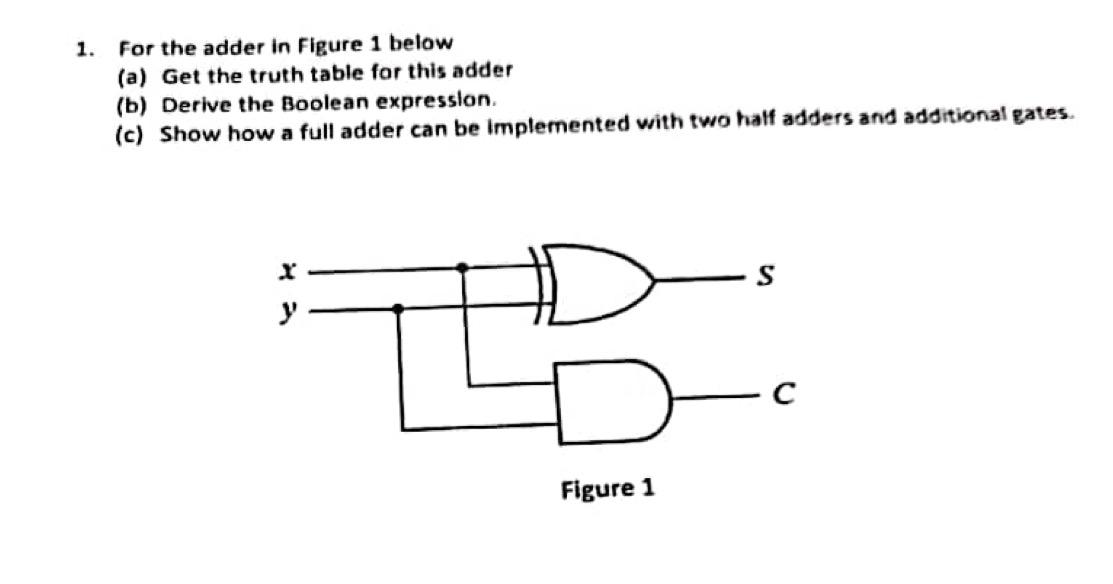

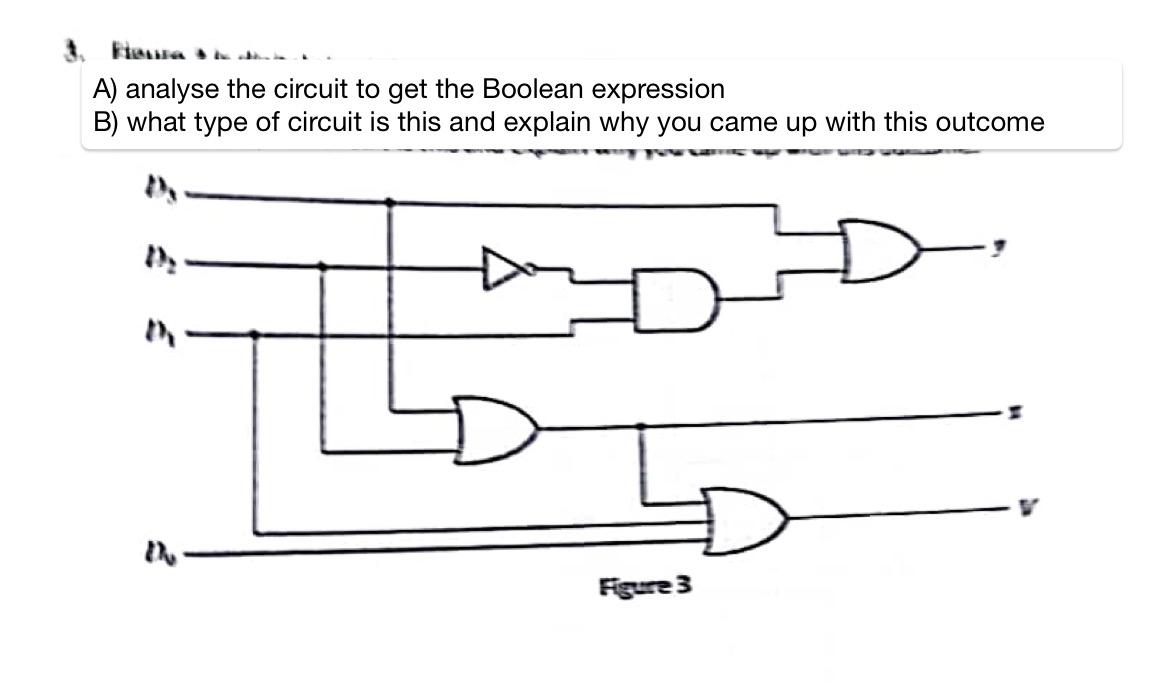

1. For the adder in Figure 1 below (a) Get the truth table for this adder (b) Derive the Boolean expression. (c) Show how a full adder can be implemented with two half adders and additional gates. B) what type of circuit is this and explain why you came up with this outcome
