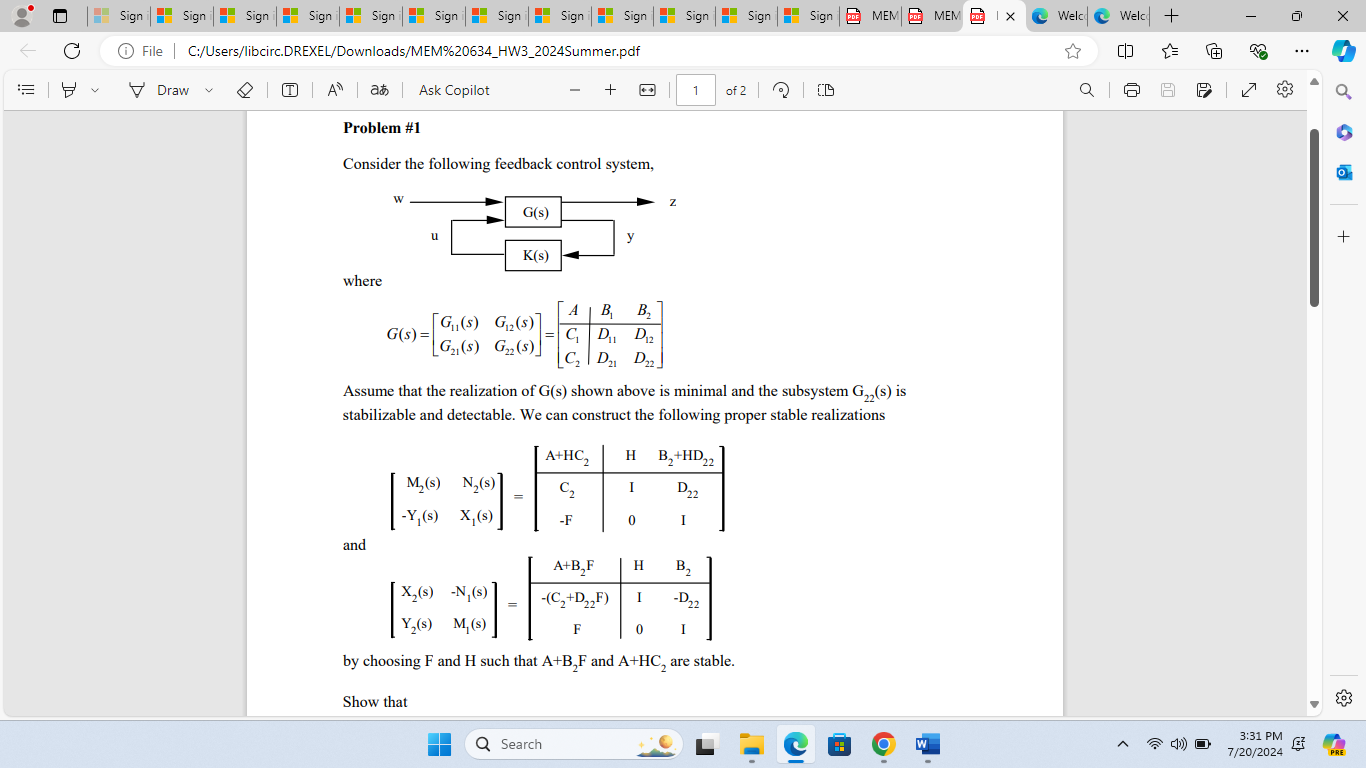

Problem # 1 [ M 2 ( s ) N 2 ( s ) - Y 1 ( s ) x 1 ( s )

Problem #1[M2(s)N2(s)-Y1(s)x1(s)]=[A+HC2HB2+HD22C2ID22-F0I]
and
by choosing F and H such that A+B2F and A+HC2 are stable.
Show that
[M2(s)N2(s)-Y1(s)x1(s)][x2(s)-N1(s)Y2(s)M1(s)]=[I00I]
and
M2(s)-1N2(s)=G22(s) Problem #2
With Youla's controller parametrization, the feedback control system block diagram in
Problem#1 can be redrawn as the following
Find the closed-loop transfer function of the system using linear fractional transformation based
on T(s) and Q(s).
Show that T22(s)=0 and explain why this equality is a significant feature of Youla's controller
parametrization.
Consider the following feedback control system,
wh...
G(s)=[G11(s)G12(s)G21(s)G22(s)]=[AB1B2C1D11D12C2D21D22]
Assume that the realization of G(s) shown above is minimal and the subsystem G22(s) is
stabilizable and detectable. We can construct the following proper stable realizations
[M2(s)N2(s)-Y1(s)x1(s)]=[A+HC2HB2+HD22C2ID22-F0I]
and
[x2(s)-N1(s)Y2(s)M1(s)]=[A+B2FHB2-(C2+D22(F))I-D22F0I]
by choosing F and H such that A+B2F and A+HC2 are stable.
Show that
image text in transcribed
