Q1: Consider the following MIPS assembly language code: Draw the pipeline diagram (complete the table below) showing the timing of the code instructions on the

image text in transcribed

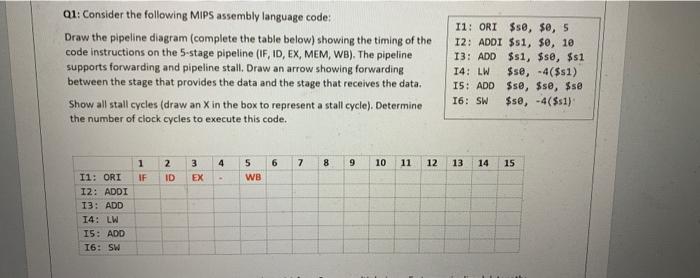

Q1: Consider the following MIPS assembly language code: Draw the pipeline diagram (complete the table below) showing the timing of the code instructions on the 5-stage pipeline (IF, ID, EX, MEM, WB). The pipeline supports forwarding and pipeline stall. Draw an arrow showing forwarding between the stage that provides the data and the stage that receives the data. Show all stall cycles (draw an X in the box to represent a stall cycle). Determine the number of clock cycles to execute this code
