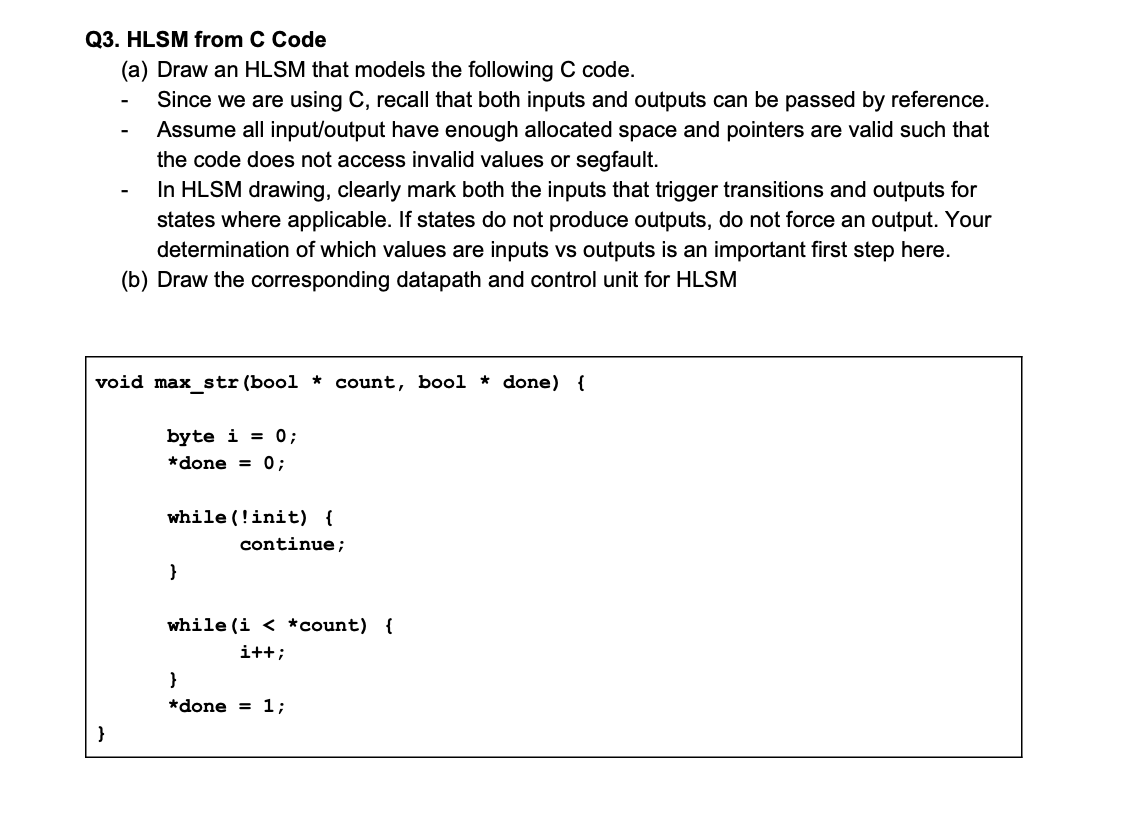

Q3. HLSM from C Code (a) Draw an HLSM that models the following C code. Since we are using C, recall that both inputs and outputs can be passed by reference. - Assume all input/output have enough allocated space and pointers are valid such that the code does not access invalid values or segfault. In HLSM drawing, clearly mark both the inputs that trigger transitions and outputs for states where applicable. If states do not produce outputs, do not force an output. Your determination of which values are inputs vs outputs is an important first step here. (b) Draw the corresponding datapath and control unit for HLSM void max_str(bool * count, bool * done) { byte i = 0; *done = 0; while (!init) { continue; while (i
