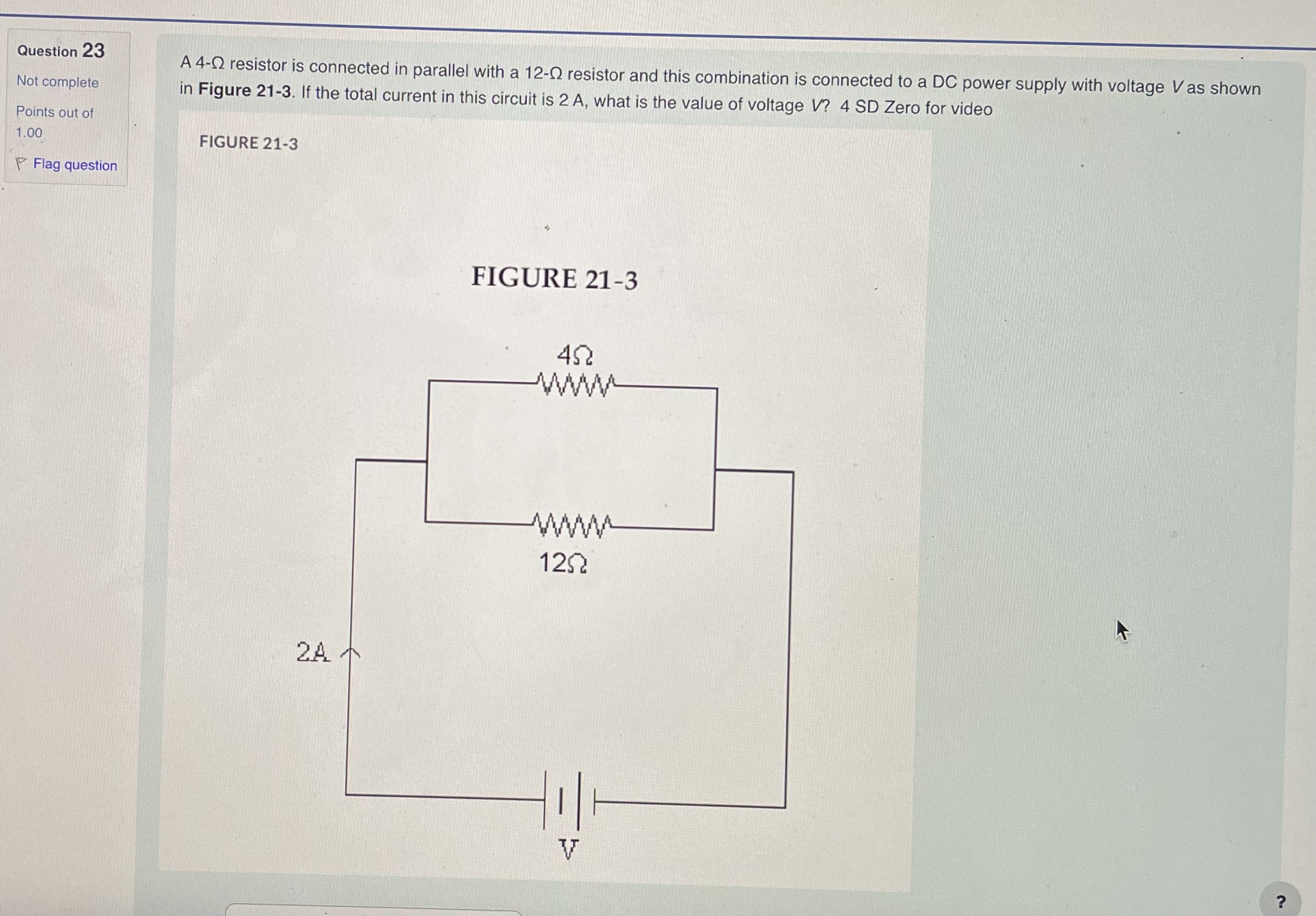

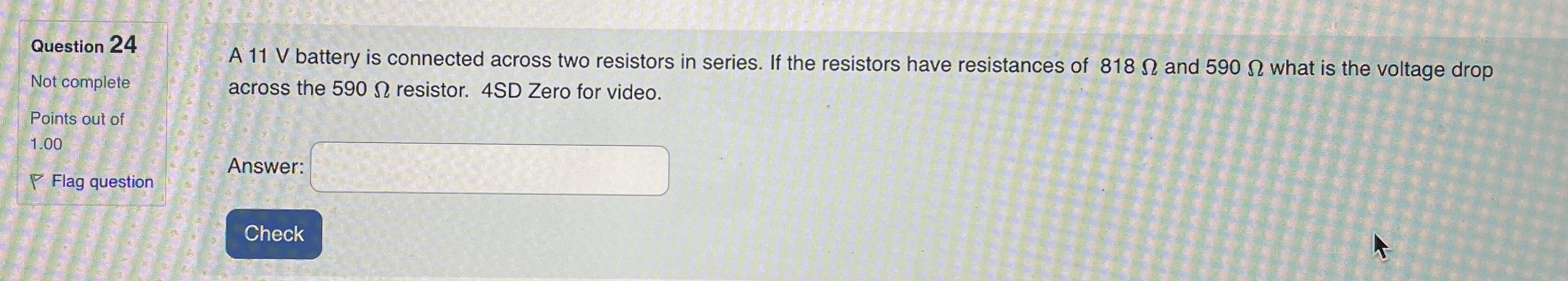

Question 24 A 11 V battery is connected across two resistors in series. If the resistors have resistances of 818 $2 and 590 & what is the voltage drop Not complete across the 590 0 resistor. 4SD Zero for video. Points out of 1.00 Answer: Flag question CheckQuestion 23 A 4- resistor is connected in parallel with a 12- resistor and this combination is connected to a DC power supply with voltage V as shown Not complete in Figure 21-3. If the total current in this circuit is 2 A, what is the value of voltage V? 4 SD Zero for video Points out of 1.00 FIGURE 21-3 Flag question FIGURE 21-3 452 1252Question 22 A 100 V DC signal is applied to four resistors as shown in Figure 21-4. The values of the resistors are 20 0, 40 02, 60 0, and 80 0. Not complete Points out of What is the voltage across the 40 2 resistor? 4SD Zero for Video. 1.00 FIGURE 21-4 Flag question 202 6052 8052 100V Answer: CheckQuestion 15 A number of resistors are connected across points A and B as shown in the figure. The voltage between A and B is 22 V. What is the Power Not complete that is being used by the highlighted resistor, in Watts? Points out of 1.00 252 252 Flag question WWW WWWw 652 WWW 452 BO 202 252 20 Answer: CheckQuestion 14 A number of resistors are connected across points A and B as shown in the figure. The voltage between A and B is 41 V. What is voltage Not complete drop (in Volts) across the highlighted resistor? 4 SD Zero for video. Points out of 1.00 252 252 252 Flag question 652 452 B . WWWWW 20 252 20 Answer: Check
