Question

1 Approved Answer

Question 32 7 pts Figure 1 shows the experiment setup of a simple RL circuit. Figure 2 and Figure 3 are Capstone experiment data of

image text in transcribed

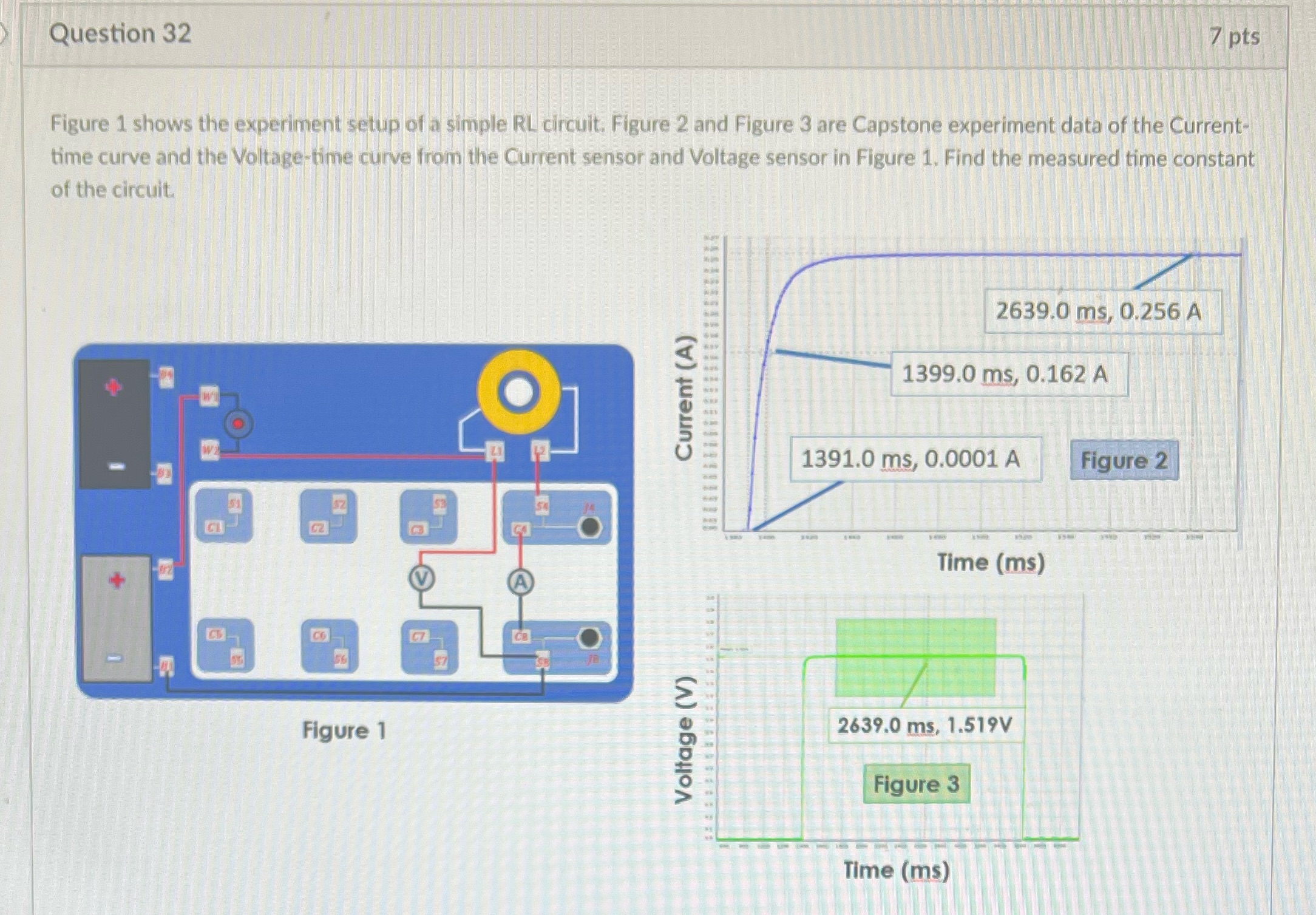

Question 32 7 pts Figure 1 shows the experiment setup of a simple RL circuit. Figure 2 and Figure 3 are Capstone experiment data of the Current- time curve and the Voltage-time curve from the Current sensor and Voltage sensor in Figure 1. Find the measured time constant of the circuit. 2639.0 ms, 0.256 A 1399.0 ms, 0.162 A O Current (A) O 14 1391.0 ms, 0.0001 A Figure 2 CZ Time (ms) CO C7 Figure 1 2639.0 ms, 1.519V Voltage (V) Figure 3 Time (ms)

Step by Step Solution

There are 3 Steps involved in it

Step: 1
