Question I: ( 2 . 5 Marks ) Consider the following block diagram With: G ( s ) = 1 s ( s + 2

Question I:
(2.5 Marks)

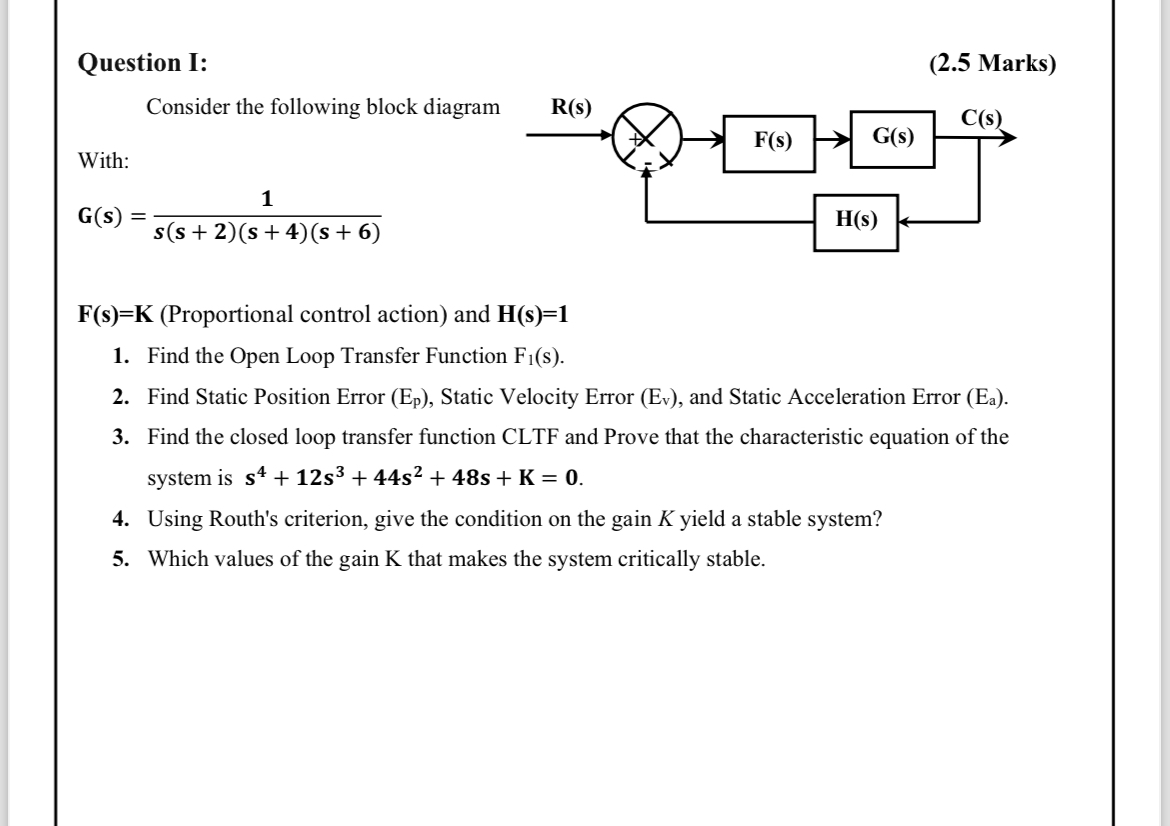

Consider the following block diagram
With:
G(s)=1s(s+2)(s+4)(s+6)
F(s)=K(Proportional control action) and H(s)=1
Find the Open Loop Transfer Function F1(s).
Find Static Position Error (Ep), Static Velocity Error (Ev), and Static Acceleration Error (Ea).
Find the closed loop transfer function CLTF and Prove that the characteristic equation of the system is s4+12s3+44s2+48s+K=0.
Using Routh's criterion, give the condition on the gain K yield a stable system?
Which values of the gain K that makes the system critically stable.I hope the solution is on paper with details.
image text in transcribed
