solve step by step don't provide other sourse answer Wa C D OF Aft B Ma 3 ft 3ft 3 ft 3 ft A frame

image text in transcribed

solve step by step don't provide other sourse answer

image text in transcribed

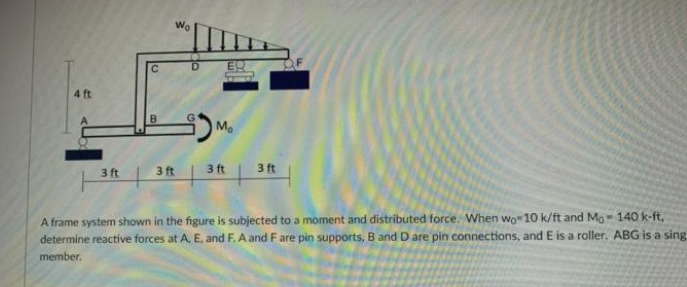

Wa C D OF Aft B Ma 3 ft 3ft 3 ft 3 ft A frame system shown in the figure is subjected to a moment and distributed force. When wo-10 k/ft and Mo - 140 k-ft. determine reactive forces at A, E, and F. A and F are pin supports, B and D are pin connections, and E is a roller. ABG is a sing member

Step by Step Solution

There are 3 Steps involved in it

Step: 1
