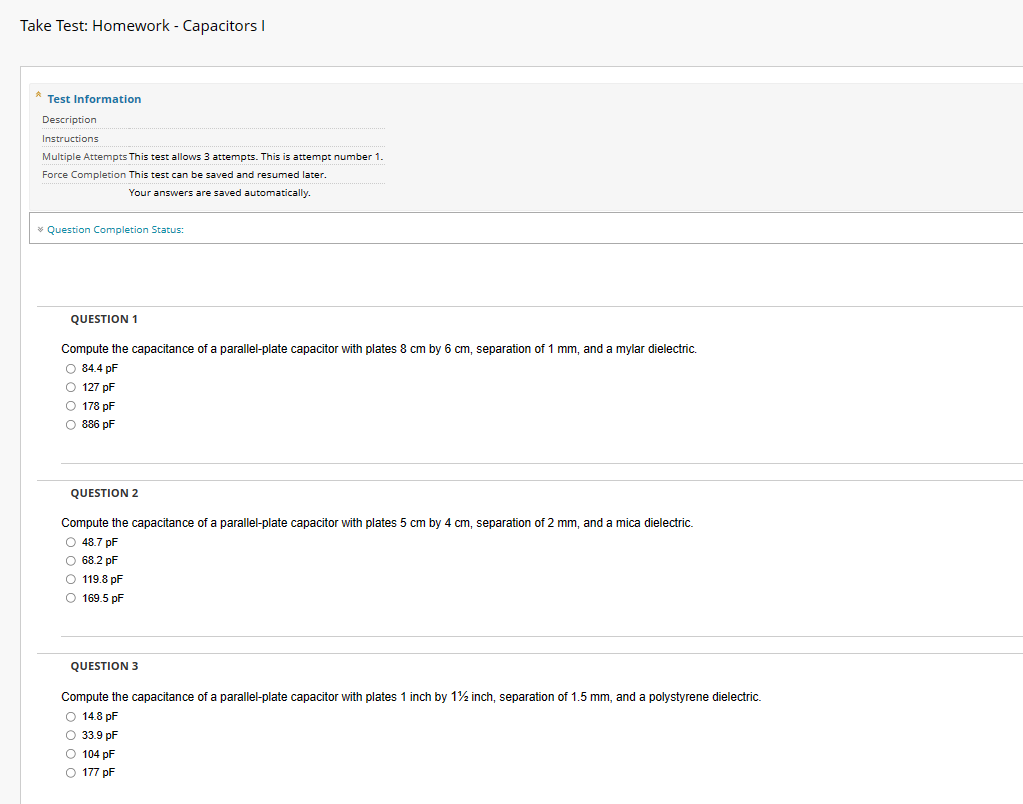

Take Test: Homework - Capacitors | " Test Infermation Description Instructions Multiple Attempis This test allows 3 attempts. This is attempt number 1. Force Completion This test can be saved and resumed later. Your answers are saved automatically. # Question Completion Status: QUESTION 1 Compute the capacitance of a paraliel-plate capacitor with plates & cm by 6 cm, separation of 1 mm, and a mylar dielectric. ) 84.4pF ) 127 pF ) 178 pF () 886 pF QUESTION 2 Compute the capacitance of a parallel-plate capacitor with plates 5 cm by 4 cm, separafion of 2 mm, and a mica dielectric. ) 487 pF ) 682 pF ) 119.8 pF ) 1695 pF QUESTION 3 Compute the capacitance of a paraliel-plate capacitor with plates 1 inch by 1% inch, separation of 1.5 mm, and a polystyrene dielectric. 148 pF ) 339pF ) 104 pF 1 177 pF QUESTION 4 Compute the capacitance of a parallel-plate capacitor with plates 2 inches by 3%z inches, separation of 1/64 inch, and a paper diglectric. ) 828pF ) 133.9pF 1804 pF 2217 pF QUESTION 5 Compute the capacitance of a parallel-plate capacitor with round plates with a diameter of 3 inches, separation of 0.5 mm, and an air dieleciric. O 93pF 148 pF ) 86.5pF ) 80.7 pF QUESTION & Compute the capacitance of a parallel-plate capacitor with round plates with a diameter of 8 cm, separation of 1 mm, and an oil dielectric. ) 69.3pF O 1142 pF ) 178.0 pF ) 280.7 pF QUESTION 7 A 150 pF capacitor has plates 3 cm by 3 cm and a mylar dieleciric. Determine the distance between the plates. 018 mm 0 0.25 mm 1.2 mm 0 25mm QUESTION 8 Compute the capacitance of a parallel-plate capacitor with plates 12 cm by 15 cm, separation of 3 mm, and a teflon dielectric. ) 527 pF O 682 pF O 1M.6pF 1819 pF QUESTION 9 A 12.89 pF capacitor has plates 7 cm by & cm and a polystyrene dieleciric. Determine the distance between the plates. 0.76 mm 0 2.45 mm 6.23 mm 0 10.0 mm QUESTION 10 A.29.75 pF capacitor has plates separated by 1 mm and a feflon dielectric. Determine the area of the plates. \" 9.4x 104 m? Y 16x109 m? 35%x107 m? \" 95%x102 m
