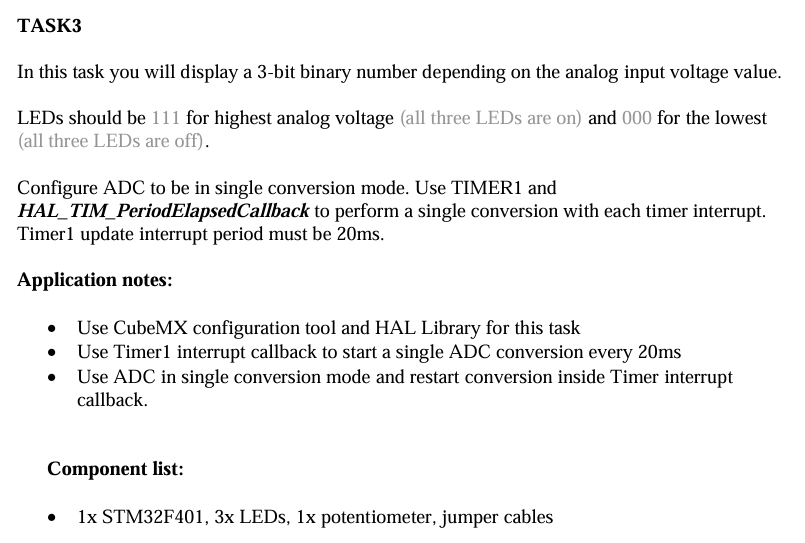

TASK 3 In this task you will display a 3 - bit binary number depending on the analog input voltage value. LEDs should be 1

TASK3
In this task you will display a 3-bit binary number depending on the analog input voltage value.
LEDs should be 111 for highest analog voltage (all three LEDs are on) and 000 for the lowest
(all three LEDs are off).
Configure ADC to be in single conversion mode. Use TIMER1 and
HAL_TIM_PeriodElapsedCallback to perform a single conversion with each timer interrupt.
Timer1 update interrupt period must be 20ms.
Application notes:
Use CubeMX configuration tool and HAL Library for this task
Use Timer1 interrupt callback to start a single ADC conversion every 20ms
Use ADC in single conversion mode and restart conversion inside Timer interrupt
callback.
Component list:
1x STM32F401,3x LEDs, 1x potentiometer, jumper cables
image text in transcribed
