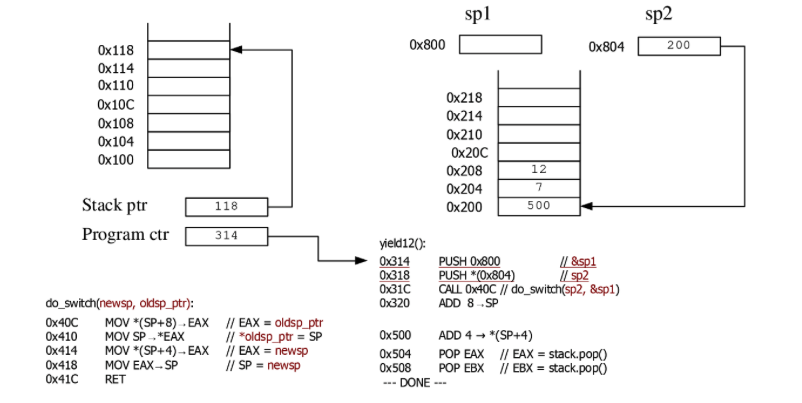

The following diagram shows stacks, variables, and code for two threads that switch via the yield$12()$ function. The code is written in CSx$600$ assembly language.$$sp$1$ and$$sp$2$ are the saved respective stack pointers for the two threads.

Assumptions & Clarifications

$*$ All instructions and data are assumed to be $4$ bytes

$*$ PUSH X is equivalent to $*(--$SP$)=$ X $($pre$-$decrement$)$

$*$ POP X is equivalent to X $=*($SP$++)($post$-$increment$)$

$*$ CALL X is a single instruction equivalent to PUSH PC$+4,$ JMP X

$*$ RET is equivalent to POP PC

Starting with the stack pointer and program counter given above, the CPU will execute instructions until it reaches $---$DONE$---$ with PC$=0$x$50$C$.$

Deliverable

For each of the instructions, give the following information:

$1.$ Instruction address, i$.$e$.,$ the value of the program counter $[$PC$]$

$2.$ The instruction at that address, i$.$e$.,$MOV SP $->*$EAX$)$

$3.$ Identify any registers or memory locations $($give the specific addresses$)$ that are modified by that instruction, and provide their new contents.

$4.$ For any control flow instructions $($JMP$,$ CALL, RET$)$ give the destination address, i$.$e$.,0$x$704,$ RET: jump to $0$x$940,$ SP changes from $0$x$11$FC to $0$x$1200$

As an example, here's what the deliverable looks like for the first instruction:

$1.314$

$2.$ "PUSH $0$x$800"$

$3.114->$SP$,318->$PC$,0$x$800->*0$x$114$
